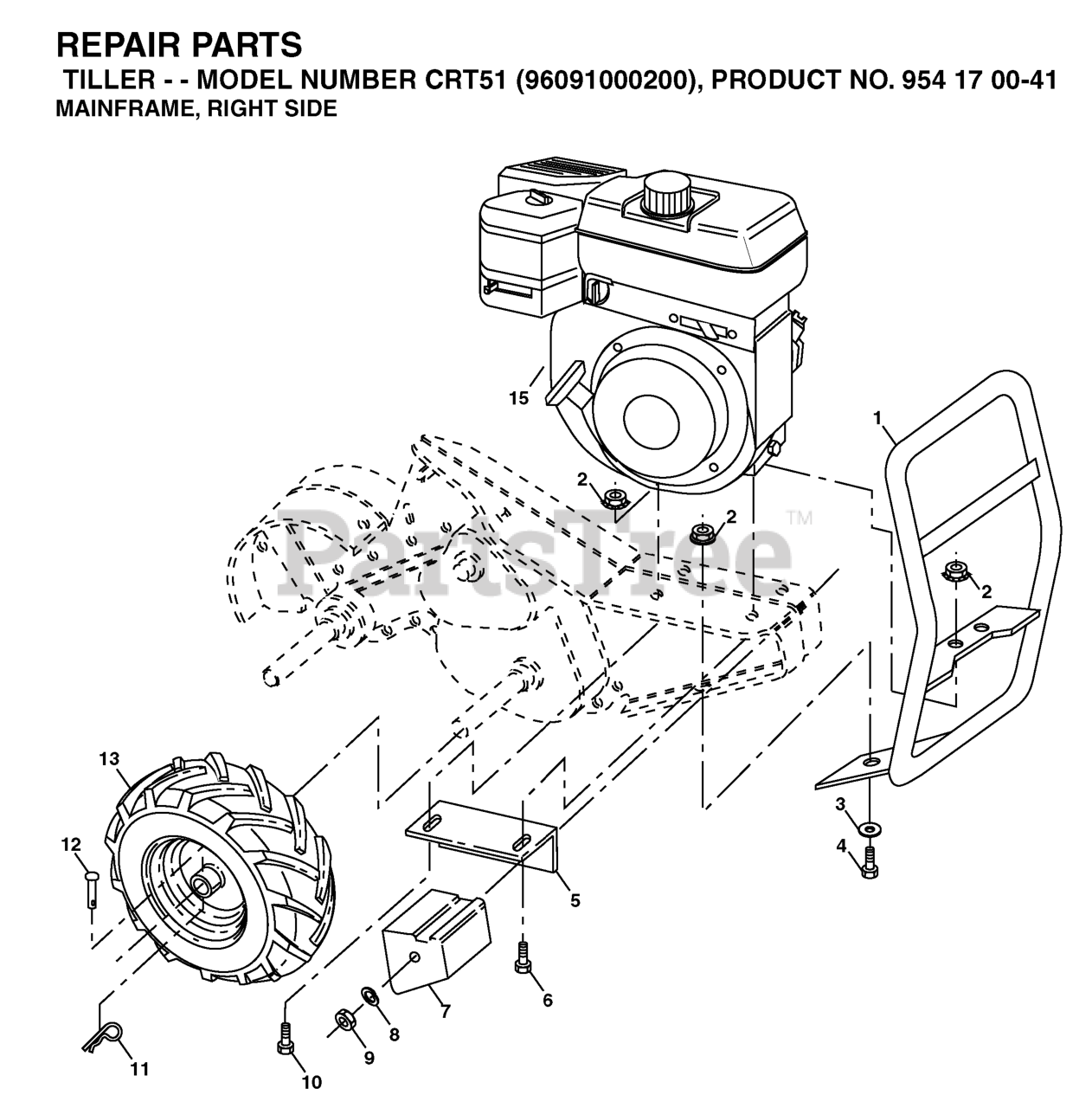

CRT 51 (960910002-00) - Husqvarna Rear-Tine Tiller (2006-02) MAINFRAME, RIGHT SIDE Parts Diagram

Rear-Tine Tiller

MAINFRAME, RIGHT SIDE Parts Diagram

  • Title
13

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$145.99

$

In Stock, only 2 left!

0

532 12 47-18

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

8

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

9

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

7

Husqvarna 532102173

COUNTERWEIGHT, RH

$42.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

532 12 43-66

Husqvarna 532124366

RIM
(Superseded to 532128952)

$

$

Not available

1

Husqvarna 532185190

RP.BUMPER.ASM.TILLER.
(Superseded to 583879301)

$96.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532102332

DNO BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$

$

Not available

22

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0
