CRT 51 (954170041-L) - Husqvarna Rear-Tine Tiller (2003-01) MAINFRAME, LEFT SIDE Parts Diagram

Rear-Tine Tiller

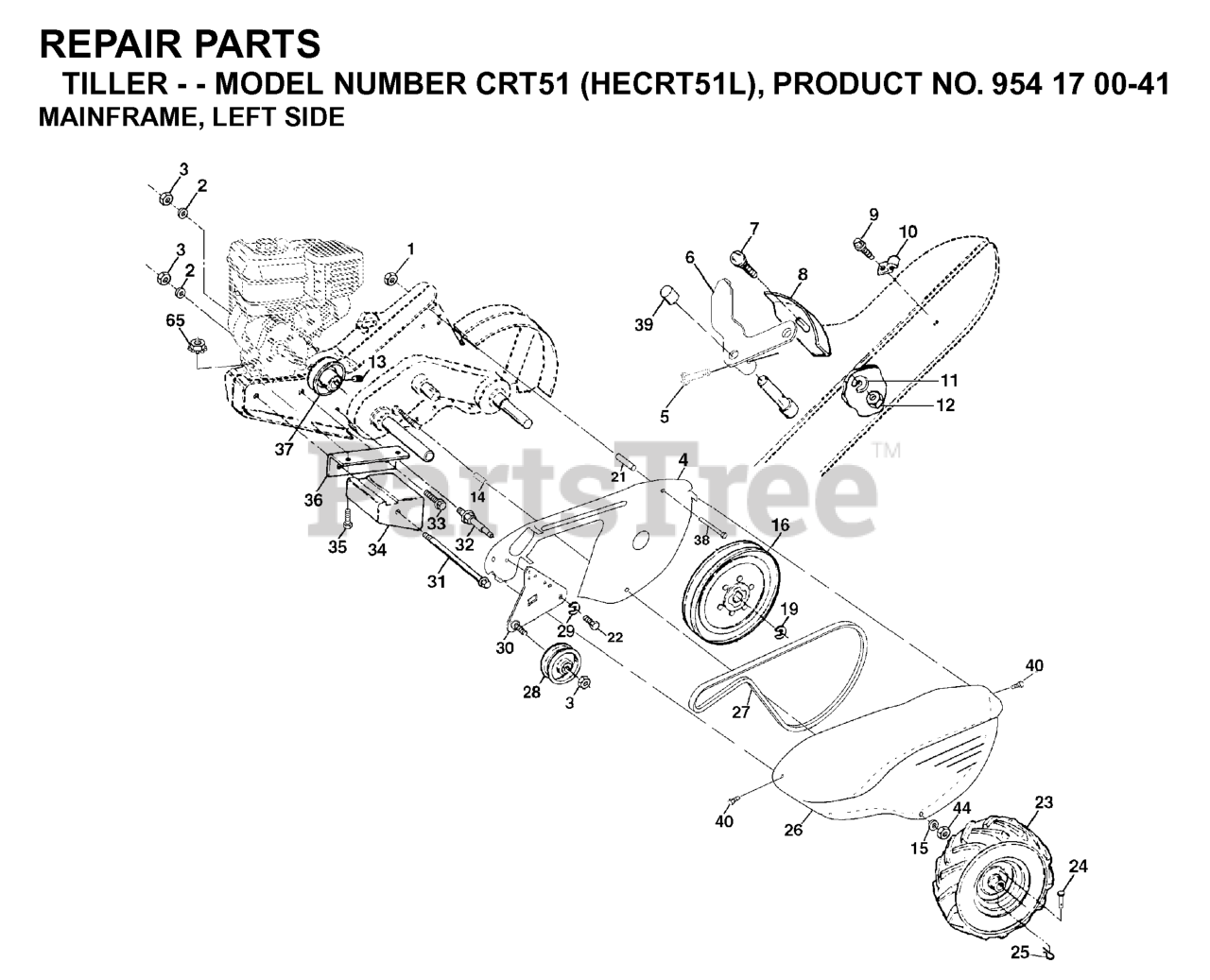

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

32

Husqvarna 532102141

SHIFT ARM CRT

$7.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532170127

SHIELD
(Superseded to 532432508)

$43.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 8

0

44

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 874760544

BOLT
(Superseded to 874780544)

$

$

Not available

30

Husqvarna 532159229

BRACKET.ASM.IDLER.BLACK
(Superseded to 584289401)

$

$

Not available

25

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

532 12 47-18

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 1 left!

0

3

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

26

Husqvarna 532166792

RP BELT GUARD
(Superseded to 532440438)

$54.99

$

In Stock, only 1 left!

0

22

Husqvarna 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$68.99

$

In Stock, only 3 left!

0

37

Husqvarna 532130812

RP.ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

31

Husqvarna 532102384

BOLT.FIN.HEX.3/8-16UNC

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532110111

LEVER ASM CRT

$18.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$145.99

$

In Stock, only 2 left!

0

65

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 532102383

COUNTERWEIGHT.LH.CRT

$133.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

PANEL.INDICATOR.SHIFT.BLACK

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532009484

CONDUIT.CLIP.PLATED

$6.49

$

In Stock, only 4 left!

0

7

Husqvarna 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

21

Husqvarna 532110652

SPACER CRT

$5.99

$

Usually ships in 3-10 days

0

532 12 43-66

Husqvarna 532124366

RIM
(Superseded to 532128952)

$

$

Not available

11

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

35

Husqvarna 874760532

Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2

$2.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532102331

BRACKET LH CRT

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

19

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

15

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
