CRT 50 (954000031-C) - Husqvarna Rear-Tine Tiller (1992-01) Transmission Parts Diagram

Rear-Tine Tiller

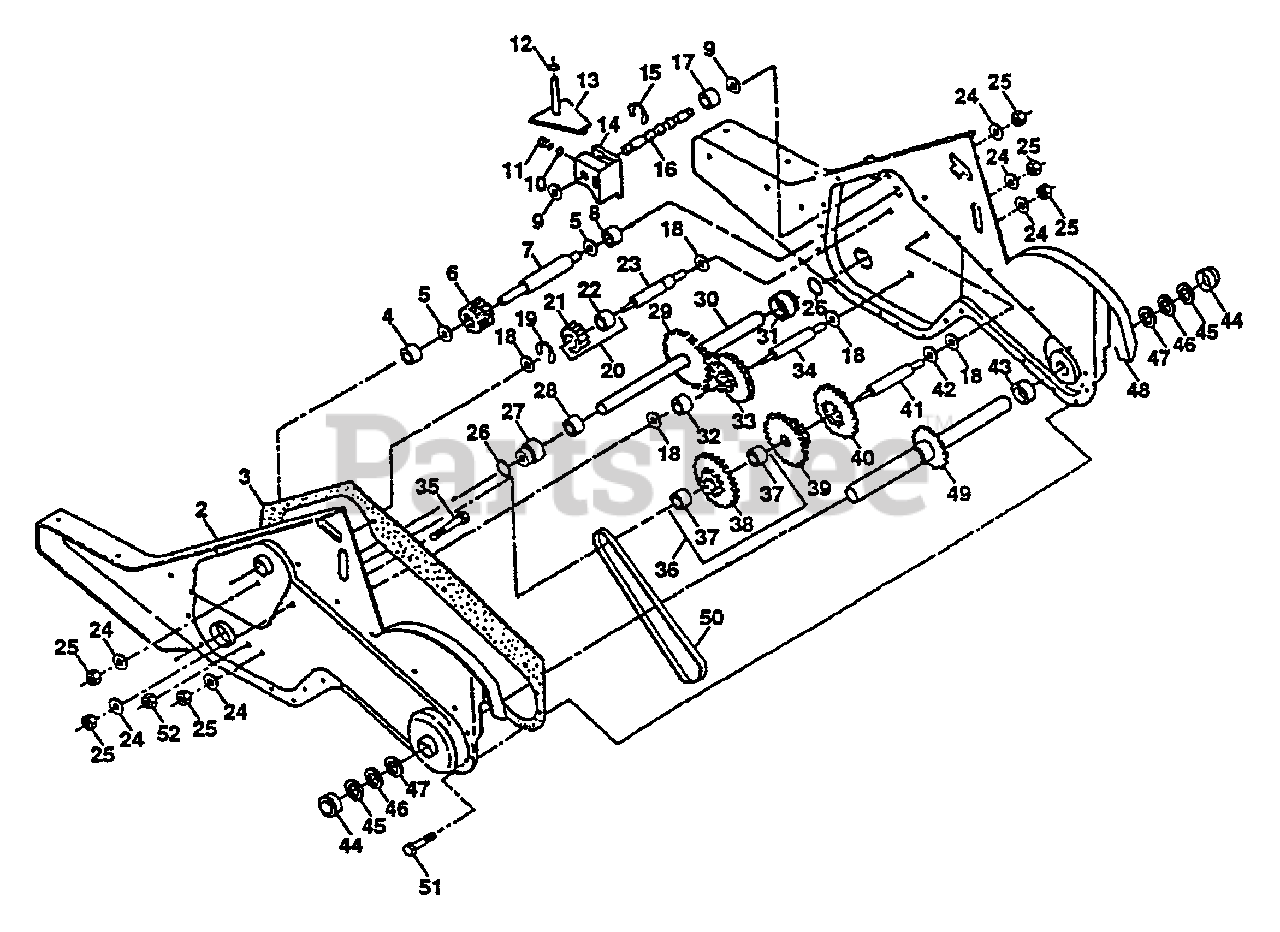

Transmission Parts Diagram

  • Title
1

Husqvarna 532132718

Transmission Assembly
(Superseded to 532181098)

Note: (Includes Key Nos. 2-52)

$849.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532121147

Gearcase, L.H. w/Bearing
(Superseded to 532181098)

Note: (Includes case 4)

$849.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532106211

Gasket, Gearcase
(Superseded to 532431022)

$24.99

$

In Stock, Qty 5

0

4

Husqvarna 532005020

Bearing, Needle

$17.99

$

In Stock, Qty 5

0

5

Husqvarna 532001370

Washer, Thrust 5/8 x 1.10 x 1/32

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532102113

Pinion, Input

$

$

Not available

7

Husqvarna 532102110

Shaft, Input

$

$

Not available

8

Husqvarna 532124792

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 14

0

9

Husqvarna 532102136

Washer, Seal

$7.49

$

In Stock, only 2 left!

0

10

Husqvarna 532124697

Ball, Steel
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 532100371

Spring, Shift, Fork

$7.49

$

In Stock, Qty 6

0

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 532102107

Arm, Shift

$

$

Not available

14

Husqvarna 532008353

Fork, Shift

$34.99

$

In Stock, Qty 8

0

15

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 532102109

Shaft, Shift

$

$

Not available

17

Husqvarna 532104159

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 812000040

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532102114

Gear, Assembly, Reverse Idler

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Husqvarna 532102115

Gear, Reverse Idler

$26.99

$

In Stock, only 1 left!

0

22

Husqvarna 532006803

Bearing, Needle

$10.99

$

In Stock, Qty 5

0

23

Husqvarna 532102111

Shaft, Reverse Idler

$22.99

$

Usually ships in 3-10 days

0

24

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

25

Husqvarna 873610700

Nut, Hex 7/16-20

$7.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532102100

Bearing, Shaft, Ground Drive

$

$

Not available

28

Husqvarna 532106390

Spacer 0.765 x 1.125 x 1.23

$5.99

$

In Stock, only 1 left!

0

29

Husqvarna 532102134

Chain #35-50 Pitch

$31.99

$

In Stock, only 2 left!

0

30

Husqvarna 532109204

Ground Shaft Assembly
(Superseded to 532150737)

$

$

Not available

31

Husqvarna 532102106

Bearing, Shaft, Ground Drive
(Superseded to 532143008)

$

$

Not available

32

Husqvarna 532106388

Spacer 0.70 x 1.00 x 1.150

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 532102121

Sprocket and Gear Assembly

$

$

Not available

34

Husqvarna 532102112

Shaft, Reduction (2nd)

$43.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532102101

Screw, Whiz, Lock 5/16-18 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532106141

Sprocket Assembly w/Bearing
(Superseded to 532137300)

Note: (Includes Key Nos. 37 and 38)

$

$

Not available

37

Husqvarna 532124791

Bearing, Needle
(Superseded to 585695502)

$6.99

$

In Stock, only 2 left!

0

38

Husqvarna 532106142

Sprocket, Tine
(Superseded to 532137300)

$

$

Not available

39

Husqvarna 532105345

Gear, Cluster, Red 1st & 2nd

$62.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532105346

Gear, Reverse

$45.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532008358

Shaft, Reduction (1st)

$17.99

$

In Stock, only 1 left!

0

42

Husqvarna 532004220

Washer, Thrust

$5.99

$

In Stock, only 1 left!

0

43

Husqvarna 532106146

Spacer 1.01 x 1.75 x 0.760

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532009672

Cup, Formed
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

45

Husqvarna 532102144

Ring, Spiral

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532009676

Seal, Ring, Rubber
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

47

Husqvarna 532009674

Seal, Oil
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

48

Husqvarna 532121745

Gearcase, R.H. w/Bearing
(Superseded to 532150700)

Note: (Includes Key No. 8)

$

$

Not available

49

Husqvarna 532132688

Shaft, Tine
(Superseded to 532432058)

$

$

Not available

50

Husqvarna 532106147

Chain, Roller #50-50 Pitch

$66.99

$

In Stock, only 1 left!

0

51

Husqvarna 817580408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873220500

Nut, Hex 5/16-18.

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532006066

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
