CRT 50 (954000031-B) - Husqvarna Rear-Tine Tiller (1990-11) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

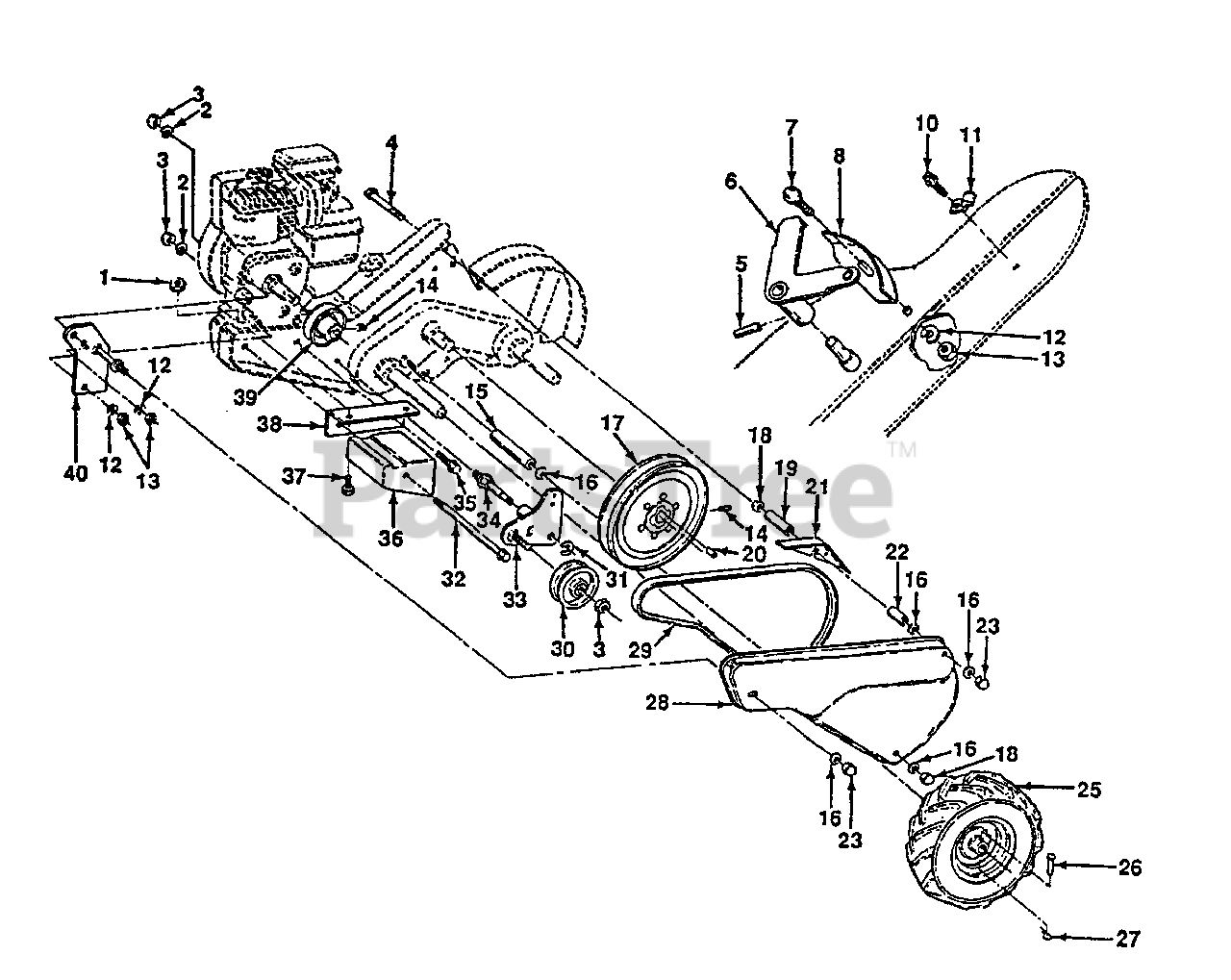

Mainframe, Left Side Parts Diagram

  • Title

1

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 874930576

Bolt, Hex 5/16-18 x 4-3/4

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 532110111

Lever, Shift

$18.99

$

Usually ships in 3-10 days

0

7

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

Panel, Shift Indicator

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532086777

Screw, Hex, Washer Head, Slotted #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

11

Husqvarna 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 823230506

Screw, Set Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 532120938

Spacer, Split 0.327 x 0.42 x 2.68

$

$

Not available

16

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532100473

Sheave, Transmission

$

$

Not available

18

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532110651

Spacer, Split 0.327 x 0.42 x 1.75

$

$

Not available

20

Husqvarna 532002649

Key, Square 3/16 x 1-1/8

$6.99

$

In Stock, only 1 left!

0

21

Husqvarna 532110653

Guard, Pinch Point

$

$

Not available

22

Husqvarna 532110652

Spacer, Split 0.327 x 0.42 x 2.09

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532104214

Nut, Cap 5/16-18

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532102190

Tire

$93.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124258

Rim

$122.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124718

Tire Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

26

Husqvarna 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

28

Husqvarna 532125091

Guard, Belt

$

$

Not available

29

Husqvarna 532102143

Belt, V
(Superseded to 532132672)

$37.99

$

In Stock, only 1 left!

0

30

Husqvarna 532104679

Pulley, Idler

$18.99

$

In Stock, only 1 left!

0

31

Husqvarna 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532102384

Bolt, Hex 5/16-16 x 12

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532105611

Bracket, Idler
(Superseded to 584289401)

$

$

Not available

34

Husqvarna 532102141

Shaft, Idler Arm

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532102383

Counterweight, L. H.

$133.99

$

Usually ships in 3-10 days

0

37

Husqvarna 874760524

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 874780524)

$

$

Not available

38

Husqvarna 532102331

Bracket, Reinforcement, L. H.

$13.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532102142

Sheave, Engine
(Superseded to 532130816)

$48.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532102376

Bracket, Guard Belt

$

$

Not available

40

Husqvarna 532104323

Decal, Shift Indicator

$

$

Not available

40

Husqvarna 532124265

Decal, Belt Guard

$

$

Not available
