CRT 50 (954000031-A) - Husqvarna Rear-Tine Tiller (1990-01) Tines Parts Diagram

Rear-Tine Tiller

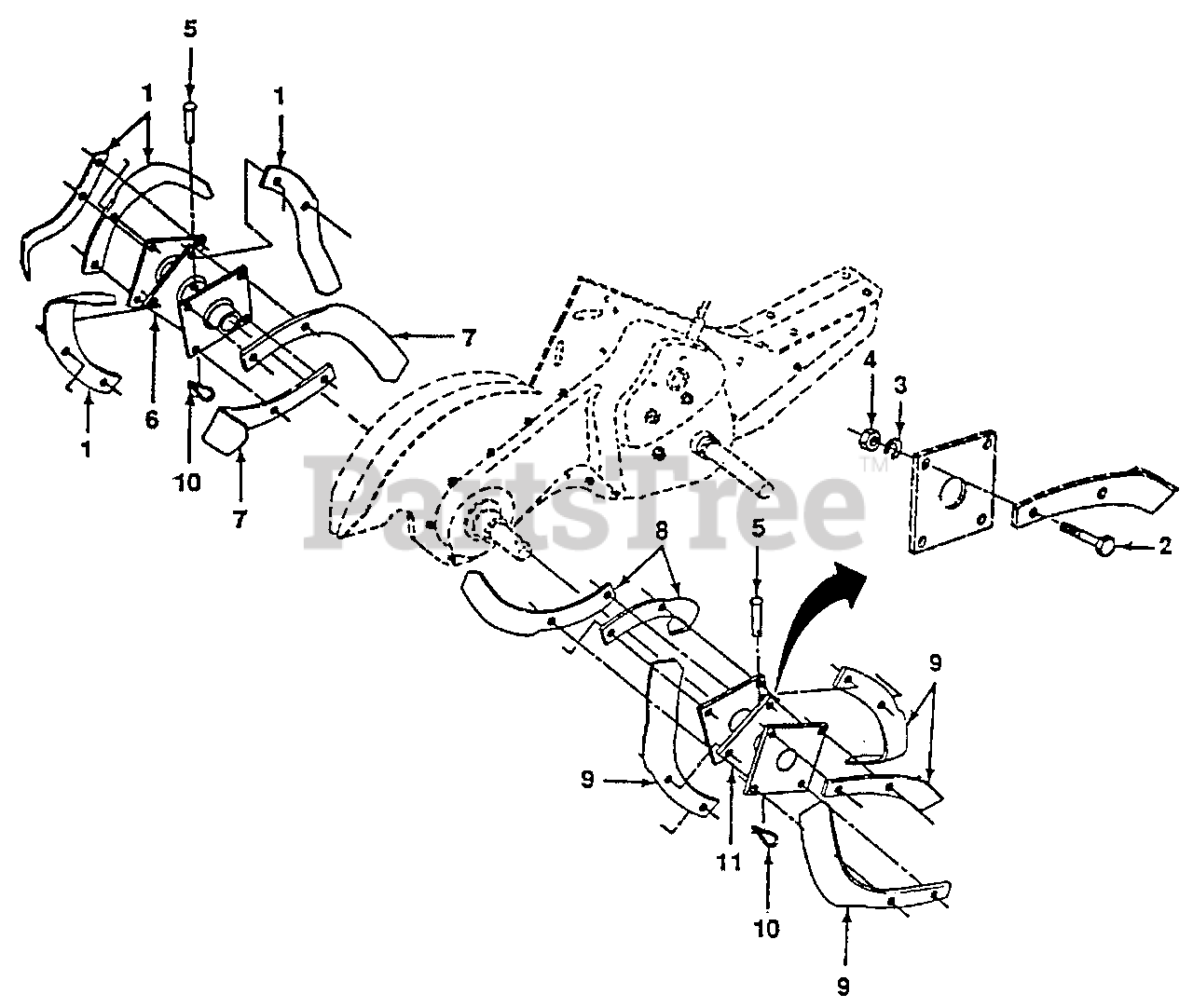

Tines Parts Diagram

  • Title
1

Husqvarna 532004459

Tine, L. H. Outer
(Superseded to 532006554)

$

$

Not available

2

Husqvarna 874610616

Bolt, Hex 3/8-24 x 1

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

4

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532004929

Clevis Pin

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532102380

Assembly, Hub and Plate, L. H.

$

$

Not available

7

Husqvarna 532006554

Tine, L. H. Inner

$

$

Not available

8

Husqvarna 532006555

Tine, R. H. Inner

$

$

Not available

9

Husqvarna 532004460

Tine, R. H. Outer
(Superseded to 532006555)

$

$

Not available

10

Husqvarna 532124660

Clip, Hairpin
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532102382

Assembly, Hub and Plate, R. H.

$

$

Not available
