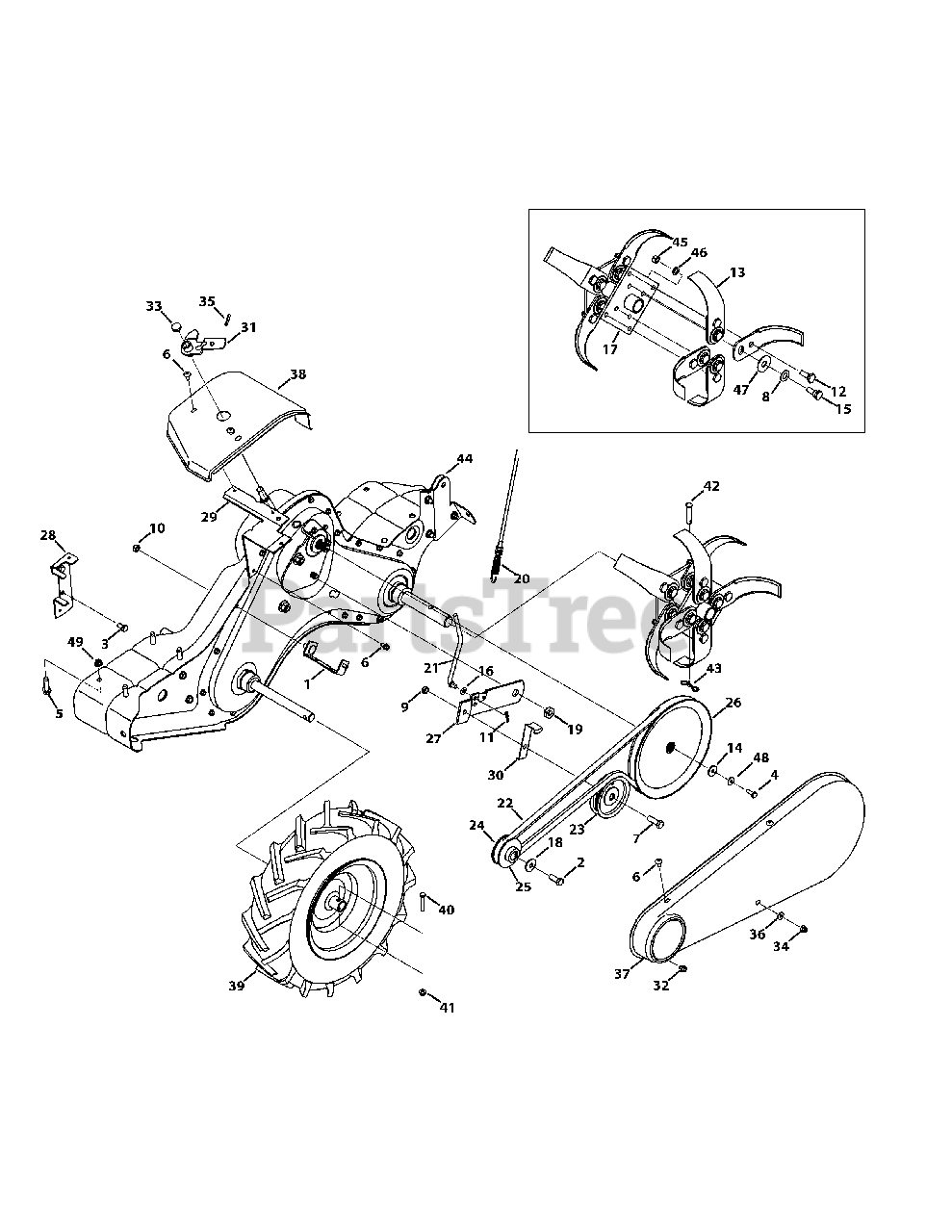

CRT 18 H (21AB455C897) - Columbia 18" Tiller (2015) Tine & Drive Parts Diagram

18" Tiller

Tine & Drive Parts Diagram

  • Title

1

MTD 686-0111-0637

Belt Cover Bracket Assembly
(Superseded to 686-0111)

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-1039

Hex Head Screw, 3/8-24 x 100

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0170

Hex Bolt, 5/16-24 x 625

$6.99

$

In Stock, only 1 left!

0

4

MTD 710-0513A

Hex Bolt, 1/4-28 x 75"

$4.99

$

In Stock, Qty 7

0

5

MTD 710-0520

Hex Screw, 3/8-16 x 150" (Honda)

$4.49

$

In Stock, Qty 5

0

6

MTD 710-1652

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Head Screw, 3/8-16 x 125

$3.99

$

In Stock, Qty 20+

0

8

MTD 936-0253

Washer, Bell, 525 x 100 x 050
(Superseded to 736-0253)

$

$

Not available

9

MTD 712-0266A

Jamlock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 914-0104

Cotter Pin, 072 DIA x 113 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

12

MTD 938-0689

Screw, Shoulder, 3/8-24 x 1/2 x 180

$8.99

$

In Stock, only 2 left!

0

13

MTD 742-0305A-0637

Articulating Tine

$20.99

$

In Stock, Qty 20+

0

14

MTD 936-0176

Washer, Flat, 265 x 938 x 120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

15

MTD 938-0688

Screw, Shoulder, 3/8-24 x 1/2 x 325

$9.99

$

In Stock, Qty 15

0

16

MTD 936-0271

Washer, Spring, 317 x 625 x 020

$4.49

$

In Stock, Qty 10

0

17

MTD 784-0160-0637

Tine Adaptor Assembly

$115.99

$

In Stock, only 3 left!

0

18

MTD 936-0452

Washer, Bell, 396 x 1140 x 095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

19

MTD 738-0876A

Shoulder Nut, 7/16-20

$10.99

$

In Stock, Qty 15

0

20

MTD 946-1117

Clutch Cable

$66.99

$

In Stock, only 1 left!

0

21

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

22

MTD 954-0434

Belt, 4L x 5816 LG

$61.99

$

In Stock, only 1 left!

0

23

MTD 756-0405

Flat Idler Pulley w/ Flanges, 375 OD

$71.99

$

Usually ships in 3-6 days

0

24

MTD 756-0971

Engine Pulley, Inner Half

$14.99

$

Usually ships in 3-6 days

0

25

MTD 756-0972

Engine Pulley, Outer Half

$16.99

$

Usually ships in 3-6 days

0

26

MTD 756-1162

Input Pulley, 4L x 8594

$90.99

$

In Stock, only 1 left!

0

27

MTD 786-0064A

Idler Pulley Bracket

$38.99

$

In Stock, only 1 left!

0

28

MTD 786-0185A-0637

Belt Keeper Bracket, B&S 65 HP

$16.99

$

Usually ships in 3-6 days

0

29

MTD 786-0187-0637

Shift Cover Bracket

$23.99

$

Usually ships in 3-6 days

0

30

MTD 786-0193-0637

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

31

MTD 686-0109A

Shift Crank Assembly

$36.99

$

Usually ships in 3-6 days

0

32

MTD 710-0653

Screw, 1/4-20:0375

$4.49

$

In Stock, Qty 7

0

33

MTD 731-07556

Cap

$3.49

$

Usually ships in 3-6 days

0

34

MTD 712-0392

Lock Nut, Cap, 1/4-28

$6.99

$

In Stock, only 1 left!

0

35

MTD 715-0120

Spiral Pin, 3/16 x 100

$10.99

$

In Stock, only 1 left!

0

36

MTD 936-3020

Washer, Flat, 271x 630 x 065
(Superseded to 736-3020)

$

$

Not available

37

MTD 784-0158B-0606

Belt Cover

$95.99

$

Usually ships in 3-6 days

0

38

MTD 784-0208D-0606

Shift Cover

$79.99

$

Usually ships in 3-6 days

0

39

MTD 934-04231

Wheel, 16 x 46 x 8

$257.99

$

Usually ships in 3-6 days

0

40

MTD 710-05289

Hex Head Screw, 1/4-20 x 150

$5.99

$

In Stock, Qty 20+

0

41

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

MTD 911-0415

Clevis Pin, 375 x 175
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

43

MTD 714-04043

Cotter Pin, Bow-Tie

$4.99

$

In Stock, Qty 12

0

44

MTD 986-04074B

Complete Gear Case Assembly
(Superseded to 986-04074E)

$1708.99

$

Usually ships in 3-6 days

0

45

MTD 712-3054

Hexlock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

46

MTD 936-0169

Washer, Lock, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 936-0208

Washer, Flat, 51 x 15 x 007
(Superseded to 736-0208)

$

$

Not available

48

MTD 736-0270

Bell Washer, 265 x 750 x 060

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-04065

Flangelock Nut, 3/8-16 (Honda)

$3.99

$

In Stock, Qty 20+

0
