CRT 18 H (21AB455C897) - Columbia 18" Tiller (2011) Transmission 21AB455C Parts Diagram

18" Tiller

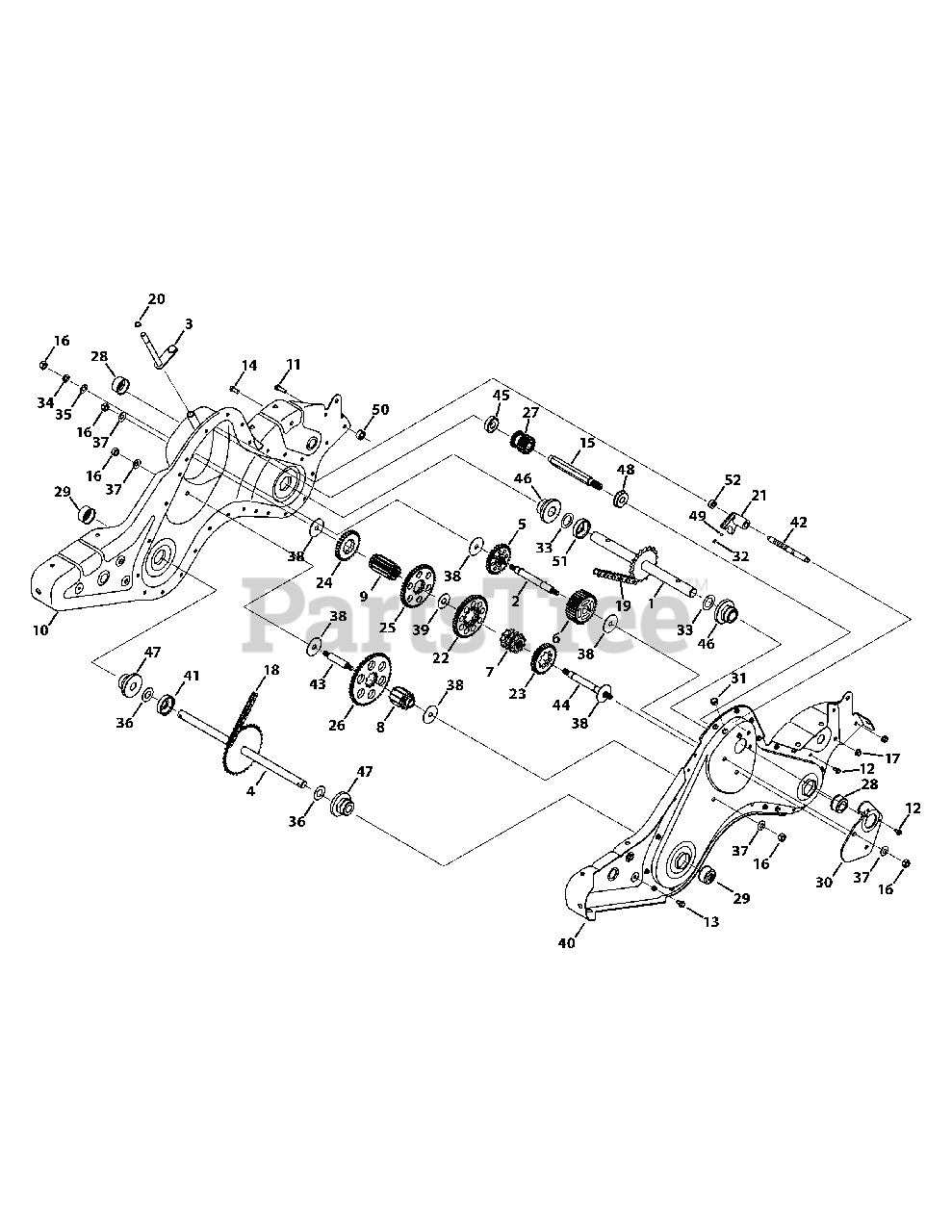

Transmission 21AB455C Parts Diagram

  • Title

1

MTD 611-0021

Tine Shaft Ass’y 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

2

MTD 611-0128

Jack Shaft Ass’y

$55.99

$

In Stock, only 1 left!

0

3

MTD 611-0129

Input Shaft Ass’y

$58.99

$

In Stock, only 3 left!

0

4

MTD 611-04074A

Wheel Shaft Ass’y 33T

$102.99

$

In Stock, only 1 left!

0

5

MTD 617-0058

Rev. Idler Gear Ass’y 30T
(Superseded to 617-0058A)

$80.99

$

Usually ships in 3-6 days

0

6

MTD 617-0059

Fr. Idler Gear Ass’y 30 T
(Superseded to 917-0059B)

$139.99

$

In Stock, only 1 left!

0

7

MTD 617-0060

Tine Input Sprocket Ass’y 9T
(Superseded to 617-0060A)

$162.99

$

In Stock, only 4 left!

0

8

MTD 617-0061

Wheel Input Sprocket Ass’y 10T

$117.99

$

Usually ships in 3-6 days

0

9

MTD 617-0062

Gear Ass’y 11T
(Superseded to 617-0062A)

$124.99

$

Usually ships in 3-6 days

0

10

MTD 686-0108A-0637

RH Housing Ass’y

$268.99

$

Usually ships in 3-6 days

0

11

MTD 710-0376

Hex Scr 5/16 X 1.00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0604A

Hex Wash HD Scr 5/16-18 X .62

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-1349

Input Shaft
(Superseded to 711-1349B)

$51.99

$

In Stock, only 1 left!

0

16

MTD 712-0378

Hex Nut 7/16-20

$6.99

$

Usually ships in 3-6 days

0

17

MTD 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 913-0367

#420 Chain 1/2 Pitch x 50 Links-Endless

$51.99

$

In Stock, only 2 left!

0

19

MTD 913-0484

#50 Chain 5/8 Pitch x 54 Links

$74.99

$

In Stock, only 1 left!

0

20

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

21

MTD 717-0853A

Shifting Fork

$83.99

$

Usually ships in 3-6 days

0

22

MTD 717-1582

Spur Gear 44T
(Superseded to 717-1582B)

$100.99

$

In Stock, only 1 left!

0

23

MTD 717-1583

Spur Gear 30T

$53.99

$

In Stock, only 1 left!

0

24

MTD 717-1584

Spur Gear 30T

$42.99

$

In Stock, only 1 left!

0

25

MTD 717-1585

Spur Gear 44T

$84.99

$

In Stock, only 1 left!

0

26

MTD 717-1587

Spur Gear 44T

$97.99

$

Usually ships in 3-6 days

0

27

MTD 717-1594

Spur Gear 16T

$198.99

$

Usually ships in 3-6 days

0

28

MTD 921-0378

Seal 1.0" Shaft

$18.99

$

In Stock, only 2 left!

0

29

MTD 721-0379

Seal .75 Shaft

$18.99

$

In Stock, only 2 left!

0

30

MTD 786-0238

Gear Positioner Bracket
(Superseded to 786-0238A)

$21.99

$

Usually ships in 3-6 days

0

31

MTD 726-0277

Taper Cap Plug

$4.99

$

Usually ships in 3-6 days

0

32

MTD 732-04778

Compression Spring .230" Lg.

$4.49

$

In Stock, Qty 11

0

33

MTD 936-0163

Flat Washer 1.03 ID X 1.62 OD X .03
(Superseded to 736-0163)

$

$

Not available

34

MTD 936-0226

Flat Washer .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

35

MTD 936-0226

Flat Washer .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

36

MTD 936-0351

Flat Washer .76 ID X 1.5 OD X .03
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0407

Bell. Washer .45" ID x 1.0 OD

$3.99

$

In Stock, Qty 11

0

38

MTD 736-0518

Thrust Wash. .445 ID x 1.92 OD

$10.99

$

Usually ships in 3-6 days

0

39

MTD 736-3088

Flat Washer .635" ID x 1.59 OD

$4.49

$

In Stock, Qty 20+

0

40

MTD 686-04129-0637

LH Chain Case Housing

$229.99

$

Usually ships in 3-6 days

0

41

MTD 950-0671

Spacer .75" ID x .50" Lg.

$11.99

$

Usually ships in 3-6 days

0

42

MTD 738-0645

Detent Shaft 1/2" Dia.

$61.99

$

Usually ships in 3-6 days

0

43

MTD 738-0648

Jack Shaft 5/8" Dia. x 2.38

$51.99

$

Usually ships in 3-6 days

0

44

MTD 738-04424A

Jack Shaft .625 x 5.0

$18.99

$

In Stock, only 1 left!

0

45

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

46

MTD 941-0420

Tine Shaft Brg. 1.002 x 2.50
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

47

MTD 741-0421

Wheel Brg. .752" x 2.5"

$

$

Not available

48

MTD 941-0563

Ball Bearing w/snap ring

$36.99

$

In Stock, Qty 7

0

49

MTD 741-0862

Ball Detent .250 DIA

$4.49

$

In Stock, Qty 20+

0

50

MTD 750-0258

Spacer .315" ID x .375" Lg.

$11.99

$

In Stock, only 1 left!

0

51

MTD 950-0570

Step Spacer

$10.99

$

In Stock, Qty 6

0

52

MTD 750-0664

Spacer .505 ID x .88 OD

$6.99

$

In Stock, only 2 left!

0

MTD 986-04074B

Gear Case Ass'y Complete
(Superseded to 986-04074E)

Note: Not shown

$1708.99

$

Usually ships in 3-6 days

0
