CRT 18 H (21AB455C897) - Columbia 18" Tiller (2011) General Assembly 21AB455C Parts Diagram

18" Tiller

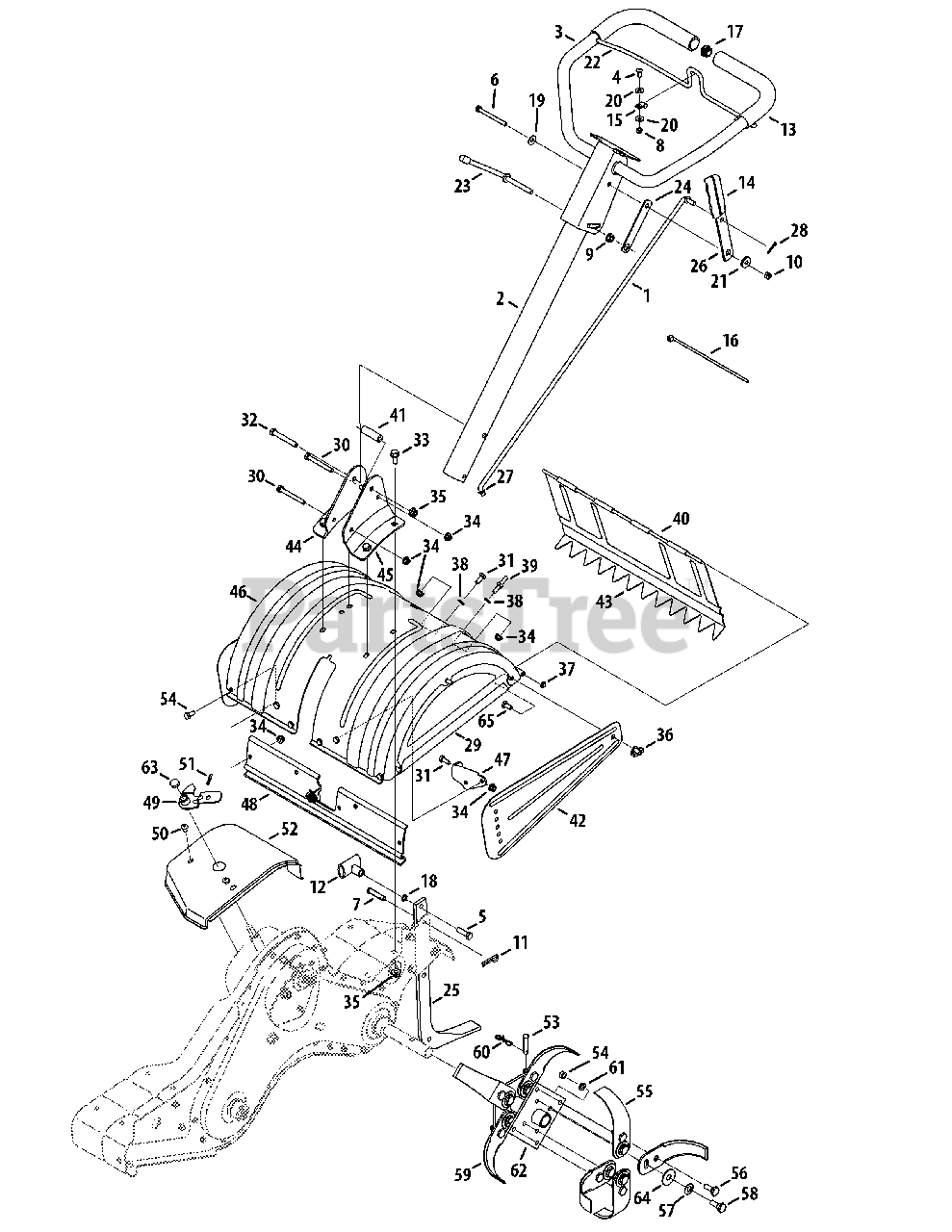

General Assembly 21AB455C Parts Diagram

  • Title

1

MTD 747-1152

Shift Rod

$45.99

$

Usually ships in 3-6 days

0

2

MTD 649-0034-0606

Lower Handle Ass’y

$79.99

$

Usually ships in 3-6 days

0

3

MTD 649-0041-0606

Upper Handle Ass’y
(Superseded to 649-0041B-0606)

$208.99

$

Usually ships in 3-6 days

0

4

MTD 710-0946

Screw 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

6

MTD 710-3056

Hex Bolt 5/16-18 X 3.25

$10.99

$

In Stock, only 1 left!

0

7

MTD 911-0415

Clevis Pin 3/8 Dia
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

8

MTD 712-0324

Hex L-Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

9

MTD 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

10

MTD 912-0429

Hex Ins. L-Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0147

Hairpin

$4.99

$

In Stock, Qty 6

0

12

MTD 720-0210A

Small "T" Knob

$15.99

$

In Stock, only 2 left!

0

13

MTD 720-0278A

Grip (2 req’d)

$22.99

$

In Stock, only 3 left!

0

14

MTD 720-0313

Grip

$19.99

$

Usually ships in 3-6 days

0

15

MTD 726-0273

Battery Clamp

$7.49

$

In Stock, only 1 left!

0

16

MTD 726-0317

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

17

MTD 735-0246A

Vinyl End Plug

$5.99

$

In Stock, only 1 left!

0

18

MTD 936-0117

Flat Washer .385 ID X .62 OD X .033

$7.49

$

Usually ships in 3-6 days

0

19

MTD 736-0242

Bell. Washer .345 ID X .88 OD X .06

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-3090

Flat Washer .260 x .720 x .060

$6.99

$

In Stock, only 1 left!

0

21

MTD 938-0958

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

22

MTD 747-1219-0637

Bail Clutch

$32.99

$

Usually ships in 3-6 days

0

23

MTD 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

24

MTD 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

25

MTD 786-0120-0637

Depth Bar

$66.99

$

In Stock, only 1 left!

0

26

MTD 786-0181-0606

Shift Lever Rod

$19.99

$

Usually ships in 3-6 days

0

27

MTD 735-0127

Rubber Washer .33 ID x .125

$6.99

$

Usually ships in 3-6 days

0

28

MTD 914-0104

Int. Cot ter Pin 5/16 Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

29

MTD 686-0044B-0606

Tine Shield Cover Ass’y

$78.99

$

Usually ships in 3-6 days

0

30

MTD 710-0176

Hex Scr 5/16-18 X 2.75

$4.49

$

In Stock, only 2 left!

0

31

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-3022

Hex Screw 3/8-16 x 2.75" Lg.

$4.99

$

In Stock, Qty 7

0

33

MTD 710-04482

Carriage Bolt 3/8-16 x .875" Lg.

$4.49

$

In Stock, Qty 16

0

34

MTD 712-04063

Flanged Lock Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

35

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0421

Wing Nut

$6.99

$

In Stock, Qty 20+

0

37

MTD 926-0106

Push Cap
(Superseded to 726-0106)

$

$

Not available

38

MTD 736-0204

Flat Washer .34 ID X .62 OD X .03

$4.49

$

In Stock, Qty 6

0

39

MTD 938-0849

Hex Screw 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

40

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

41

MTD 750-0885A

Spacer .322 ID x .47 OD

$11.99

$

Usually ships in 3-6 days

0

42

MTD 786-0090A-0606

Side Shield

$36.99

$

Usually ships in 3-6 days

0

43

MTD 786-0113A-0606

Rear Tine Shield

$83.99

$

Usually ships in 3-6 days

0

44

MTD 786-0176-0606

RH Handle Brkt.

$17.99

$

Usually ships in 3-6 days

0

45

MTD 786-0177-0606

LH Handle Brkt.

$17.99

$

Usually ships in 3-6 days

0

46

MTD 786-0178A-0606

Tine Shield

$104.99

$

Usually ships in 3-6 days

0

47

MTD 786-0179-0637

Tine Shield Brkt.

$49.99

$

Usually ships in 3-6 days

0

48

MTD 786-0180-0637

Shoulder Spacer Brkt.

$47.99

$

Usually ships in 3-6 days

0

49

MTD 686-0109A

Shift Crank Ass’y

$36.99

$

Usually ships in 3-6 days

0

50

MTD 710-1017

Torx Mach. AB-Tapp Scr. 1/4 X .62" Lg.

$8.49

$

In Stock, Qty 9

0

51

MTD 715-0120

Spring Pin Roll 3/16 Dia.

$10.99

$

In Stock, only 1 left!

0

52

MTD 784-0208C-0606

Shift Cover

$

$

Not available

53

MTD 911-0415

Clevis Pin 3/8 Dia
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

54

MTD 712-3054

Hex L-Nut 3/8-24 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

55

MTD 742-0305A-0637

13" Dia. Articulating Tine

$20.99

$

In Stock, Qty 20+

0

56

MTD 938-0689

Shld. Scr. 1/2 Dia. x .175

$8.99

$

In Stock, only 2 left!

0

57

MTD 936-0253

Belleville washer .505 ID X 1.00 OD X .0
(Superseded to 736-0253)

$

$

Not available

58

MTD 938-0688

Shld. Bolt 1/2" Dia. x .320

$9.99

$

In Stock, Qty 15

0

59

MTD 784-0160-0637

Tine Adapter Assembly, 18"

$115.99

$

In Stock, only 3 left!

0

59

MTD 984-0205A-0637

Tine Assembly

Note: (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1))

$215.99

$

In Stock, only 2 left!

0

60

MTD 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

61

MTD 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

62

MTD 784-0161-0637

Tine Adapter Plate

$56.99

$

Usually ships in 3-6 days

0

63

MTD 731-07556

Cap

$3.49

$

Usually ships in 3-6 days

0

64

MTD 710-1307

Stud, 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0
