CRT 18 H (21AB455C897) - Columbia 18" Tiller (2011) Drive Assembly 21AB455C Parts Diagram

18" Tiller

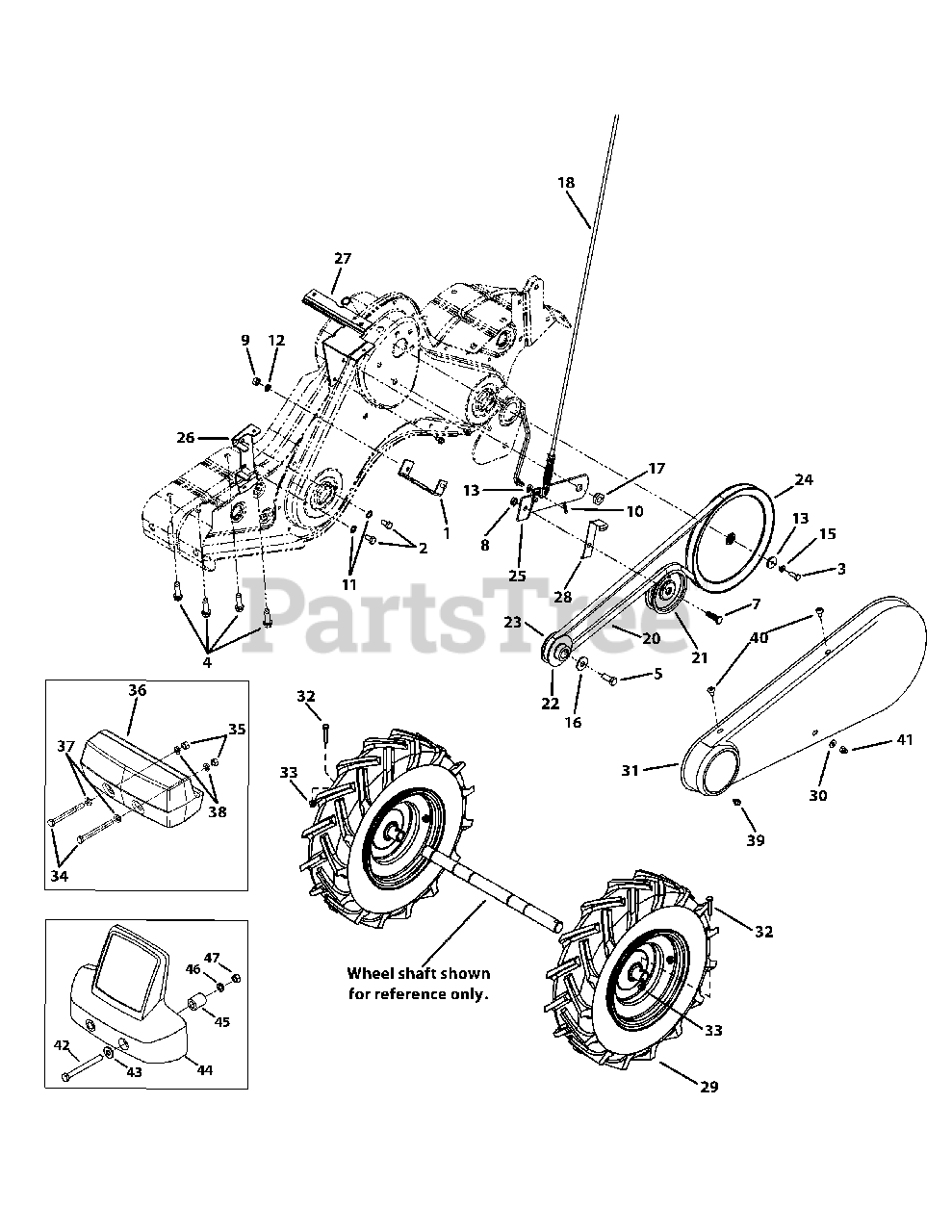

Drive Assembly 21AB455C Parts Diagram

  • Title

1

MTD 686-0111-0637

Belt Cover Brkt Ass’y
(Superseded to 686-0111)

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-0237

Hex Screw 5/16-24 x .62

$4.49

$

In Stock, only 1 left!

0

3

MTD 710-0412

Hex Scr 1/4-28 x .75

$5.99

$

In Stock, Qty 9

0

4

MTD 710-0520

Hex S-Tapp Scr 3/8-16 x 1.5 Gr. 5

$4.49

$

In Stock, Qty 5

0

5

MTD 710-1039

Hex L-Scr 3/8-24 x 1.00" Lg. Gr. 8

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Screw 3/8-16 x 1.25 Gr. 5

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0266A

Hex Cent L-Nut 3/8-16 Gr. 5

$3.99

$

In Stock, Qty 20+

0

9

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 914-0104

Int. Cotter Pin 5/16 Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0104

Internal L-Washer

$4.99

$

Usually ships in 3-6 days

0

12

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

13

MTD 936-0176

Flat Washer .25 ID x .93 OD x .125
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

14

MTD 936-0271

Shakeproof Spring Washer

$4.49

$

In Stock, Qty 10

0

15

MTD 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 9

0

16

MTD 936-0452

Belleville Washer
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

17

MTD 938-0876

Shoulder Nut
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

18

MTD 946-1117

Clutch Cable

$66.99

$

Usually ships in 3-6 days

0

19

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

20

MTD 954-0434

Belt: 4L x 58.16" Lg.

$61.99

$

In Stock, only 1 left!

0

21

MTD 756-0405

Flat Idler w/flanges 3-3/4" OD

$71.99

$

Usually ships in 3-6 days

0

22

MTD 756-0971

Outer Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

23

MTD 756-0972

Inner Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

MTD 756-1162

Input Pulley

$90.99

$

In Stock, only 1 left!

0

25

MTD 786-0064A

Idler Bracket

$38.99

$

In Stock, only 1 left!

0

26

MTD 786-0185A-0637

Belt Keeper Brkt.

$16.99

$

Usually ships in 3-6 days

0

27

MTD 786-0187-0637

Shift Cover Brkt.

$23.99

$

Usually ships in 3-6 days

0

28

MTD 786-0193-0637

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

29

MTD 934-04231

Wheel Ass'y 16.0 x 4.6 x 8

$257.99

$

Usually ships in 3-6 days

0

30

MTD 936-3020

Flat Washer .266 ID x .625 OD
(Superseded to 736-3020)

$

$

Not available

31

MTD 784-0158A

Belt Cover
(Superseded to 784-0158B)

Variations

MTD 784-0158A-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$95.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

32

MTD 710-0606

Hex Cap Screw1/4-20 x 1.5" Lg.

$5.49

$

In Stock, Qty 10

0

33

MTD 712-04064

Flange Locknut 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$12.99

$

In Stock, only 2 left!

0

35

MTD 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

36

MTD 723-0381

Counterweight 40 Lbs.

$

$

Not available

37

MTD 936-0326

Flat Washer .510 ID x 1.0 OD x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

38

MTD 936-0921

L-Washer 1/2" ID
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

39

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .38

$4.49

$

In Stock, Qty 7

0

40

MTD 710-1017

Torx Mach. AB-Tapp Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

41

MTD 712-0392

Hex Lock Stop Nut 1/4-28

$6.99

$

In Stock, only 1 left!

0

42

MTD 710-0506

Hex Hd. Scr. 1/2-13 X 5.5

$10.99

$

In Stock, only 2 left!

0

43

MTD 936-0179

Flat Washer 1/2 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

44

MTD 731-1595

Counterweight

$156.99

$

Usually ships in 3-6 days

0

45

MTD 750-0194

Hub, .636 ID x 1.0 OD x .94

$9.49

$

In Stock, only 4 left!

0

46

MTD 936-0921

Lockwasher 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

47

MTD 912-3066

Hex Nut 1/2-20

$6.99

$

In Stock, only 1 left!

0
