CRT 1350 LS (960930016-00) - Husqvarna Rear-Tine Tiller (2009-12) Transmission Parts Diagram

Rear-Tine Tiller

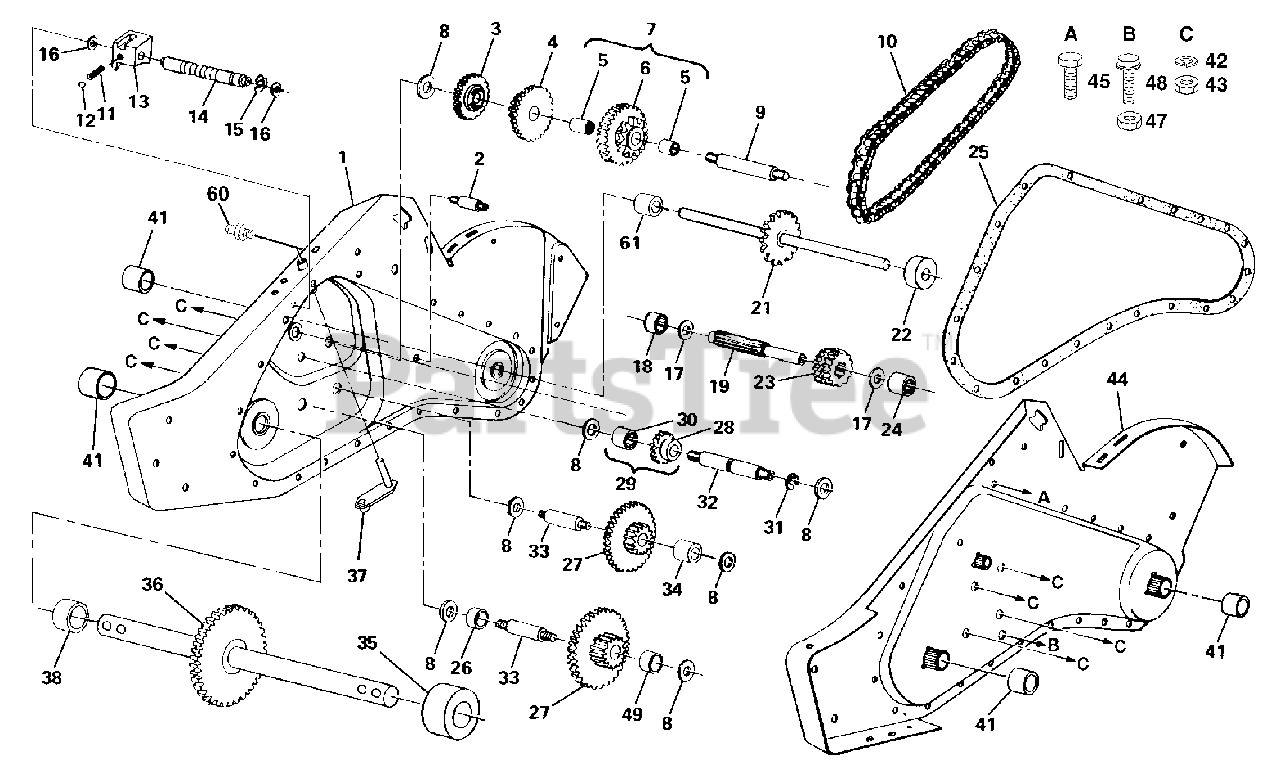

Transmission Parts Diagram

  • Title

Husqvarna 532181337

Transmission Assembly
(Superseded to 532183655)

$1082.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532181332

Gearcase, R.H. w/Bearing
(Superseded to 583110401)

Note: (Includes Key No. 18)

$1082.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532181362

Spacer Gearcase
(Superseded to 583110501)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532175035

Gear Reverse
(Superseded to 583066801)

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532105345

Gear, Cluster, Red 1st & 2nd

$68.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532100413

Bearing, Needle
(Superseded to 585695501)

$34.99

$

In Stock, only 2 left!

0

6

Husqvarna 532144564

Sprocket and Tine Assembly

$

$

Not available

7

Husqvarna 532144563

Sprocket Assembly w/Bearing
(Superseded to 532144564)

Note: (Includes Key No. 5)

$

$

Not available

8

Husqvarna 532004358

Washer

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532008358

Shaft, Reduction (1st)

$17.99

$

In Stock, only 4 left!

0

10

Husqvarna 532008371

Chain, Roller

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532100371

Spring, Shift, Fork

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532124697

Ball, Steel
(Superseded to 532100482)

$7.49

$

In Stock, Qty 12

0

13

Husqvarna 532008353

Fork, Shift

$34.99

$

In Stock, only 2 left!

0

14

Husqvarna 532175372

Shaft, Reduction
(Superseded to 583068601)

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 532154467

Washer, Seal

$7.49

$

In Stock, only 2 left!

0

17

Husqvarna 532001370

Washer, Thrust 5/8 ID

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532124792

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 9

0

19

Husqvarna 532150695

Shaft Input

$66.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532431519

Tine Shaft Assembly
(Superseded to 583470701)

$121.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532106181

Spacer 1,008 x 1-3/4 x 0,645

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532175031

Pinion, Input
(Superseded to 586196401)

$62.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532005020

Bearing, Needle

$20.99

$

In Stock, only 4 left!

0

25

Husqvarna 532431023

Gasket, Gearcase

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532106389

Spacer 0,765 I.D. x 1,12 x 5/8

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532100433

Gear Cluster

$62.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532008357

Gear, Reverse Idler

$36.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532144562

Gear, Assembly, Reverse Idler

Note: (Includes Key Nos. 28 and 30)

$56.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532006803

Bearing, Needle

$11.99

$

In Stock, only 4 left!

0

31

Husqvarna 812000040

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532008356

Shaft, Reverse Idler

$

$

Not available

33

Husqvarna 532100016

Shaft, Reduction (2nd)

$51.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532106392

Spacer 0,765 I.D. x 1-1/8 x 1-3/8

$

$

Not available

35

Husqvarna 532106394

Spacer LH

$31.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532100436

Shaft Assembly

$148.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142145

Bracket, Asm.

$

$

Not available

38

Husqvarna 532106393

Spacer RH

$34.99

$

In Stock, only 1 left!

0

41

Husqvarna 532155236

Seal, Asm OIl

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

Push Nut 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 873610700

Nut, Hex 7/16-20

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 532181323

Gearcase, L.H. w/Bearing
(Superseded to 583110301)

Note: (Includes Key No. 24)

$1082.99

$

Usually ships in 3-10 days

0

45

Husqvarna 817000510

Bolt 5/16-18 He Whs Hd Lckserr

$7.49

$

In Stock, Qty 20+

0

47

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532100107

Screw 5/16-18 x 4

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532106391

Spacer 0.765 ID x 1.12 x 3/4

$15.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532183226

Fitting, Grease

$7.49

$

In Stock, Qty 11

0

61

Husqvarna 532431501

Spacer 1.015 x 1.50 x .765
(Superseded to 583470401)

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532006066

Grease #1
(Superseded to 585517301)

$

$

Not available

Husqvarna 532165140

Bearing Assembly

$93.99

$

In Stock, Qty 9

0
