CRP 218520 (7800968B-00) - Snapper 21" Walk-Behind Mower, 8.5hp Deck, Engine & Blade Group Parts Diagram

21" Walk-Behind Mower, 8.5hp

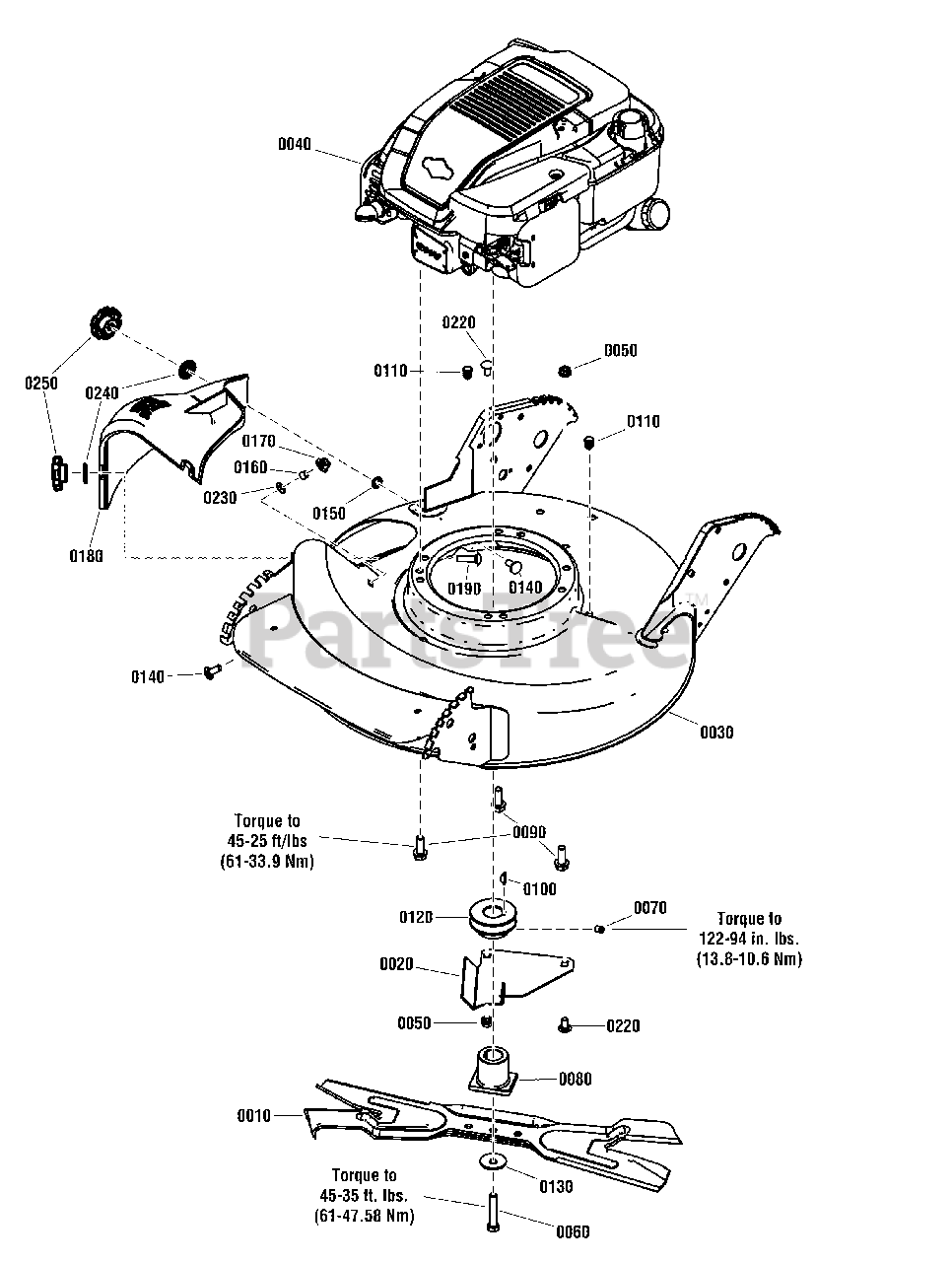

Deck, Engine & Blade Group Parts Diagram

  • Title

0010

Snapper 7026407AYP

BLADE, 21" Ninja Mulching

$54.99

$

Usually ships in 2-12 days

0

0020

Snapper 7074568YP

COVER, Belt, Zinc/Clear

$12.99

$

Usually ships in 2-12 days

0

0030

Snapper 7400026DYP

WELDMENT, Deck, 21" AIR, Non-Adj.
(Superseded to 7600034DYP)

$359.99

$

Usually ships in 2-12 days

0

0040

Snapper 123P32-0065-F1

* ENGINE, B&S PRO, 8.5TP, 123P32-0065-F1

$

$

Currently unavailable

0050

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 703999

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper 704003

SET SCREW, 5/16-18 x 1/2" Hex Recess

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 7101414YP

HUB, Blade, 21 WBM, 25MM ID, 2 Position

$16.99

$

In Stock, only 1 left!

0

0090

Snapper 704000

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1

$4.99

$

In Stock, only 1 left!

0

0100

Snapper 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 20+

0

0110

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 7105122YP

PULLEY, Engine (25mm I. D. x 2-1/8 O.D.)

$40.99

$

In Stock, only 1 left!

0

0130

Snapper 703963

WASHER, Cone

$6.99

$

In Stock, only 2 left!

0

0140

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0160

Snapper 7024340SM

SPACER

$4.99

$

In Stock, only 4 left!

0

0170

Snapper 704001

NUT, Hex Flange, 5/16-18

$4.49

$

In Stock, Qty 17

0

0180

Snapper 7029149YP

COVER, Mulching, 21" Deck

$33.99

$

In Stock, Qty 20+

0

0190

Snapper 704002

BOLT, 5/16-18 X 1.125, Carriage, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0230

Snapper 7101022YP

KNOB, Flutted

$7.49

$

In Stock, Qty 5

0

0240

Snapper 703936

WASHER, .325 ID X .850 OD X .041 Thk, Internal External Lock, Type A, ZC/CL

$4.49

$

In Stock, only 2 left!

0
