CRP 216018KWV (80656) - Snapper 21" Walk-Behind Mower, 6hp ACCESSORY GRASS BAG Parts Diagram

21" Walk-Behind Mower, 6hp

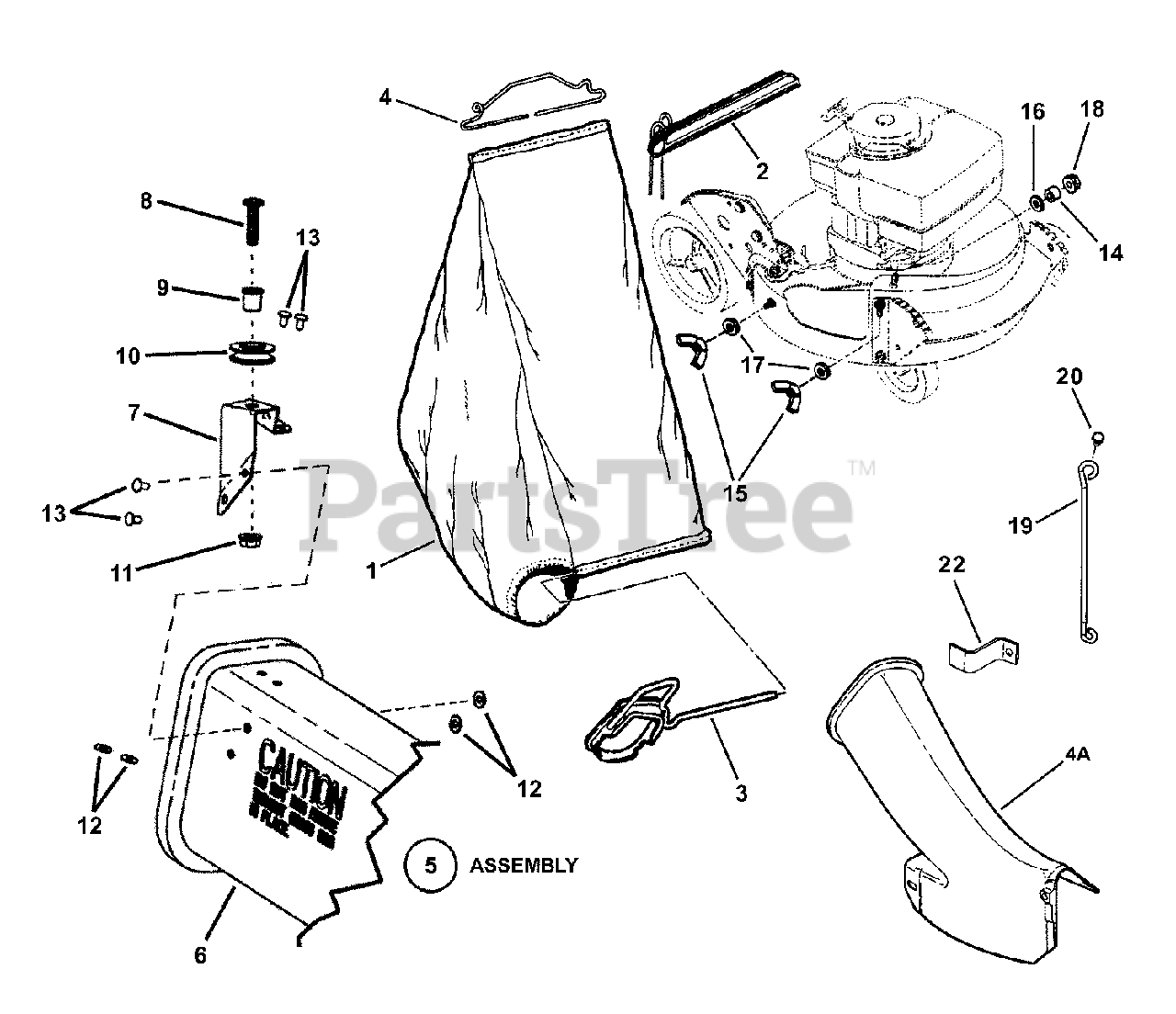

ACCESSORY GRASS BAG Parts Diagram

  • Title

Snapper 7060936

KIT, Grass Catcher
(Superseded to 7060936YP)

Note: (Incl. Items 1, 2, 3 & 4)

$

$

Not available

1

Snapper 7075766

* GRASS BAG, Slider Type (Black w/Gray Letters)
(Superseded to 7103205YP)

$

$

Not available

2

Snapper 7050711

ASSEMBLY, Slider
(Superseded to 7050711YP)

Note: Includes Slider (18164) & Cord (16124)

$16.99

$

In Stock, Qty 8

0

3

Snapper 7042489

CONNECTOR, Grass Bag
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

4

Snapper 7019247

WIRE, Bag Connector (12" Wide)
(Superseded to 7019247YP)

$22.99

$

In Stock, only 2 left!

0

4A

Snapper 7016050

ADAPTER, Grass Bag
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

5

Snapper 7058037

ASSEMBLY, Grass Bag Adapter (Incl. items 11 thru 18)
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

6

Snapper 7047081

ADAPTER, Grass Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper 7047082

BRACKET, Rope Pulley
(Superseded to 7047082AYP)

$9.49

$

Usually ships in 2-12 days

0

8

Snapper 7091984

SCREW, 5/16-18 x 1-1/4" Pan Head Machine
(Superseded to 7091984YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

10

Snapper 7024228

PULLEY, Plastic
(Superseded to 7024228SM)

$4.99

$

In Stock, only 4 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7072107

WASHER, 15/32" Flat
(Superseded to 7072107YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7024340

SPACER, .316 I.D. x .375 O.D. x .310 thick
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

15

Snapper 7024085

NUT, 5/16-18 Wing (Nylon Patch)
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

16

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

19

Snapper 7043327

BRACE, Bag Adapter, KWV
(Superseded to 7043327YP)

Note: CP216018KWV, CRP216018KWV

$36.99

$

Usually ships in 2-12 days

0

20

Snapper 7078102

SCREW, M6 x 1.0 x 30MM Hex Head Cap
(Superseded to 7078102YP)

Note: CP216018KWV, CRP216018KWV

$3.99

$

In Stock, only 1 left!

0

21

Snapper 7078101

SLEEVE, .237/.242 I.D. x .3135/.3185 O.D. x .748 (not shown)
(Superseded to 7078101YP)

Note: CP216018KWV, CRP216018KWV

$7.99

$

In Stock, only 1 left!

0

22

Snapper 7075306

STANDOFF
(Superseded to 7075306YP)

Note: CP215518HV

$11.99

$

Usually ships in 2-12 days

0
