CR 30 (13AC26JD897) - Columbia 30" Rear-Engine Riding Mower (2013) Seat, Fuel Tank & Electrical Parts Diagram

30" Rear-Engine Riding Mower

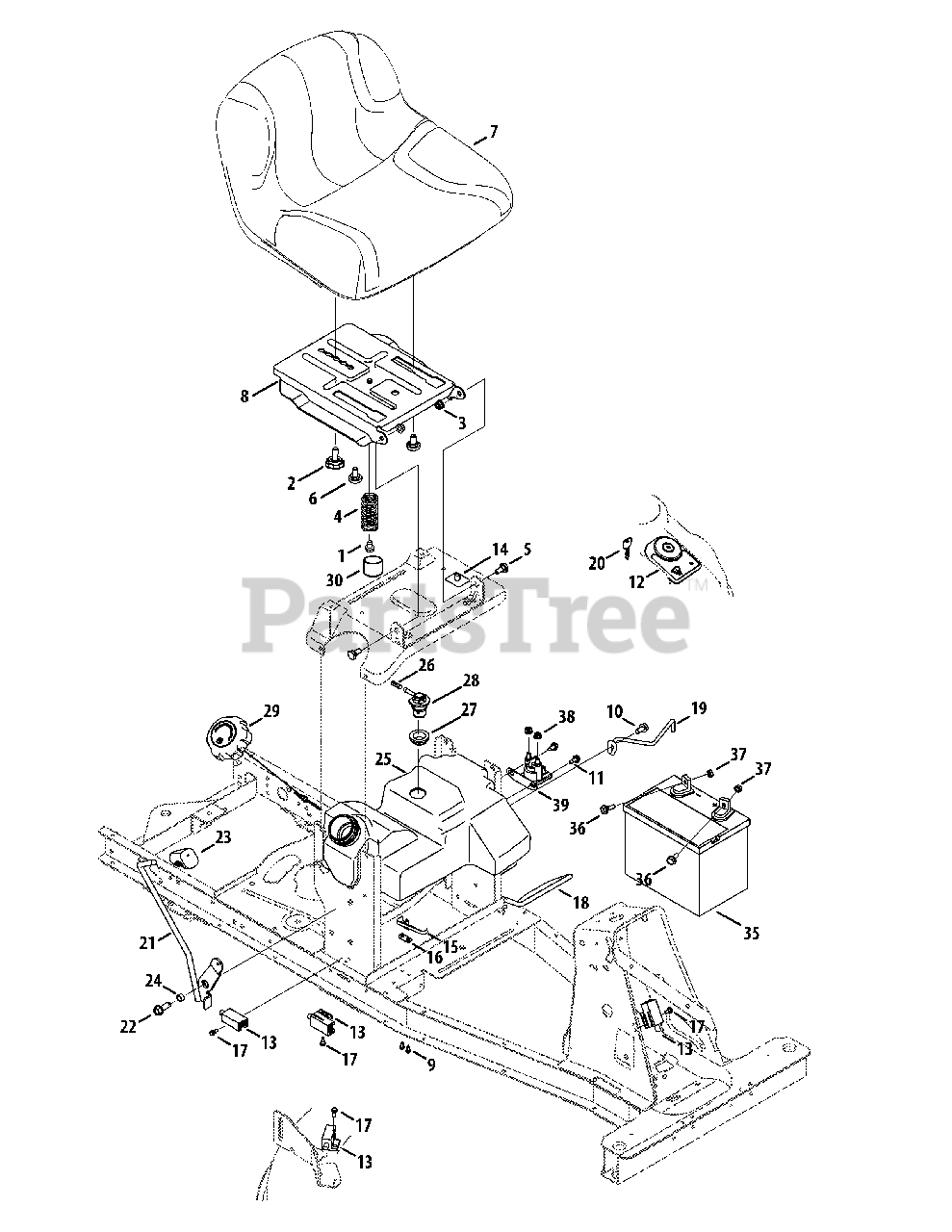

Seat, Fuel Tank & Electrical Parts Diagram

  • Title

1

MTD 710-0607

Tap Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

2

MTD 710-06095

Hex Flange Screw, 3/8-16 x .75

$3.99

$

Usually ships in 3-6 days

0

3

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

4

MTD 732-04905

Seat Spring

$3.99

$

In Stock, only 2 left!

0

5

MTD 938-0140

Shldr Spacer, .435 X .178-5/16 X .56
(Superseded to 738-0140)

$

$

Not available

6

MTD 738-04012B

Shoulder Screw, .625 x .145, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

7

MTD 757-05003

Seat

$275.99

$

Usually ships in 3-6 days

0

8

MTD 783-07213A-0637

Seat Pivot Bracket

$33.99

$

In Stock, only 2 left!

0

9

MTD 710-0227

Screw, #8

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

12

MTD 925-04227B

Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

13

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

14

MTD 925-05013

Seat Switch

$31.99

$

In Stock, only 2 left!

0

15

MTD 725-1643

Switch Spring

$10.99

$

In Stock, only 1 left!

0

16

MTD 926-0320

Insulator Plate

$6.99

$

In Stock, Qty 11

0

17

MTD 738-04237A

Shoulder Screw, #10-32, .500

$6.49

$

In Stock, Qty 7

0

18

MTD 747-06131A

Battery Rod
(Superseded to 747-06131B)

$19.99

$

In Stock, Qty 10

0

19

MTD 747-06148

Battery Hold Down Bracket

$6.49

$

In Stock, only 1 left!

0

20

MTD 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

21

MTD 683-04754-0637

PTO Handle Assembly

$13.99

$

Usually ships in 3-6 days

0

22

MTD 710-04683A

Tap Screw, 3/8-16, 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

23

MTD 720-04049A

Handle Grip, 3/8

$16.99

$

In Stock, only 1 left!

0

24

MTD 750-0526

Spacer, .380 ID x .50 OD x .265

$4.99

$

In Stock, only 1 left!

0

25

MTD 951-04366B

Fuel Tank, 1-3 Gal.
(Superseded to 951-04366C)

$89.99

$

Usually ships in 3-6 days

0

26

MTD 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

27

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

28

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

29

MTD 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

35

MTD 925-1707D

Battery, 155 CCA

$

$

Not available

36

MTD 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

37

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

MTD 725-04439

Solenoid-12 volt
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

MTD 925-06042

Wiring Harness

Note: (Not Shown)

$148.99

$

Usually ships in 3-6 days

0
