CR 30 (13A726JD897) - Columbia 30" Rear-Engine Riding Mower (2018) Drive Parts Diagram

30" Rear-Engine Riding Mower

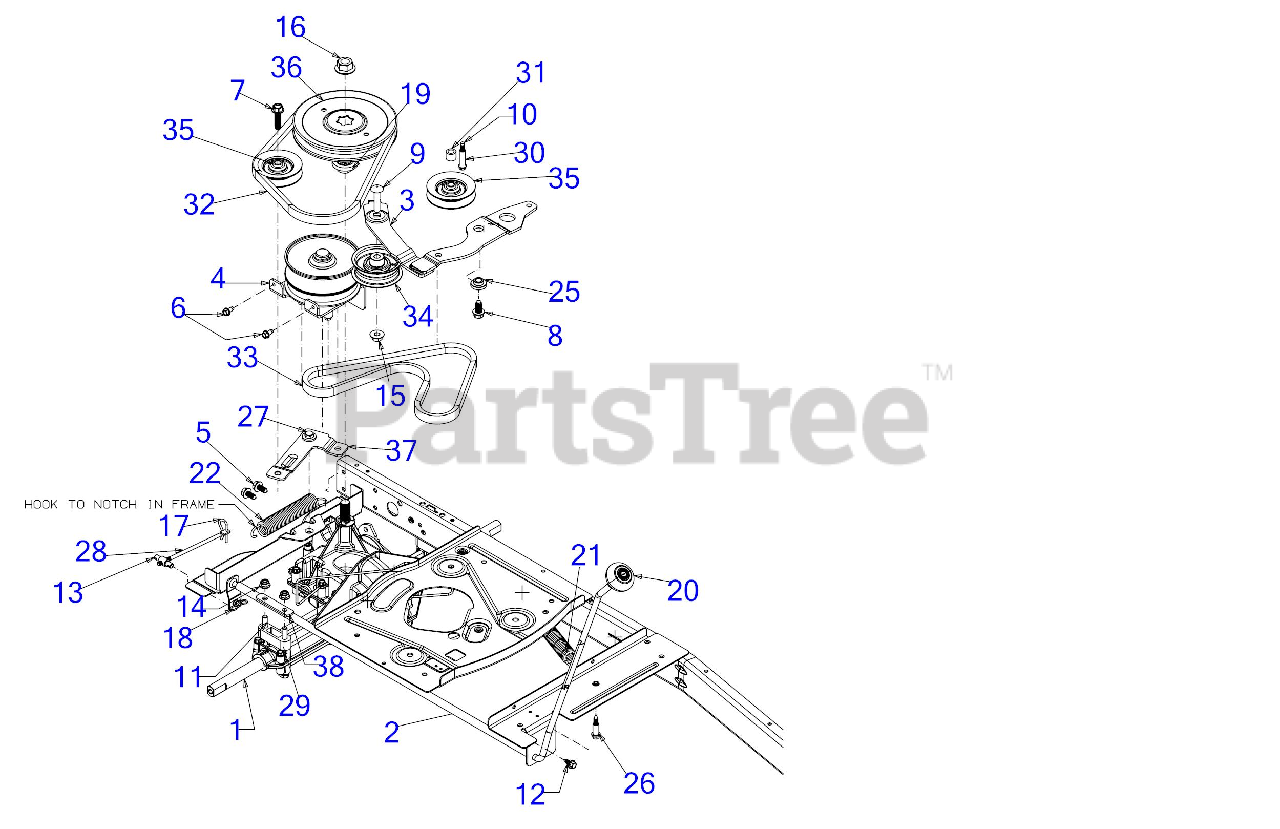

Drive Parts Diagram

  • Title

1

MTD 918-05056B

TRANSMISSION ASSEMBLY
(Superseded to 918-05056C)

Note: (See Separate Breakdown)

$636.99

$

In Stock, only 1 left!

0

2

MTD 647-05114

SHIFT HANDLE ASSEMBLY

$48.99

$

In Stock, only 1 left!

0

3

MTD 683-04768A-0637

DRIVE IDLER ASSEMBLY

$19.99

$

In Stock, only 1 left!

0

4

MTD 683-05057

BRACKET ASSEMBLY
(Superseded to 683-05057A)

$106.99

$

In Stock, only 1 left!

0

4

MTD 956-04015B

VARIABLE SPEED PULLEY ASSEMBLY 4.75 OD
(Superseded to 656P05011)

Note: (Not Shown)

$103.99

$

In Stock, Qty 20+

0

4

MTD 941-0600

BALL BEARING

Note: (Not Shown)

$25.99

$

In Stock, Qty 20+

0

4

MTD 710-0627

SCREW 5/16-24 x .750 GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0343

WASHER-5/16 x 1.25X 1.27

Note: (Not Shown)

$4.49

$

In Stock, Qty 7

0

4

MTD 718-04261

BEARING CUP

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

4

MTD 710-0778

SCREW 1/4-20 x 1.50"

Note: (Not Shown)

$4.49

$

In Stock, only 1 left!

0

5

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-06016

SCREW 3/8-16 x 1.375

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, only 2 left!

0

9

MTD 710-06234

BOLT 3/8-16 x 1.69 GR5

$6.49

$

Usually ships in 3-6 days

0

10

MTD 710-1026

SCREW 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

11

MTD 710-1266

SCREW 5/16-18X3.5 GR5

$9.99

$

Usually ships in 3-6 days

0

12

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

13

MTD 711-06141

ADJUSTUSTMENT FERRULE 1/4-20 x 1.00

$42.99

$

Usually ships in 3-6 days

0

14

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

15

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

16

MTD 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, only 1 left!

0

17

MTD 914-0209

COTTER PIN

$3.99

$

In Stock, only 2 left!

0

18

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

MTD 718-04407

PULLEY HUB

$12.99

$

In Stock, Qty 20+

0

20

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 2 left!

0

21

MTD 732-0459C

EXTENSION SPRING .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

22

MTD 732-05573

EXTENSION SPRING (.99 x 6.18)
(Superseded to 732-05573A)

$8.99

$

In Stock, only 2 left!

0

25

MTD 738-0372B

SHOULDER SPACER 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

26

MTD 738-05016A

SHOULDER SCREW .368 x .75 x 1/4-20

$3.99

$

In Stock, only 1 left!

0

27

MTD 738-05019

SHOULDER SCREW .560X.165

$3.99

$

Usually ships in 3-6 days

0

28

MTD 747-05593

SHIFT ROD

$5.99

$

In Stock, only 4 left!

0

29

MTD 948-0334

TRANSAXLE SPACER

$10.99

$

In Stock, only 1 left!

0

30

MTD 750-04456

SPACER:.260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

31

MTD 750-05563

SPACER

$7.49

$

Usually ships in 3-6 days

0

32

MTD 954-05040

V-BELT 5L x 35.25

$45.99

$

In Stock, Qty 6

0

33

MTD 954-04331

V-BELT 5L x 35.25

$45.99

$

In Stock, only 3 left!

0

34

MTD 756-04224

FLAT IDLER PULLEY 2.75 OD

$26.99

$

In Stock, Qty 20+

0

35

MTD 756-04325

V-IDLER PULLEY A x 3.06 OD

$24.99

$

In Stock, Qty 20+

0

36

MTD 756-04464

V-TYPE PULLEY 6.56" DIA

$20.99

$

Usually ships in 3-6 days

0

37

MTD 783-07248A

IDLER BRACKET REAR

$8.49

$

In Stock, only 1 left!

0

38

MTD 783-08131-0637

TRANSAXLE BRACKET

$4.49

$

Usually ships in 3-6 days

0
