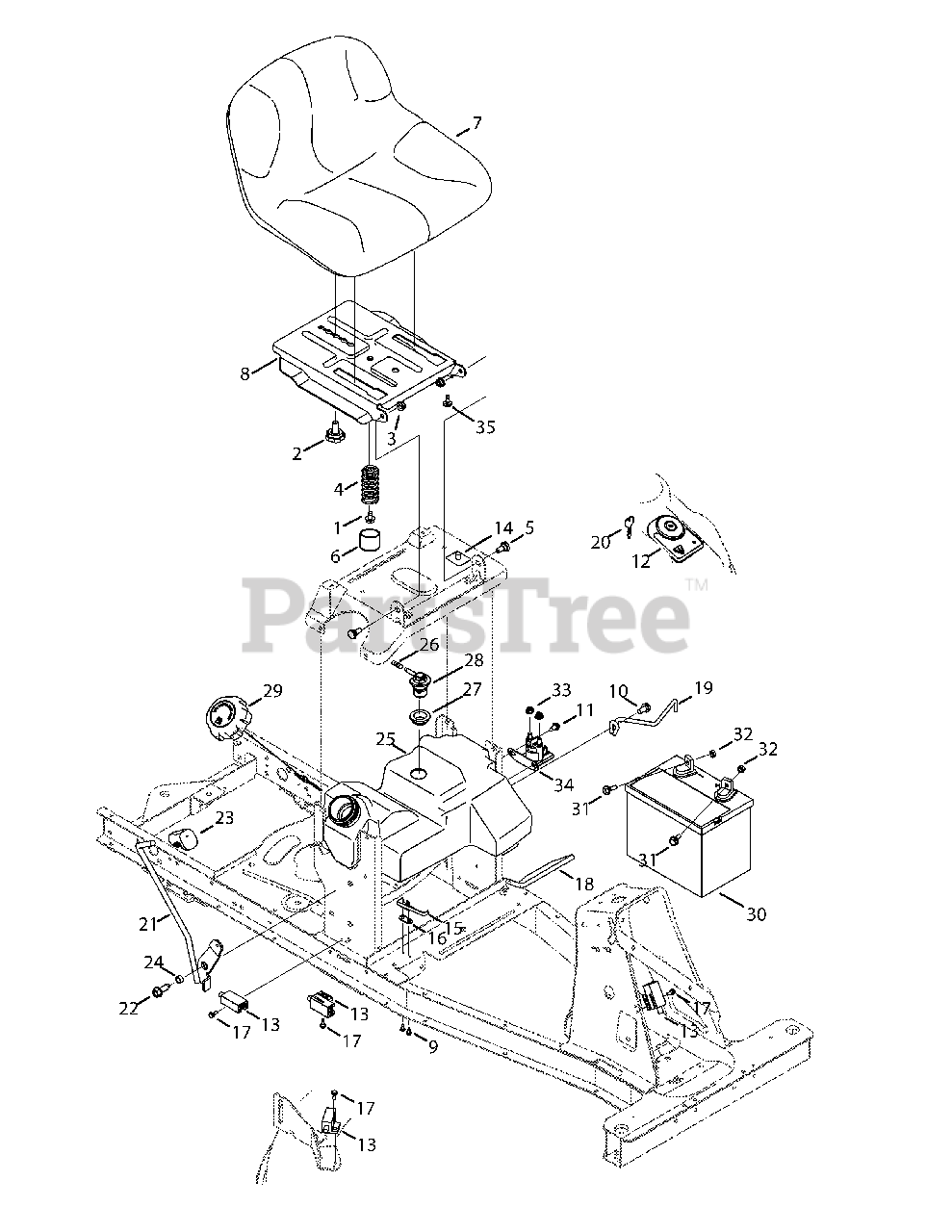

CR 30 (13A226JD897) - Columbia 30" Rear-Engine Riding Mower (2015) Seat, Fuel Tank & Electrical Parts Diagram

30" Rear-Engine Riding Mower

Seat, Fuel Tank & Electrical Parts Diagram

  • Title

1

MTD 710-0607

Tap Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

2

MTD 720-04009A

Knob, 3/8-16, .875

$16.99

$

In Stock, only 2 left!

0

3

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 732-04905

Seat Spring

$3.99

$

In Stock, only 2 left!

0

5

MTD 938-0140

Shldr Spacer, .435 X .178-5/16 X .56
(Superseded to 738-0140)

$

$

Not available

6

MTD 720-05005

Vinyl Cap, 1.188 x 1.00

$3.49

$

Usually ships in 3-6 days

0

7

MTD 757-04083A

Seat, Med. Back
(Superseded to 757-05229)

$231.99

$

Usually ships in 3-6 days

0

8

MTD 783-07213A-0637

Seat Pivot Bracket

$33.99

$

In Stock, only 2 left!

0

9

MTD 710-0227

Screw, #8

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

12

MTD 925-06119A

Key Switch, RMC
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

13

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 10

0

14

MTD 925-05013

Seat Switch

$31.99

$

In Stock, only 4 left!

0

15

MTD 725-1643

Switch Spring

$10.99

$

In Stock, only 1 left!

0

16

MTD 926-0320

Insulator Plate

$6.99

$

In Stock, Qty 11

0

17

MTD 738-04237A

Shoulder Screw, #10-32, .500

$6.49

$

In Stock, Qty 7

0

18

MTD 747-06131A

Battery Rod
(Superseded to 747-06131B)

$19.99

$

In Stock, Qty 10

0

19

MTD 747-06148

Battery Hold Down Bracket

$6.49

$

In Stock, only 1 left!

0

20

MTD 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

20

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

21

MTD 683-04754-0637

PTO Handle Assembly

$13.99

$

Usually ships in 3-6 days

0

22

MTD 710-04683C

Tap Screw, 3/8-16, 1.000

$6.49

$

In Stock, only 4 left!

0

23

MTD 720-04049A

Handle Grip, 3/8

$16.99

$

In Stock, only 1 left!

0

24

MTD 750-0526

Spacer, .380 ID x .50 OD x .265

$4.99

$

In Stock, only 1 left!

0

25

MTD 951-04366B

Fuel Tank, 1-3 Gal.
(Superseded to 951-04366C)

$89.99

$

Usually ships in 3-6 days

0

26

MTD 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

27

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

28

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

29

MTD 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 4 left!

0

30

MTD 925-1707D

Battery, 155 CCA

$

$

Not available

31

MTD 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

32

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

33

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

MTD 725-06153

Solienoid, 12v
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

35

MTD 935-0199A

Rubber Bumper, .63 Dia
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

MTD 725-06274

Wiring Harness, RMC (Not Shown)
(Superseded to 925-06274B)

Note: (Not Shown)

$148.99

$

In Stock, only 1 left!

0

RMC (Reverse Mowing Control)

$

$

Not available
