CR 30 (13A226JD897) - Columbia 30" Rear-Engine Riding Mower (2014) Mower Deck 30-Inch Parts Diagram

30" Rear-Engine Riding Mower

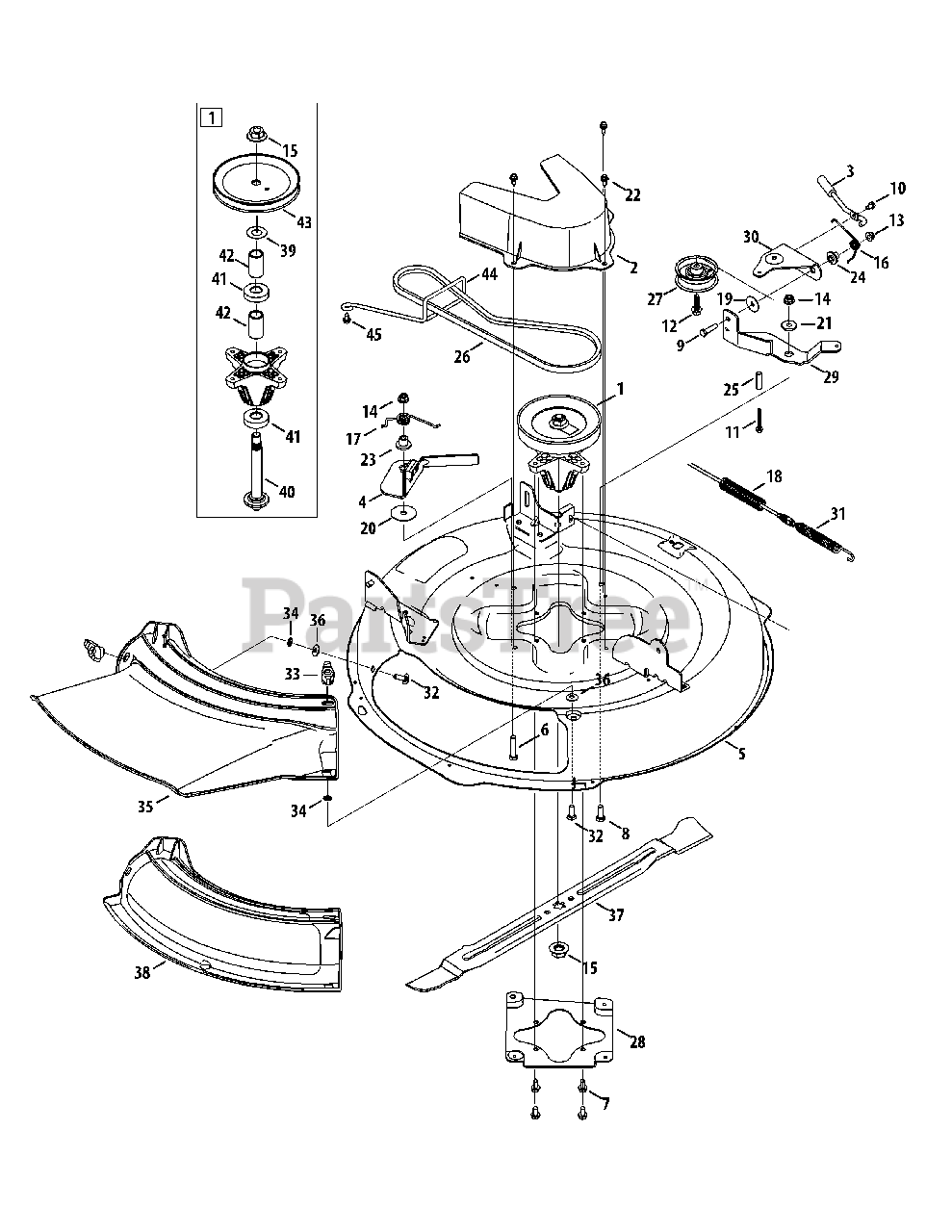

Mower Deck 30-Inch Parts Diagram

  • Title

1

MTD 918-04822A

Spindle Pulley Assembly 6.3 Dia.
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

2

MTD 631-05024

Deck Belt Cover

$28.99

$

In Stock, Qty 20+

0

3

MTD 647-05028

Idler Rod Assembly

$19.99

$

In Stock, only 3 left!

0

4

MTD 983-05034

PTO Brake Assembly Bracket

$16.99

$

In Stock, Qty 18

0

5

MTD 983-05040A-0637

Deck, 30" w/out Nozzle
(Superseded to 983-05040E-0637)

$270.99

$

In Stock, only 1 left!

0

6

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-1260A

Tap Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0514

Hex Head Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

Hex Cap Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Tap Scew, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1026

Tap Screw 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

12

MTD 710-1315

Tap Screw 3/8-16 x 1.250

$4.49

$

In Stock, only 2 left!

0

13

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 5

0

14

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 732-05046

PTO Torsion Spring

$4.49

$

In Stock, Qty 20+

0

17

MTD 732-05046

Brake Torsion Spring

$4.49

$

In Stock, Qty 20+

0

18

MTD 732-0583

Compression Spring .625 x 4.0

$12.99

$

In Stock, Qty 19

0

19

MTD 736-0362

Flat Washer .330 x 1.250 x .060

$4.49

$

In Stock, Qty 7

0

20

MTD 736-3040

Flat Washer .406 x 1.920 x .060

$6.49

$

In Stock, Qty 8

0

21

MTD 938-0347

Shoulder Spacer .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

22

MTD 738-04184A

Shoulder Screw .368 x.113: 1/4-20

$6.99

$

In Stock, Qty 11

0

23

MTD 738-05021

Shoulder Spacer .625 ID x .169

$4.49

$

In Stock, Qty 11

0

24

MTD 738-05022

Shoulder Spacer .134 x .500 x .438

$4.49

$

In Stock, Qty 20+

0

25

MTD 750-04456

Spacer .260 x .372 x 1.420 LG

$7.49

$

In Stock, only 3 left!

0

26

MTD 954-05001

V-Type Belt 5L, 43.5 Lg.

$45.99

$

In Stock, Qty 20+

0

27

MTD 756-04224

Flat Idler Pulley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

28

MTD 783-08047A

Deck Spindle Support Bracket

Variations

MTD 783-08047A-0637

Spindle Support Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

29

MTD 783-08128

Lower Floating Idler Bracket

$16.99

$

In Stock, Qty 20+

0

30

MTD 783-08226-0637

Upper Floating Idler Bracket
(Superseded to 783-08226A-0637)

$12.99

$

In Stock, Qty 20+

0

31

MTD 946-04802A

PTO Cable

$38.99

$

In Stock, only 1 left!

0

32

MTD 710-04998

Carriage Screw 5/16-18 x 1.00

$5.99

$

In Stock, Qty 5

0

33

MTD 720-04122

Wing Knob 5/16-18

$6.99

$

In Stock, Qty 12

0

34

MTD 726-0201

Speed Nut .3125 ID

$6.99

$

In Stock, only 2 left!

0

35

MTD 731-10267

Chute Deflector

$32.99

$

In Stock, only 1 left!

0

36

MTD 736-0242

Cupped Washer .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

37

MTD 942-04385

Cutting Blade 30.00" 3-IN-1

$37.99

$

In Stock, Qty 11

0

38

MTD 731-09312

Mulch Plug (optional)

$23.99

$

In Stock, only 3 left!

0

39

MTD 936-0351

Shim Washer .760 x 1.500 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

40

MTD 738-1186A

Spindle Shaft 6.11 Lg.

$49.99

$

In Stock, Qty 14

0

41

MTD 941-0919B

Ball Bearing .787 ID x 1.85 OD x .551

$21.99

$

In Stock, Qty 20+

0

42

MTD 750-04936

Spacer .792 x 1.060 x 1.860 Lg.

$6.99

$

In Stock, Qty 20+

0

43

MTD 956-1227

Deck Pulley 6.3 DIA

$26.99

$

In Stock, only 4 left!

0

44

MTD 747-06126A

Belt Keeper

$17.99

$

Usually ships in 3-6 days

0

45

MTD 710-1652

Hex Wash TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0
