CPW 2800 (UT-01819) - Homelite Pressure Washer Pump Assembly (07837-24) Parts Diagram

Pressure Washer

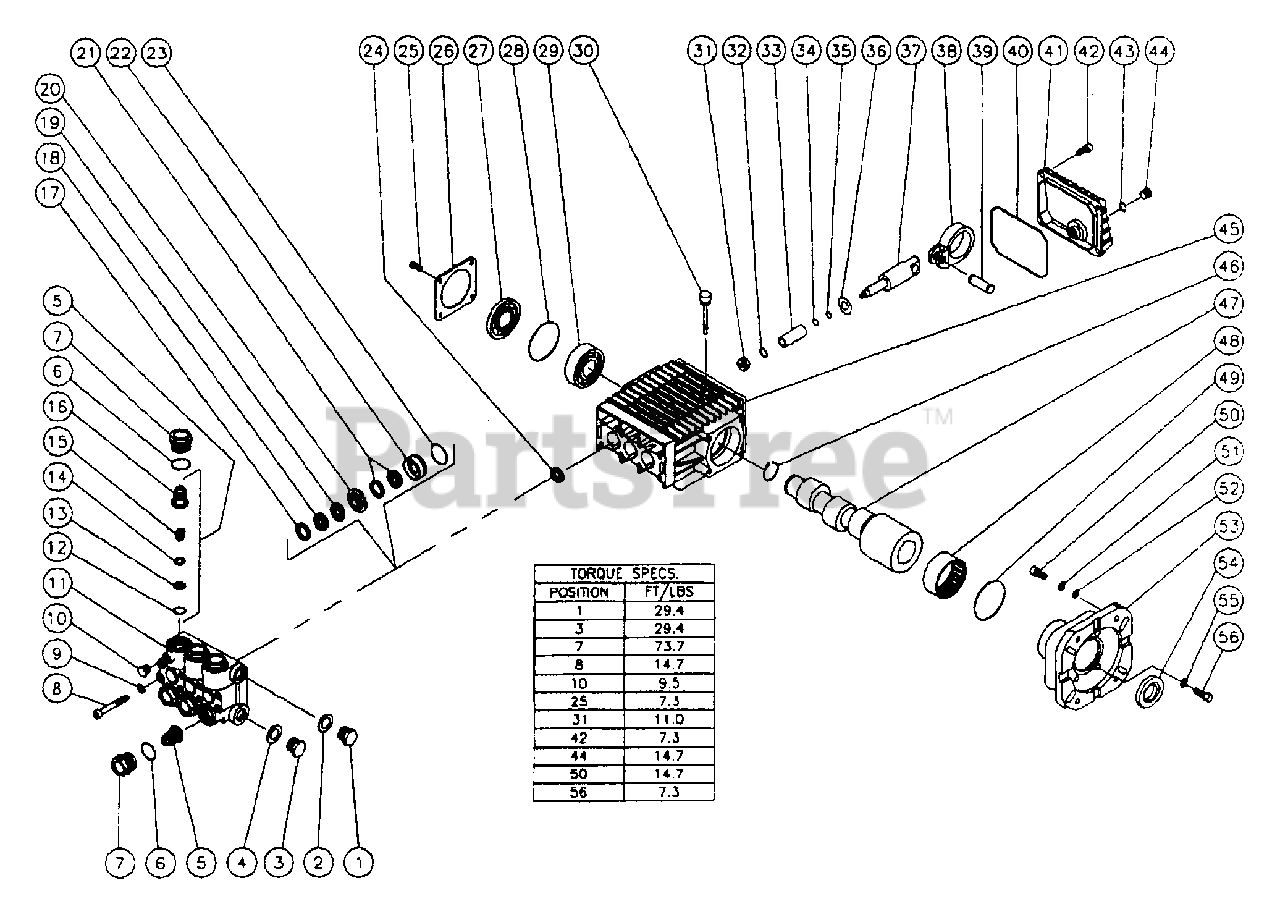

Pump Assembly (07837-24) Parts Diagram

  • Title

Homelite 0783724

Pump Assembly

Note: For CPW2800

$

$

Currently unavailable

1

Homelite 0812302

Plug

Note: Torque Specs, Ft/Lbs 29.4

$

$

Not available

2

Homelite 0812369

Washer

$

$

Currently unavailable

3

Homelite 0812370

Plug

Note: Torque Specs, Ft/Lbs 29.4

$

$

Currently unavailable

4

Homelite 0812371

Washer

$

$

Currently unavailable

5

N/A Sep.

Valve Assy.

Note: Not Available Separately See P/N 0783727

$

$

Not available

6

Homelite 0812310

O-ring

$

$

Not available

7

Homelite 0812373

Valve Plug

Note: Torque Specs, Ft/Lbs 73.7

$

$

Currently unavailable

8

Homelite 0812334

Bolt

Note: Torque Specs, Ft/Lbs 14.7

$

$

Not available

9

Homelite 0762819

Lockwasher

$

$

Currently unavailable

10

Homelite 0812375

Plug

Note: Torque Specs, Ft/Lbs 9.5

$

$

Currently unavailable

11

Homelite 0812376

Pump Manifold

$

$

Currently unavailable

12

N/A Sep.

O-ring

Note: Not Available Separately See P/N 0783727

$

$

Not available

13

N/A Sep.

Valve Seat

Note: Not Available Separately See P/N 0783727

$

$

Not available

14

N/A Sep.

Valve Plate

Note: Not Available Separately See P/N 0783727

$

$

Not available

15

N/A Sep.

Valve Spring

Note: Not Available Separately See P/N 0783727

$

$

Not available

16

N/A Sep.

Valve Cage

Note: Not Available Separately See P/N 0783727

$

$

Not available

17

N/A Sep.

Head Ring

Note: Not Available Separately See P/N 07837-28

$

$

Not available

18

N/A Sep.

V-Packing

Note: Not Available Separately See P/N 07837-28

$

$

Not available

19

N/A Sep.

Stop Ring Packing

Note: Not Available Separately See P/N 07837-28

$

$

Not available

20

Homelite 0812377

Intermediate Ring

$

$

Currently unavailable

21

N/A Sep.

Low Pressure Seal

Note: Not Available Separately See P/N 07837-28

$

$

Not available

22

Homelite 0812378

Packing Retainer

$

$

Currently unavailable

23

Homelite 0812379

O-ring

$

$

Not available

24

Homelite 0783738

Seal

$

$

Currently unavailable

25

Homelite 0812381

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

26

Homelite 0812382

Retainer

$

$

Currently unavailable

27

Homelite 0812383

Oil Level Indicator

$

$

Currently unavailable

28

Homelite 0812336

O-ring

$

$

Not available

29

Homelite 0812384

Ball Bearing

$

$

Currently unavailable

30

Homelite 0812317

Oil Dipstick

$

$

Currently unavailable

31

Homelite 0812318

Nut

Note: Torque Specs, Ft/Lbs 11.0

$

$

Currently unavailable

32

Homelite 0812319

Washer

$

$

Not available

33

Homelite 0783731

Plunger

$

$

Currently unavailable

34

Homelite 0812321

O-ring

$

$

Currently unavailable

35

Homelite 0812322

Back-up Ring

$

$

Not available

36

Homelite 0812386

Flinger Washer

$

$

Not available

37

Homelite 0812387

Piston Guide

$

$

Currently unavailable

38

Homelite 0812388

Connecting Rod

$

$

Currently unavailable

39

Homelite 0812389

Pin/Connecting Rod

$

$

Currently unavailable

40

Homelite 0812390

O-ring

$

$

Currently unavailable

41

Homelite 0812391

Crankcase cover

$

$

Currently unavailable

42

Homelite 0812392

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

43

Homelite 0812393

O-ring

$

$

Not available

44

Homelite 0812306

Plug

Note: Torque Specs, Ft/Lbs 14.7

$13.99

$

Usually ships in 3-7 days

0

45

Homelite 0812394

Crankcase

$

$

Currently unavailable

46

Homelite 0812395

Snap Ring

$

$

Currently unavailable

47

Homelite 0812396

Crankshaft

$

$

Currently unavailable

48

Homelite 0812397

Bearing/Needle

$

$

Currently unavailable

49

Homelite 0812398

O-ring

$

$

Currently unavailable

50

Homelite 0812399

Bolt

Note: Torque Specs, Ft/Lbs 14.7

$

$

Currently unavailable

51

Homelite 0812372

Lockwasher

$

$

Currently unavailable

52

Homelite 0812374

Washer

$

$

Not available

53

Homelite 0812342

Flange

$

$

Currently unavailable

54

Homelite 0783732

Oil Seal

$

$

Not available

55

Homelite 0812308

Lockwasher

$

$

Currently unavailable

56

Homelite 0812331

Bolt

Note: Torque Specs, Ft/Lbs 7.3

$

$

Currently unavailable

Homelite 0783727

Valve Kit

Note: Inc. 6 each 12-16

$

$

Not available

Homelite 0783728

V-Packing Kit

Note: Inc. 3 each 17-19, 21, 23

$

$

Currently unavailable
