CPW 2800 (UT-01819) - Homelite Pressure Washer Frame Assembly Parts Diagram

Pressure Washer

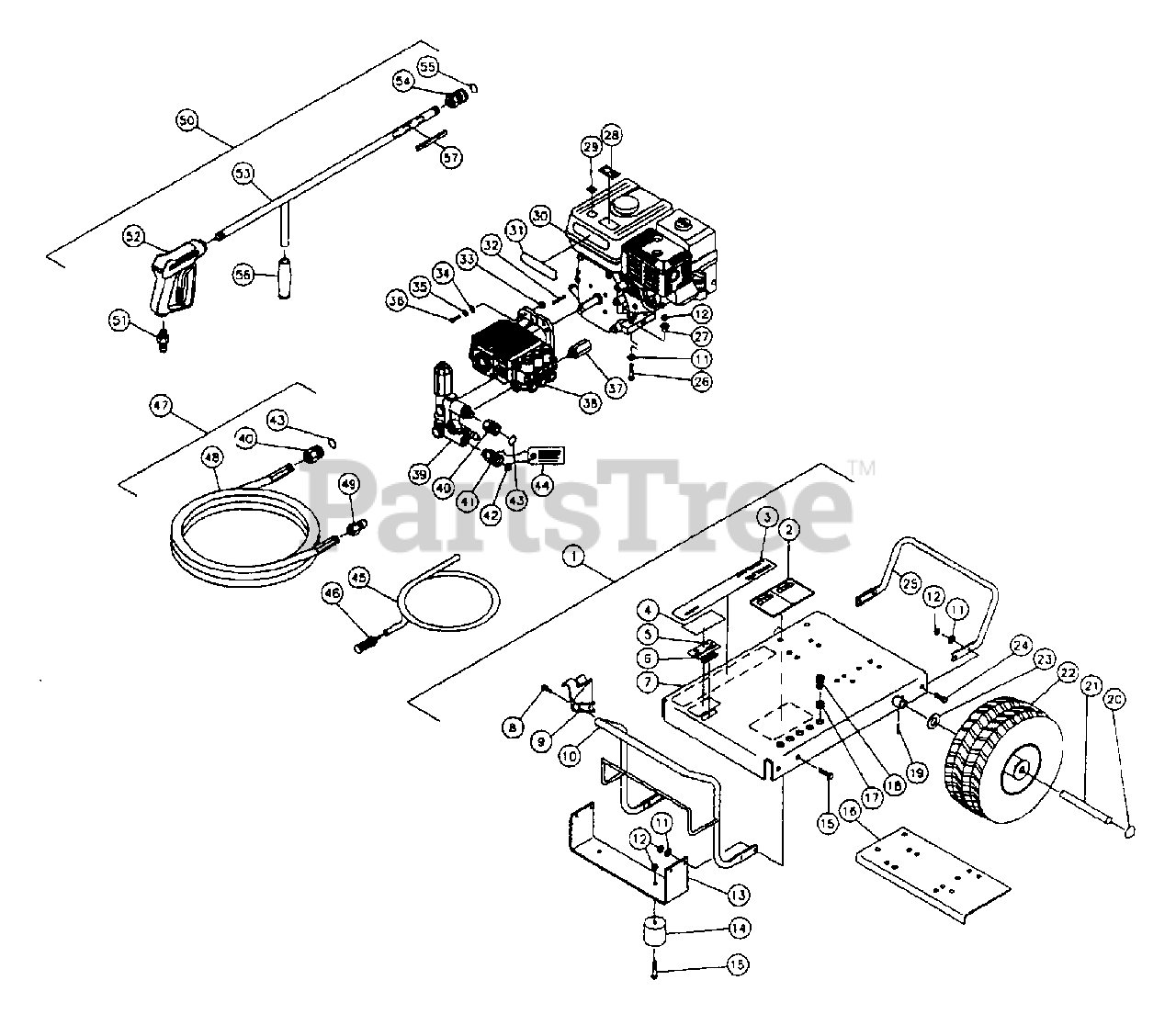

Frame Assembly Parts Diagram

  • Title

1

Homelite 0770132

Base Plate Assly

Note: Includes 7-17, 19-25

$

$

Currently unavailable

2

Homelite 0770112

Decal-Caution/Warning Statements

$

$

Currently unavailable

3

Homelite 0770151

Decal-CPW2800

$

$

Currently unavailable

4

Homelite 0757542

Decal-Clear Laminate

$

$

Currently unavailable

5

N/A

Decal-Silver Sticker I.D.

$

$

Not available

6

Homelite 0757536

Decal-Serial Number

$

$

Currently unavailable

7

Homelite 0770133

Base Plate

$

$

Currently unavailable

8

Homelite 0770143

Screw

$

$

Not available

9

Homelite 0770149

Wand Holder

$

$

Currently unavailable

10

Homelite 0770135

Handle-Front

$

$

Currently unavailable

11

Homelite 0770144

Washer

$

$

Currently unavailable

12

Homelite 0757539

Locknut

$

$

Currently unavailable

13

Homelite 0770137

Underbracket

$

$

Currently unavailable

14

Homelite 0770138

Isolator

$

$

Not available

15

Homelite 0770142

Bolt

$

$

Currently unavailable

16

Homelite 0770134

Support Bracket

$

$

Currently unavailable

17

Homelite 0770146

Grommet

$

$

Currently unavailable

18

Homelite 0783711

Spray Nozzle for 0004

$

$

Currently unavailable

Homelite 0783712

Spray Nozzle for 1504

$

$

Currently unavailable

Homelite 0783713

Spray Nozzle for 2504

$

$

Currently unavailable

Homelite 0783714

Spray Nozzle for 6540

$

$

Currently unavailable

Homelite 0783755

Spray Nozzle for 4004

$

$

Not available

19

Homelite 0770148

Roll Pin

$

$

Currently unavailable

20

Homelite 0770147

Hub Cap

$

$

Not available

21

Homelite 0770120

Axle

$

$

Currently unavailable

22

Homelite 0770139

Wheel

$

$

Currently unavailable

23

Homelite 0770145

Washer

$

$

Currently unavailable

24

Homelite 0770141

Bolt

$

$

Not available

25

Homelite 0770136

Handle-Rear

$

$

Currently unavailable

26

Homelite 0770102

Bolt

$

$

Currently unavailable

27

Homelite 0770130

Shim-Engine

$

$

Currently unavailable

28

Homelite 0770107

Decal-Warning: Muffler Hot

$

$

Currently unavailable

29

Homelite 0770116

Decal-Caution: Engine Cool

$

$

Currently unavailable

30

Engine-9.0 HP Honda

$

$

Not available

31

Homelite 0770115

Operating Instructions

$

$

Currently unavailable

32

Homelite 0770156

Key

$

$

Currently unavailable

33

Homelite 0770157

Shim-Pump

$

$

Currently unavailable

34

Homelite 0770154

Washer

$

$

Currently unavailable

35

Homelite 0770155

Lockwasher

$

$

Currently unavailable

36

Homelite 0770153

Bolt

$

$

Currently unavailable

37

Homelite 0783726

Heat Dump Valve

$

$

Currently unavailable

38

Homelite 0783724

Pump

$

$

Currently unavailable

39

Homelite 0783725

Unloader

$

$

Not available

40

Homelite 0783715

Quick Connect socket-3/8

$

$

Not available

41

Homelite 0770152

Garden Hose Swivel

$

$

Currently unavailable

42

Homelite 0757507

Inlet Screen

$

$

Not available

43

Homelite 0783722

O-ring

$

$

Currently unavailable

44

Homelite 0770105

Tag-Water Supply Inlet

$

$

Currently unavailable

45

Homelite 0757509

Detergent Hose-1/4

$

$

Not available

46

Homelite 0757508

Detergent Strainer

$

$

Not available

47

Homelite 0770122

High Pressure Hose Assembly

Note: Includes 40, 43, 48, 49

$

$

Not available

48

Homelite 0783749

High Pressure Hose

$

$

Currently unavailable

49

Homelite 0783716

Quick connect Plug-3/8"

$

$

Not available

50

Homelite 0770129

Gun-Wand Assembly

Note: Includes 51-54, 56

$

$

Currently unavailable

51

Homelite 0783717

Quick connect Plug-3/8

$

$

Not available

52

Homelite 0783718

Gun Assembly

$

$

Currently unavailable

53

Homelite 0783720

Wand with Handle

$

$

Currently unavailable

54

Homelite 0783719

Quick Connect Socket-1/4"

$

$

Not available

55

Homelite 0783721

O-ring

$

$

Currently unavailable

56

Homelite 0783733

Handle Grip

$

$

Currently unavailable

57

Homelite 0770114

Decal-Warning: Risk of Injection

$10.99

$

Usually ships in 3-7 days
