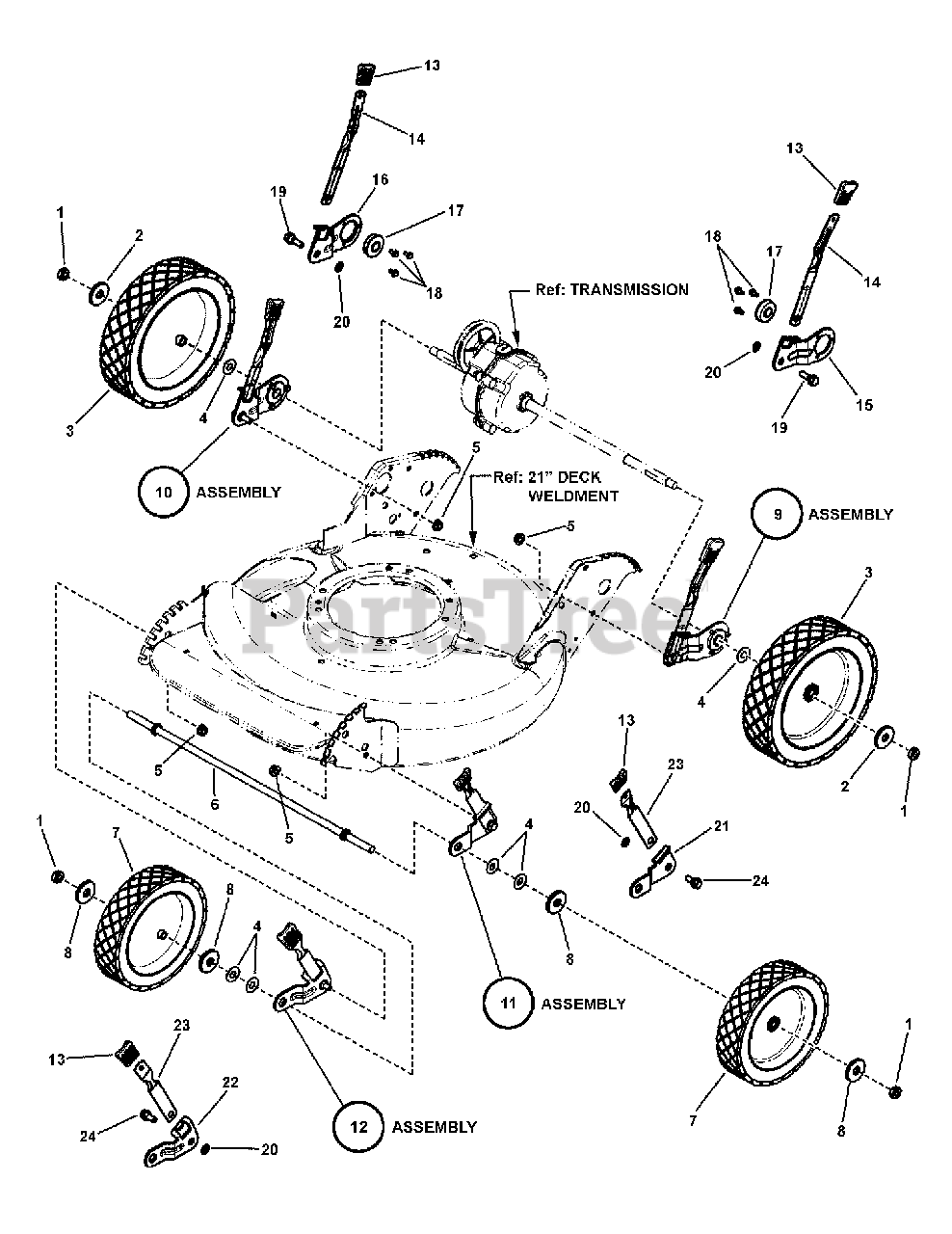

CP 218520 (7800848) - Snapper 21" Walk-Behind Mower, 8.75hp Wheel & Height-of-Cut Assembly Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

Wheel & Height-of-Cut Assembly Group Parts Diagram

  • Title

1

Snapper 7090377

NUT, 7/16-20 Hex Center lock Jam, GR 5, YZ
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

2

Snapper 7031960

HUBCAP
(Superseded to 7031960YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7035726

WHEEL, 10 x 1.75- Steel-D- (Self Propelled)- Gray
(Superseded to 7035726YP)

$47.99

$

In Stock, Qty 20+

0

4

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (Was 7091070)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7021119

AXLE, V21
(Superseded to 7021119YP)

$22.99

$

In Stock, Qty 18

0

7

Snapper 7035727

WHEEL, 8 x 1.75- Steel - D- Gray
(Superseded to 7035727YP)

$28.99

$

In Stock, Qty 20+

0

8

Snapper 7031121

HUBCAP, V21
(Superseded to 7031121YP)

$6.99

$

In Stock, Qty 10

0

9

Snapper 7054247

ASSEMBLY, Wheel Arm, Left Rear, Long
(Superseded to 7054247YP)

Note: (Was 7054231)

$40.99

$

In Stock, Qty 9

0

10

Snapper 7054246

ASSEMBLY, Wheel Arm, Right Rear, Long
(Superseded to 7054246YP)

Note: (Was 7054230)

$

$

Not available

11

Snapper 7051885

ASSEMBLY, Front Wheel Arm, LH
(Superseded to 7600179YP)

$20.99

$

In Stock, Qty 9

0

12

Snapper 7051886

ASSEMBLY, Front Wheel Arm, RH
(Superseded to 7600180YP)

$

$

Not available

13

Snapper 7100633

GRIP, Height Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

14

Snapper 7035717

LATCH, Height Adjusting, (long)
(Superseded to 7035717YP)

$6.99

$

In Stock, Qty 10

0

15

Snapper 7032723

ARM, Wheel, Left Rear
(Superseded to 7032723YP)

$6.49

$

In Stock, Qty 8

0

16

Snapper 7032722

ARM, Wheel, Right Rear
(Superseded to 7032722YP)

$

$

Not available

17

Snapper 7012312

BEARING, 9/16" ID
(Superseded to 7012312YP)

$11.99

$

In Stock, Qty 20+

0

18

Snapper 7091012

SCREW, #10-32 x 3/8" Hex Washer Self-Tap, BZ
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7011078

BOLT, 5/16-18 x 1" Hex Washer Face Shoulder
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

20

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7031016

WHEEL ARM, L.H. Front (Square Hole)
(Superseded to 7031016YP)

$7.99

$

In Stock, only 3 left!

0

22

Snapper 7031017

WHEEL ARM, R.H. Front (Round Hole)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 7012325

LATCH, Height
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 20+

0

24

Snapper 7015761

BOLT, 5/16-18 x 3/4" Hex Washer Face Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 4 left!

0
