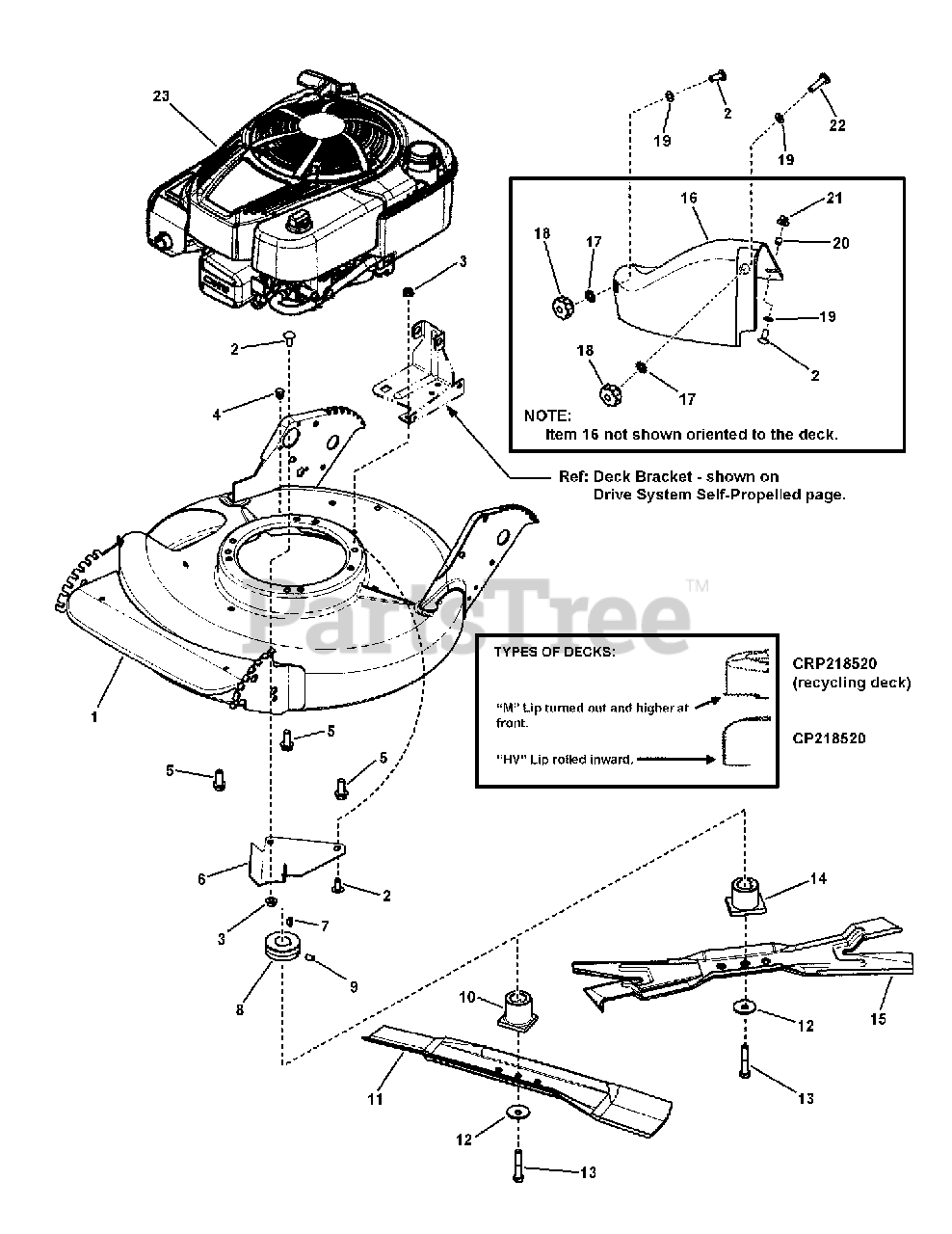

CP 218520 (7800848) - Snapper 21" Walk-Behind Mower, 8.75hp Engine, Deck & Blade Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

Engine, Deck & Blade Group Parts Diagram

  • Title

1

Snapper 7400026D

WELDMENT, Deck, 21" Non-Adjust. Air
(Superseded to 7600034DYP)

Note: (used on 7800764 & 7800847 models)

$359.99

$

Usually ships in 2-12 days

0

1

Snapper 7500549D

WELDMENT, Deck, 21", Self-Propelled, HV
(Superseded to 7500549DYP)

Note: (used on 7800772 & 7800848 models)

$

$

Not available

2

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5
(Superseded to 703185)

Note: (was 7090001)

$3.49

$

In Stock, Qty 12

0

3

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

Note: (was 7091070)

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7074568

COVER, Belt
(Superseded to 7074568YP)

$12.99

$

Usually ships in 2-12 days

0

7

Snapper 7091214

KEY, Woodruff #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7105122

PULLEY, Engine (25mm I. D. x 2-1/8" O.D.)
(Superseded to 7105122YP)

Note: (was 7015780)

$40.99

$

In Stock, only 1 left!

0

9

Snapper 7092086

SCREW, 5/16-18 x 1/2" Hex Socket Head
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7015626

HUB, Blade Drive, 25MM I.D. (.9" crank to blade, 1.75" square)
(Superseded to 7015626YP)

Note: (used on 7800772 & 7800848 models)

$15.99

$

In Stock, only 1 left!

0

11

Snapper 7026691

BLADE, 21" Standard Lift
(Superseded to 7026691BZYP)

Note: (used on 7800772 & 7800848 models)

$23.99

$

In Stock, Qty 20+

0

12

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

13

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7101414

HUB, Blade Drive, 2 Position, 25MM I.D. (1.08" crank to blade, 1.75" x 2.25")
(Superseded to 7101414YP)

Note: (used on 7800764 & 7800847 models)

$16.99

$

In Stock, only 1 left!

0

15

Snapper 7026407

BLADE, 21" Ninja
(Superseded to 7026407AYP)

Note: (used on 7800764 & 7800847 models)

$

$

Not available

16

Snapper 7029149

COVER, 21" Deck
(Superseded to 7029149YP)

$33.99

$

In Stock, Qty 20+

0

17

Snapper 7090189

WASHER, 5/16" Internal/External Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

18

Snapper 7101022

KNOB, Fluted, 5/16-18 x 1/2"
(Superseded to 7101022YP)

$7.49

$

In Stock, only 4 left!

0

19

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7024340

SPACER, .316 I.D. x .375 O.D. x .310 thick
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

21

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

22

Snapper 7091169

BOLT, 5/16-18 x 1-1/8 Round Head Short Square Neck, GR 5 ZP
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 121Q72-0119-F1

* ENGINE, B&S 850 Series, W14

$

$

Currently unavailable

23

Snapper 124Q02-0119-F1

* ENGINE, B&S 850 Pro Series, W14

$

$

Currently unavailable
