CP 215520HVFC (7800289) - Snapper 21" Walk-Behind Mower, 5.5hp Handles & Controls - Upper End Parts Diagram

21" Walk-Behind Mower, 5.5hp

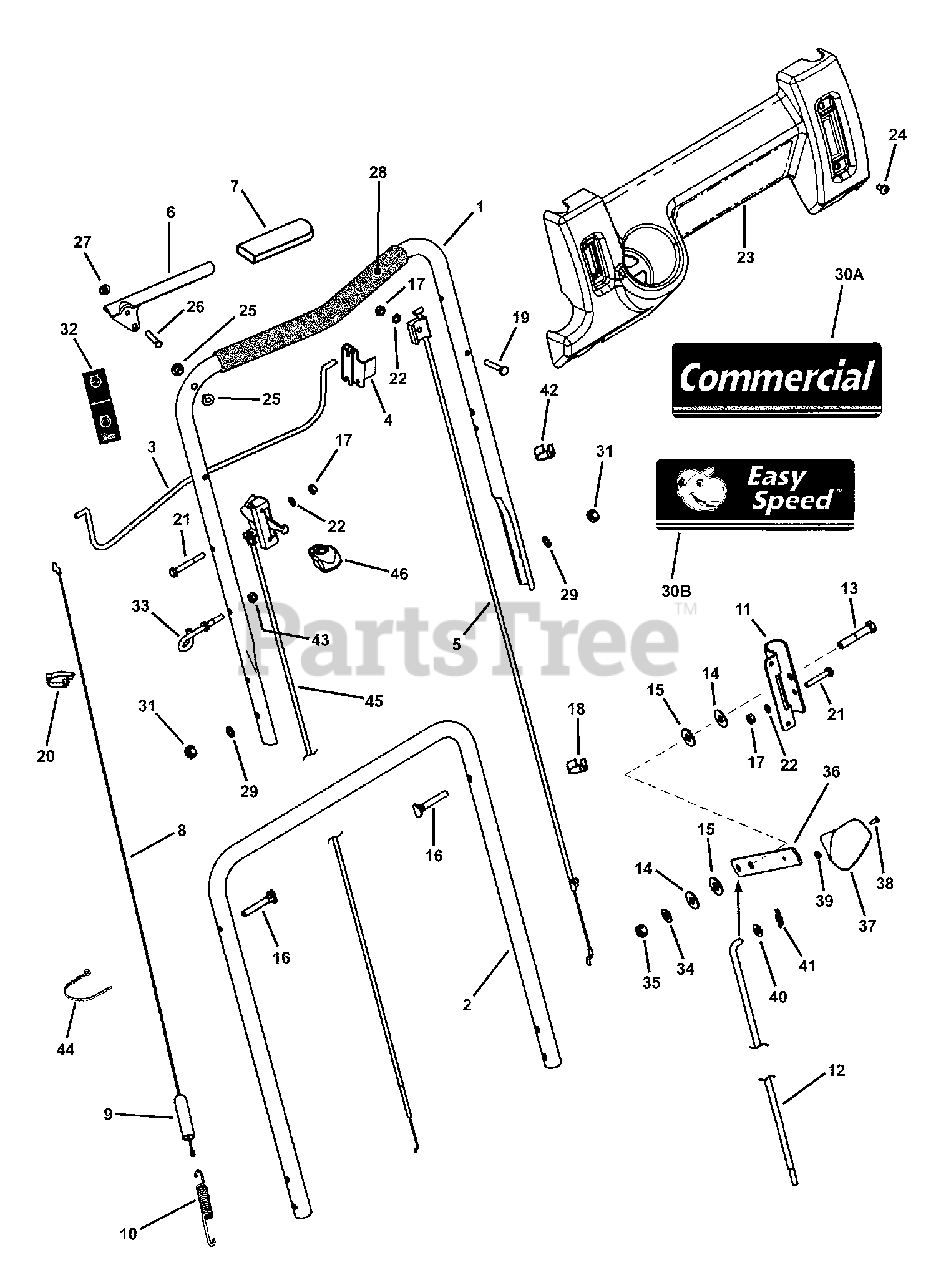

Handles & Controls - Upper End Parts Diagram

  • Title

1

Snapper 7074411

HANDLE, Upper
(Superseded to 7106258AYP)

$

$

Not available

2

Snapper 7074156

HANDLE, Middle
(Superseded to 7106232AYP)

$

$

Not available

3

Snapper 7074418

BAIL, OPC Control
(Superseded to 7074418AYP)

$34.99

$

In Stock, Qty 7

0

4

Snapper 7034872

CLIP, Zone Control
(Superseded to 7034872YP)

$5.99

$

In Stock, Qty 5

0

5

Snapper 7074141

CABLE, Zone Control (56-5/16" Long)
(Superseded to 7074141YP)

Note: (used on CP216019KWVFC)

$22.99

$

In Stock, Qty 17

0

5

Snapper 7102235

CABLE, Zone Control (60.3" Long)
(Superseded to 7102235YP)

Note: (used on CP215520HVFC)

$13.99

$

In Stock, Qty 8

0

6

Snapper 7074473

HANDLE, Clutch
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 20+

0

7

Snapper 7075305

COVER, Grip, Black 1.125"
(Superseded to 7075305YP)

Note: (used on CP215520HVFC)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7028407

GRIP, International Symbol, Black 4.6"
(Superseded to 7028407YP)

Note: (used on CP216019KWVFC)

$5.49

$

In Stock, only 4 left!

0

8

Snapper 7034604

CABLE, Clutch Control (41-1/4" Long)
(Superseded to 7034604YP)

$21.99

$

In Stock, Qty 20+

0

9

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

10

Snapper 7012122

SPRING, Clutch- 21S
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

11

Snapper 7074003

BRACKET, Shift
(Superseded to 7074003YP)

$6.99

$

Usually ships in 2-12 days

0

12

Snapper 7074133

ROD, Speed Control (1/4-28 thread)
(Superseded to 7074133YP)

$27.99

$

In Stock, Qty 8

0

13

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7028465

WASHER, Nylon
(Superseded to 704004)

$3.99

$

In Stock, only 1 left!

0

16

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

17

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: (or 7091100)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

20

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, Qty 10

0

21

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: (or 7091023)

$4.49

$

In Stock, Qty 7

0

23

Snapper 7074140

CONTROL PANEL (w/o Electrical Switch Hole)
(Superseded to 7074140YP)

$70.99

$

Usually ships in 2-12 days

0

24

Snapper 7091200

SCREW, 1/4-20 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 7900067YP)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7014343

BUSHING, .27 x .35 x .4 Flange
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7023792

PIN, 1/4 x 1-1/2"
(Superseded to 704031)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7023810

FOAM GRIP, 18.75" long
(Superseded to 7023810YP)

$8.49

$

Usually ships in 2-12 days

0

29

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

30A

Snapper 7100181

DECAL, Commercial, Control Panel
(Superseded to 7100181YP)

Note: (used on CP215520HVFC)

$15.99

$

Usually ships in 2-12 days

0

30B

Snapper 7100183

DECAL, Control Panel, Easy Speed
(Superseded to 7100183YP)

Note: (used on CP216019KWVFC)

$11.99

$

Usually ships in 2-12 days

0

31

Snapper 7091511

NUT, 5/16-18 Hex, GR 5
(Superseded to 7091511SM)

Note: (or 7091069)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7029782

DECAL, OPC Bail (International Symbol)
(Superseded to 7029782MA)

$12.99

$

Usually ships in 2-12 days

0

33

Snapper 7028488

GUIDE, Rope (1/4-20 thread)
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

34

Snapper 7028568

WASHER, Belleville
(Superseded to 704006)

$3.99

$

In Stock, only 1 left!

0

35

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

36

Snapper 7074113

LEVER, Shift
(Superseded to 7074113YP)

$9.49

$

Usually ships in 2-12 days

0

37

Snapper 7075182

KNOB, Shift
(Superseded to 7075182YP)

$9.99

$

In Stock, only 1 left!

0

38

Snapper 7091167

SCREW, #8-32 x 1/2" Cross Recess Filister Head Machine
(Superseded to 7091167YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

40

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

41

Snapper 7034162

COTTER PIN, 5/16 Self Lock
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

42

Snapper 7024641

TIE, Wire, 1.29 long, black
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

43

Snapper 7076978

NUT, 1/4-28 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

44

Snapper 7012080

CABLE-TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

45

Snapper 7078026

THROTTLE CONTROL, 5.5 HP, Honda (50.81" long)
(Superseded to 7078026YP)

Note: (used on CP215520HVFC)

$39.99

$

In Stock, Qty 8

0

45

Snapper 7074138

THROTTLE CONTROL, 6.0 HP Kawasaki (53.25" long)
(Superseded to 7074138YP)

Note: (used on CP216019KWVFC)

$54.99

$

In Stock, only 1 left!

0

46

Snapper 7075308

THROTTLE KNOB
(Superseded to 7075308YP)

$11.99

$

In Stock, only 2 left!

0
