CP 215520HVFC (7800289) - Snapper 21" Walk-Behind Mower, 5.5hp Handles & Controls - Lower End Parts Diagram

21" Walk-Behind Mower, 5.5hp

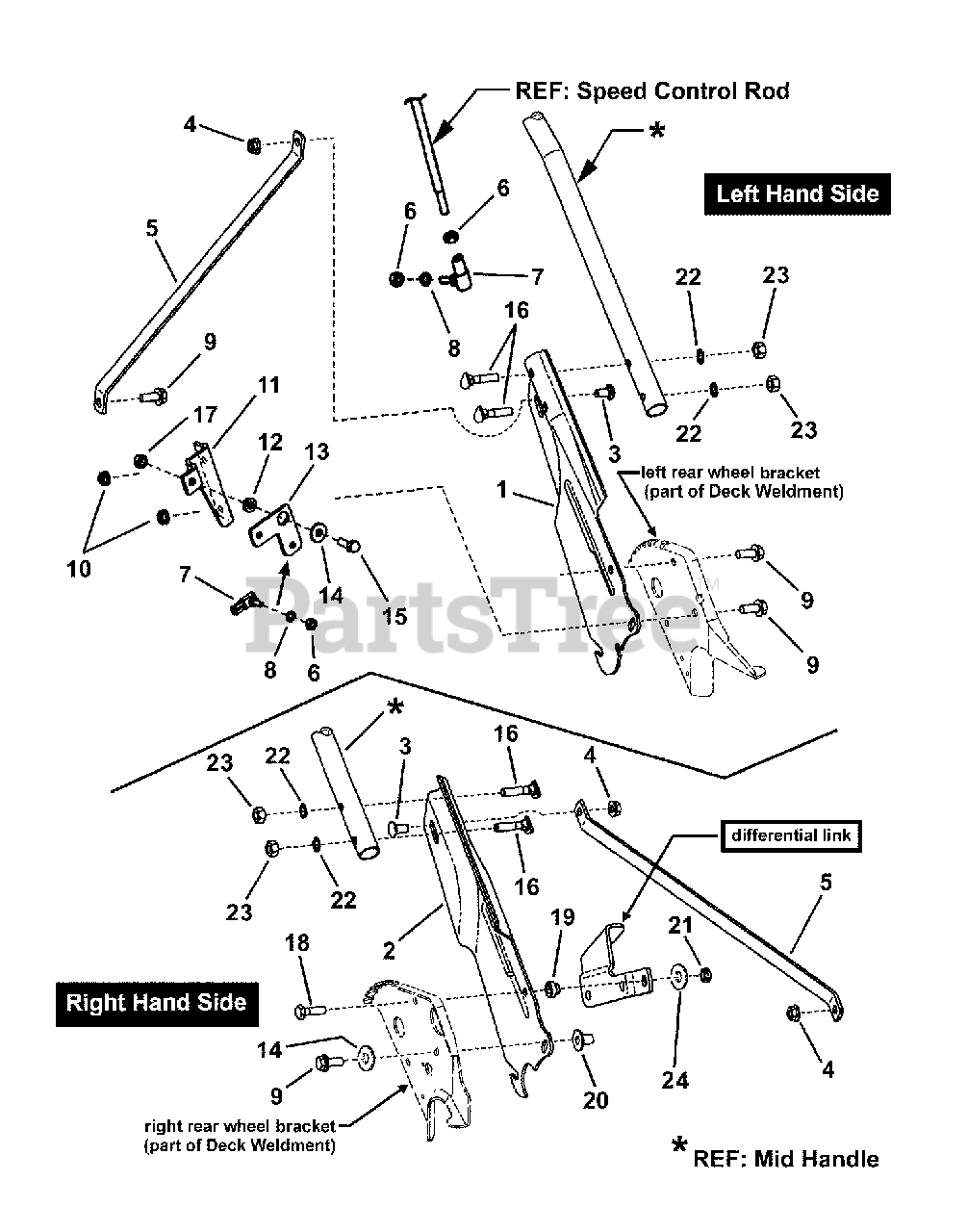

Handles & Controls - Lower End Parts Diagram

  • Title

1

Snapper 7033985

HANDLE, Lower LH (Adjustable)
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper 7033986

HANDLE, Lower RH (Adjustable)
(Superseded to 7033986AYP)

$36.99

$

In Stock, only 4 left!

0

3

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage GR 5
(Superseded to 703447)

Note: was 7091026

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

Note: (or 7091601)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7046707

STRAP, Handle
(Superseded to 7046707YP)

$34.99

$

In Stock, only 2 left!

0

6

Snapper 7090095

NUT, 1/4-28 Hex, GR 5
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

$10.99

$

In Stock, only 1 left!

0

8

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

9

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock GR 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

10

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7073822

BRACKET, Bell Crank
(Superseded to 7073822YP)

$14.99

$

Usually ships in 2-12 days

0

12

Snapper 7013849

SPACER, .33 x .63 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7073913

BELL CRANK
(Superseded to 7073913YP)

$24.99

$

Usually ships in 2-12 days

0

14

Snapper 7091130

WASHER, .33 x .88 x .09 Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

16

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

17

Snapper 7091067

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: (or 7091575)

$3.49

$

In Stock, Qty 19

0

18

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap GR5
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

19

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

20

Snapper 7090895

NUT, 5/16-18 Tee
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, GR 5
(Superseded to 703896)

Note: (or 7091074)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7091511

NUT, 5/16-18 Hex, GR 5
(Superseded to 7091511SM)

Note: (or 7091069)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0
