CP 215520HV (7800849-00) - Snapper 21" Walk-Behind Mower, 5.5hp Transmission - Differential Group Parts Diagram

21" Walk-Behind Mower, 5.5hp

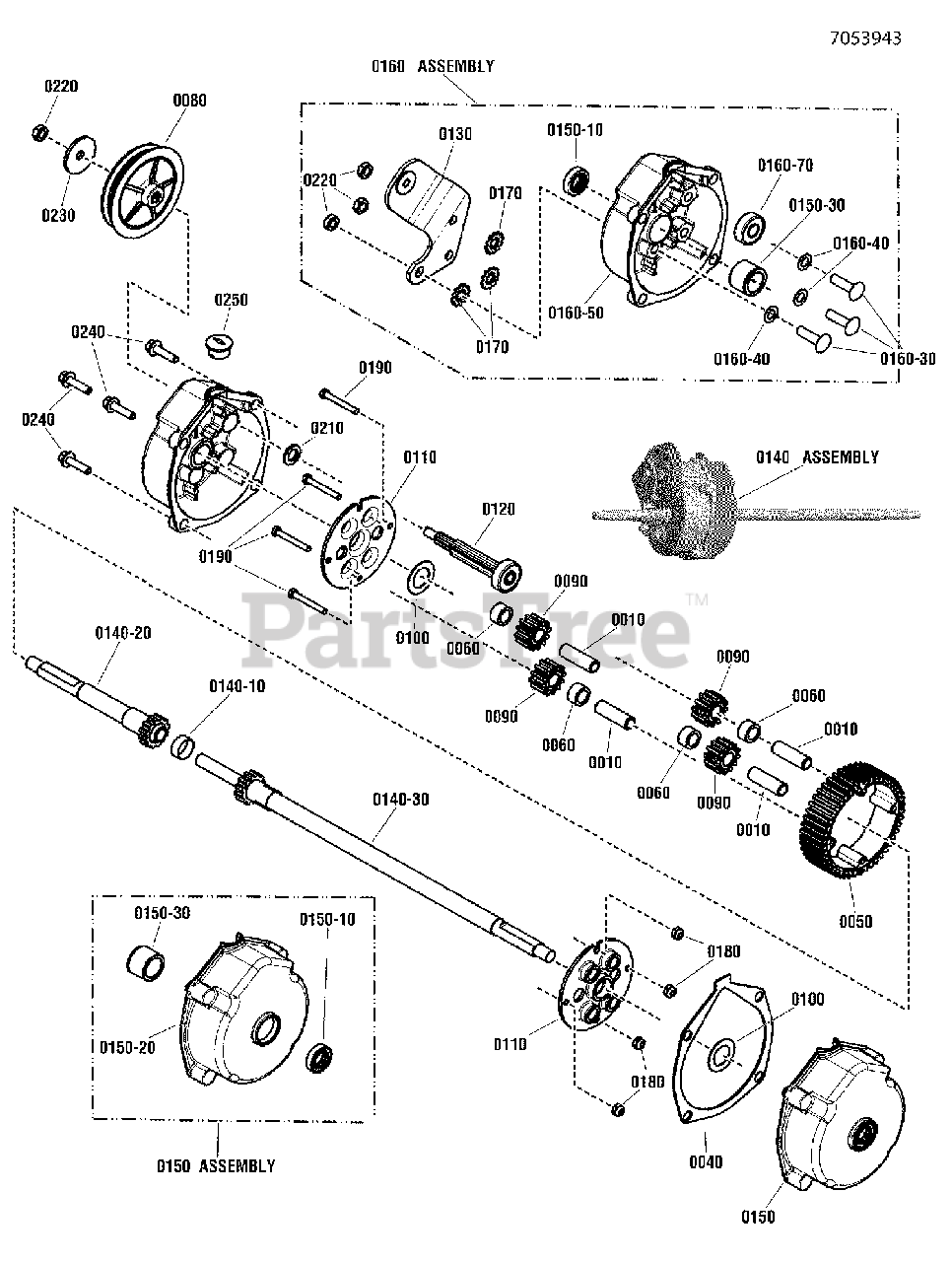

Transmission - Differential Group Parts Diagram

  • Title

0010

Snapper 7011110YP

SHAFT, Pinion

$4.49

$

In Stock, only 2 left!

0

0040

Snapper 7011774YP

GASKET, Housing

$11.99

$

In Stock, Qty 10

0

0050

Snapper 7012495YP

GEAR, Differential, 46 Tooth

$17.99

$

In Stock, only 1 left!

0

0060

Snapper 703933

SPACER, .700 OD x .480 ID x .380 L, ZC/CL

Note: (Was 7012500 or 80005383)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 7019213YP

PULLEY, Poly-V Belt (3.5 O.D.)

$35.99

$

In Stock, only 1 left!

0

0090

Snapper 7021115YP

GEAR, Pinion (12 Tooth)

$4.49

$

In Stock, Qty 12

0

0100

Snapper 7031965YP

WASHER, 1.25 X .765 X .03, Thrust, ZC/CL

Note: (Was 80003519)

$4.49

$

In Stock, only 2 left!

0

0110

Snapper 7031970YP

PLATE, Differential Gear, V21

$16.99

$

Usually ships in 2-12 days

0

0120

Snapper 7050767YP

ASSEMBLY, Input Gear

$36.99

$

Usually ships in 2-12 days

0

0130

Snapper 7051903AYP

WELDMENT, Differential Bracket

$26.99

$

In Stock, only 2 left!

0

0140

Snapper 7053943YP

ASSEMBLY, Transmission

$302.99

$

In Stock, only 1 left!

0

0140-10

Snapper 703934

SPACER, .820 OD X .720 ID X .330 L, ZC/CL

Note: (Was 7012543 or 80005384)

$4.49

$

In Stock, only 2 left!

0

0140-20

Snapper 7050830YP

ASSEMBLY, Short Axle

Note: (Was 7051932)

$57.99

$

Usually ships in 2-12 days

0

0140-30

Snapper 7050831YP

ASSEMBLY, Long Axle

Note: (Was 7051933)

$95.99

$

In Stock, only 1 left!

0

0150

Snapper 7053939YP

ASSEMBLY, Left Housing

Note: (Was 7053938)

$50.99

$

Usually ships in 2-12 days

0

0150-10

Snapper 7012314YP

SEAL, 5/8" ID

$4.49

$

In Stock, only 3 left!

0

0150-20

Snapper 7029033YP

HOUSING, Left Hand

$32.99

$

Usually ships in 2-12 days

0

0150-30

Snapper 7029035YP

BEARING, Tapered, Differential Housing

$4.99

$

In Stock, only 2 left!

0

0160

Snapper 7051908YP

ASSEMBLY, Housing, Right Hand

Note: (Was 7053941)

$69.99

$

Usually ships in 2-12 days

0

0160-30

Snapper 703935

BOLT, 5/16-24 x 1-1/8" Rib Neck, GR 5, ZC/BK

Note: (Was 7014155 or 80005385)

$

$

Not available

0160-40

Snapper 7024442YP

GASKET, 5/8" O.D.

$4.49

$

Usually ships in 2-12 days

0

0160-50

Snapper 7029034YP

HOUSING, Right Hand

$32.99

$

Usually ships in 2-12 days

0

0160-70

Snapper 7073963YP

BEARING, Ball, 1.125 OD, .440 ID, 3.8 Wide

$13.99

$

Usually ships in 2-12 days

0

0170

Snapper 703936

WASHER, .325 ID X .850 OD X .041 Thk, Internal External Lock, Type A, ZC/CL

Note: (Was 7090189 or 80005386)

$4.49

$

In Stock, only 2 left!

0

0180

Snapper 703937

NUT, #10-32 Nyloc, GR A, ZC/CL

Note: (Was 7090376 or 80005387)

$3.49

$

Usually ships in 2-12 days

0

0190

Snapper 703938

SCREW, #10-32 x 1-1/2 Hex Head Cap GR5, ZC/CL

Note: (Was 7090557 or 80005388)

$3.99

$

Usually ships in 2-12 days

0

0210

Snapper 703349

WASHER, .453 X .75 X .073, Flat, ZC/CL

Note: (Was 7091720 or 80004406)

$3.99

$

Usually ships in 2-12 days

0

0220

Snapper 703459

NUT, 5/16-24, Hex Crown Lock,GR C, Zinc/Clear

Note: (Was 7092062 or 80004410)

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 703939

WASHER, .32 ID x 1.40 OD x .10 Thk, Bellville, ZC/CL

Note: (Was 7092063 or 80005389)

$7.99

$

Usually ships in 2-12 days

0

0240

Snapper 703833

SCREW, 1/4-20 x 1 Hex Washer Self-Tap, ZC/CL

Note: (Was 7091825, 7092064 or 80004415)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 703931

PLUG, Transmission Housing

Note: (Was 7016544 or 80005381)

$3.99

$

In Stock, Qty 11

0

0260

Snapper 7061017

GREASE, "OO" (4 oz max) (Not Shown)
(Superseded to 7061017YP)

$

$

Not available
