CP 215520HV (7800372) - Snapper 21" Walk-Behind Mower, 5.5hp CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 5.5hp

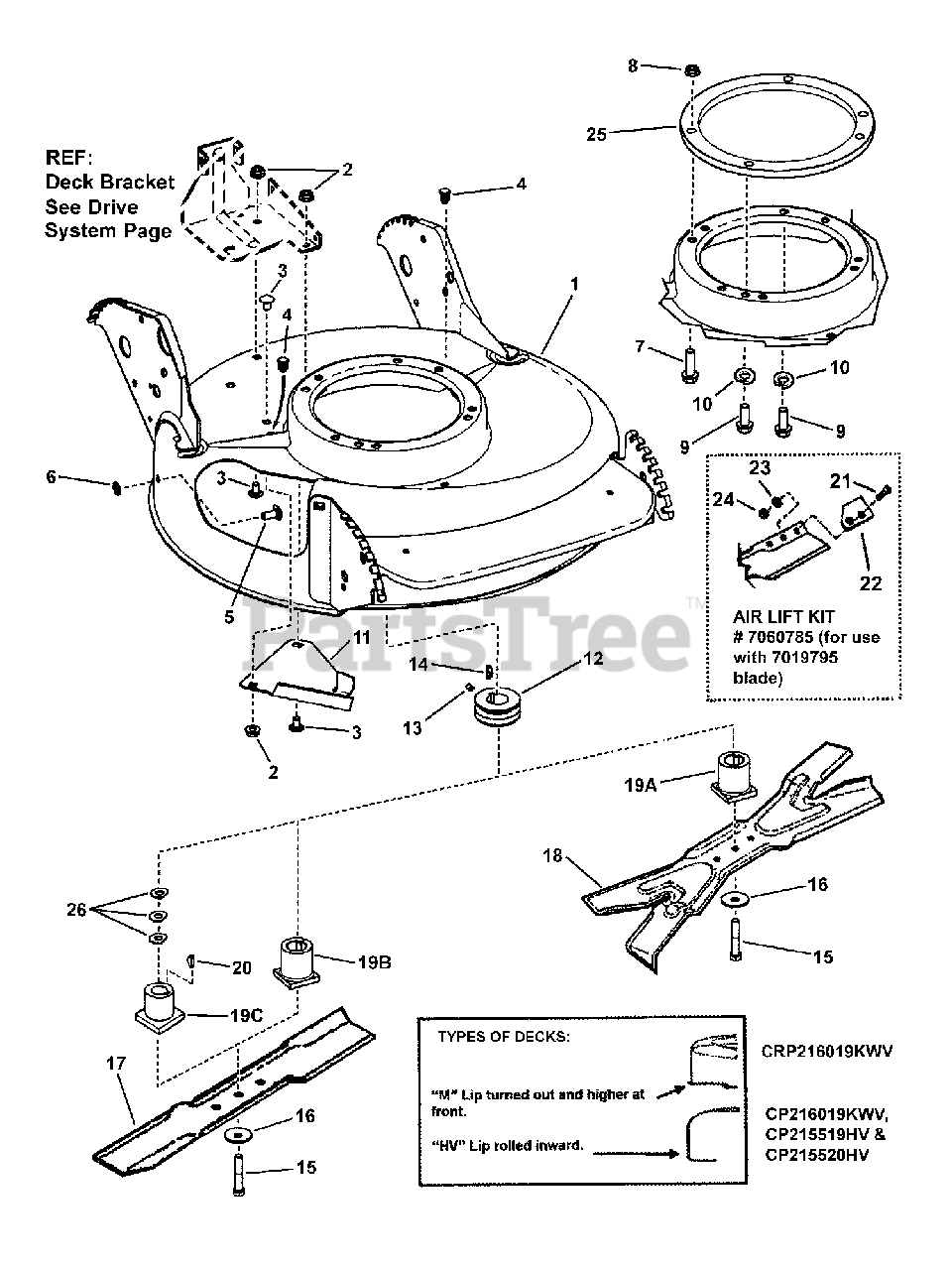

CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper 7500081

* WELDMENT, Deck, 21" Non-Adjust Air
(Superseded to 7600034DYP)

Note: was 7400026, used on CRP216019KWV

$359.99

$

Usually ships in 2-12 days

0

1

Snapper 7400027

* WELDMENT, Deck, 21", S.P., Hi-Vac
(Superseded to 7500549DYP)

Note: used on CP216019KWV, CP215519HV & CP215520HV

$

$

Not available

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR 5
(Superseded to 703409)

Note: was 7091070

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

Note: or 7092061

$4.49

$

In Stock, Qty 7

0

4

Snapper 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5
(Superseded to 703185)

Note: or 7091508

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7091602SM)

Note: engine mount bolts (Honda)

$3.99

$

In Stock, Qty 5

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: was 7091070 or 7090585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap GR 5
(Superseded to 703301)

Note: engine mount bolts (Honda)

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

Note: on engine mount bolts (Honda)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7074568

COVER, Belt
(Superseded to 7074568YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7015780

PULLEY- Engine (25mm I.D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

Note: used on Kawasaki engines

$30.99

$

Usually ships in 2-12 days

0

12

Snapper 7021822

PULLEY- Engine (1.085 I.D. x 2-1/8" O.D.)
(Superseded to 7021822YP)

Note: used on Honda engines

$34.99

$

Usually ships in 2-12 days

0

13

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Head
(Superseded to 7090201SM)

Note: used with 7015780

$

$

Not available

13

Snapper 7092086

SCREW, 5/16-18 x 1/2" Hex Socket Head
(Superseded to 7092086YP)

Note: used with 7021822

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7091214

KEY, Woodruff #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

15

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

17

Snapper 7026691

BLADE, Cutter (Standard Lift)
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

18

Snapper 7026407

BLADE, 21" Ninja (Quad Edge)
(Superseded to 7026407AYP)

$54.99

$

Usually ships in 2-12 days

0

19A

Snapper 7101414

** HUB, Blade Drive, 25mm I.D. RD 2 Position
(Superseded to 7101414YP)

Note: used on CRP216019KWV

$16.99

$

In Stock, only 1 left!

0

19B

Snapper 7015626

** HUB, Blade Drive, 25mm I.D.
(Superseded to 7015626YP)

Note: used on CP216019KWV

$15.99

$

In Stock, only 1 left!

0

19C

Snapper 7012927

** HUB, Blade Drive, 7/8" I.D.
(Superseded to 7012927YP)

Note: used on CP215519HV & CP215520HV

$13.99

$

In Stock, only 2 left!

0

20

Snapper 7010783

KEY, #505 Hi-Pro
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7032558

AIR LIFT
(Superseded to 7032558YP)

$

$

Not available

23

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7090223

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7300969A

RING, Engine Spacer
(Superseded to 7300969AYP)

Note: used on CP215520HV model

$146.99

$

Usually ships in 2-12 days

0

26

Snapper 7044770

SPACER, .06 Blade Hub
(Superseded to 7044770YP)

Note: used on CP215520HV model

$4.49

$

Usually ships in 2-12 days

0

*** ENGINE, 6 HP Kawasaki w/side recoil Model FJ180V-DS13-R (not shown)

$

$

Not available

*** ENGINE, 6 HP Kawasaki w/side recoil Model FJ180V-BS23-R (not shown)

$

$

Not available

*** ENGINE, 5.5 HP Honda Model GXV160, Type K1A1AS (not shown)

Note: used on CP215519HV

$

$

Not available

*** ENGINE, 5.5 HP Honda Model GXV160, Type UH2A1AS (not shown)

Note: used on CP215520HV model

$

$

Not available
