CP 215517HV (84908) - Snapper 21" Walk-Behind Mower, 5.5hp HANDLES & CONTROLS (Lower End) Parts Diagram

21" Walk-Behind Mower, 5.5hp

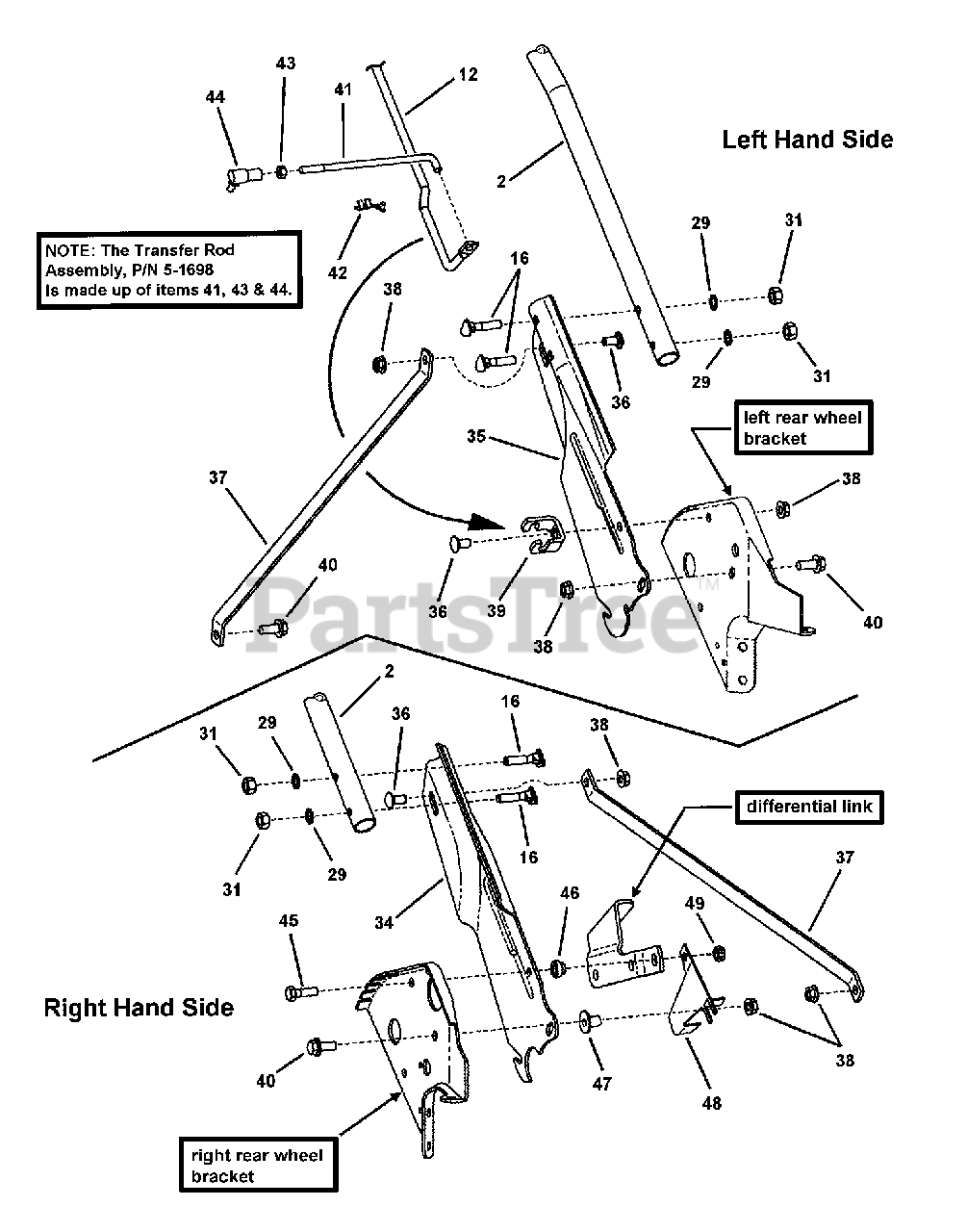

HANDLES & CONTROLS (Lower End) Parts Diagram

  • Title

2

Snapper 7046737

HANDLE, Middle

$

$

Currently unavailable

12

Snapper 7074255

LEVER, Speed Control

$

$

Not available

16

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head Carriage
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

29

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7091511

NUT, 5/16-18 Hex, GR5
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7033986

HANDLE, Lower Right Hand
(Superseded to 7033986AYP)

Note: NOTE: Handles and controls are continued from previous page.

$36.99

$

In Stock, only 4 left!

0

35

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

36

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage GR5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7046707

STRAP, Handle
(Superseded to 7046707YP)

$34.99

$

In Stock, only 2 left!

0

38

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

39

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

$26.99

$

In Stock, only 1 left!

0

40

Snapper 7090595

BOLT, 5/16-18 x 5/8" Hex Flange Lock GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

41

Snapper 7015752

ROD, Transfer (1/4-28 thread)
(Superseded to 7015752YP)

$22.99

$

Usually ships in 2-12 days

0

42

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 5

0

43

Snapper 7090095

NUT, 1/4-28 Hex, GR5
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7015753

BALL JOINT (1/4-28 thread)
(Superseded to 7015753YP)

$10.99

$

In Stock, only 1 left!

0

45

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, GR5
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

46

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 9

0

47

Snapper 7090895

NUT, 5/16-18 Tee
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

48

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

$26.99

$

Usually ships in 2-12 days

0

49

Snapper 7091606

NUT, 5/16-24 Hex Center Lock GR5
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0
