CP 215517HV (84908) - Snapper 21" Walk-Behind Mower, 5.5hp GRASS BAG ACCESSORY Parts Diagram

21" Walk-Behind Mower, 5.5hp

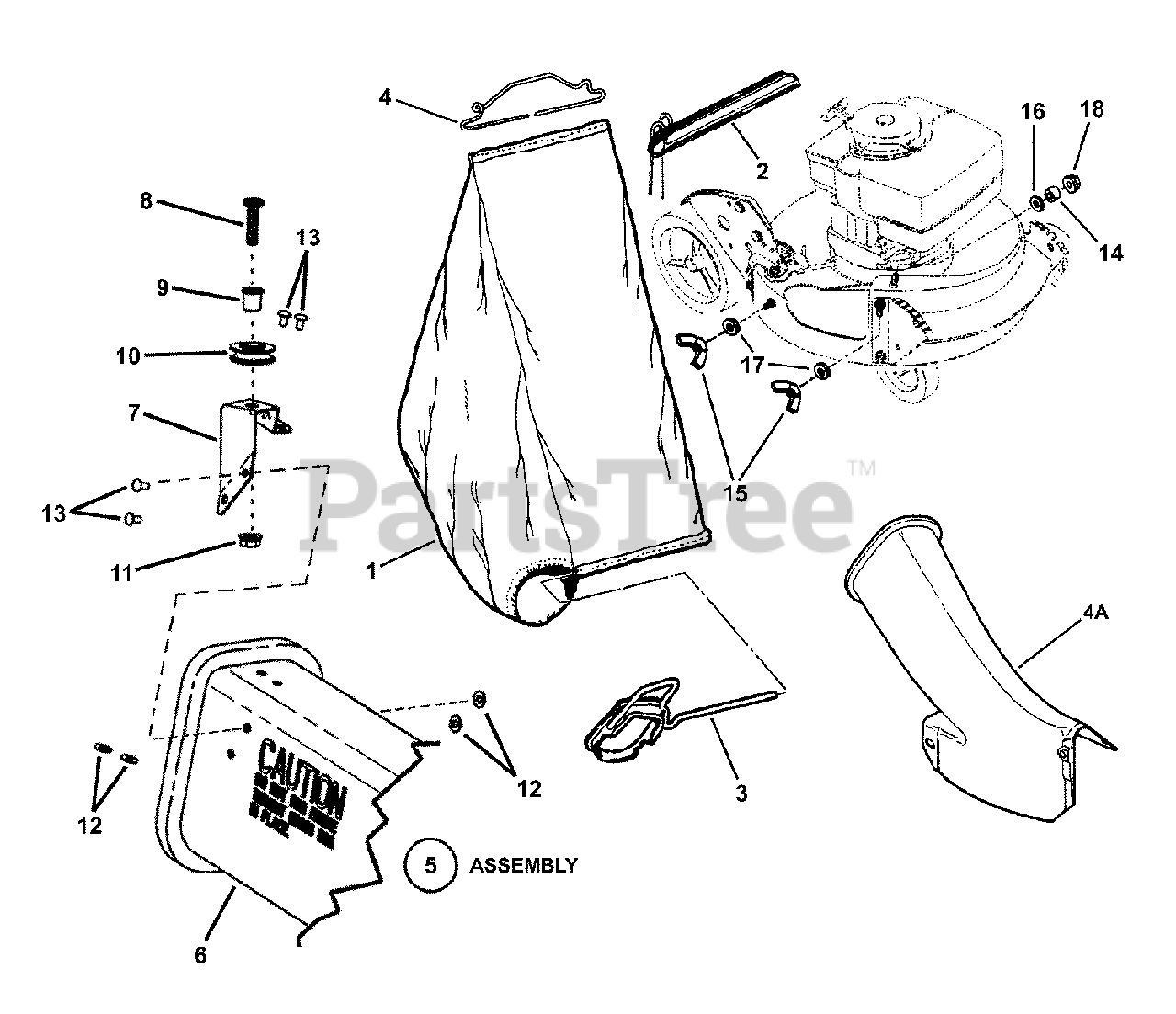

GRASS BAG ACCESSORY Parts Diagram

  • Title
--

Snapper 7060936

KIT, Grass Bag Catcher
(Superseded to 7060936YP)

Note: (Incl. Items 1, 2, 3 & 4)

$

$

Not available

1

Snapper 7074426

BAG, Grass Slider (Black/Gold) (10.75" Wide)
(Superseded to 7074426YP)

Note: Was 23774

$134.99

$

In Stock, only 2 left!

0

2

Snapper 7050711

ASSEMBLY, Slider
(Superseded to 7050711YP)

$16.99

$

In Stock, Qty 8

0

3

Snapper 7042489

CONNECTOR, Grass Bag (weldment)
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

4

Snapper 7019247

WIRE, Bag Connector (12" Wide)
(Superseded to 7019247YP)

$22.99

$

In Stock, only 2 left!

0

4A

Snapper 7016050

ADAPTER, Grass Bag
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

5

Snapper 7058037

ASSEMBLY, Grass Bag Adapter (Includes items 6 thru 13)
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

6

Snapper 7047081

ADAPTER, Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper 7047082

BRACKET, Rope Pulley
(Superseded to 7047082AYP)

$9.49

$

Usually ships in 2-12 days

0

8

Snapper 7091984

SCREW, 5/16-18 x 1-1/4" Pan Head Machine
(Superseded to 7091984YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

10

Snapper 7024228

PULLEY, Plastic
(Superseded to 7024228SM)

$4.99

$

In Stock, only 4 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7072107

WASHER, 15/32" Flat
(Superseded to 7072107YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7024340

SPACER
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

15

Snapper 7024085

NUT, 5/16-18 Wing (Nylon Patch)
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

16

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0
