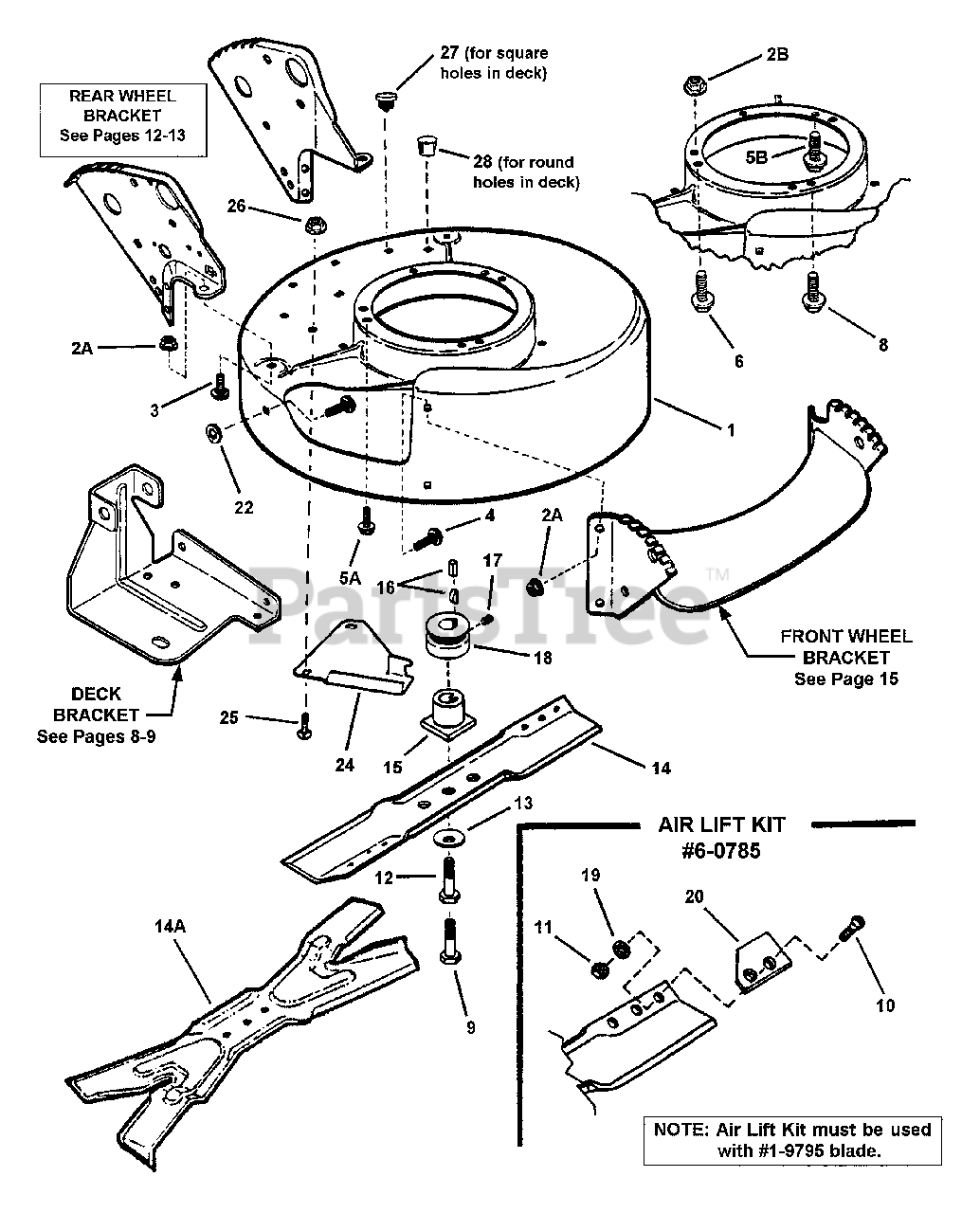

CP 215512KWV (82408) - Snapper 21" Walk-Behind Mower, 5.5hp Cutting Deck, Blade Parts Diagram

21" Walk-Behind Mower, 5.5hp

Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper 7057663

DECK, Mower
(Superseded to 7500549DYP)

Note: (Includes painted deck with decals)

$

$

Not available

2A

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

2B

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585 (Robin 4 cycle)

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5A

Snapper 7090324

SCREW, 3/8-18 x 1" S.-Tap (Engine Mount)
(Superseded to 704000)

Note: (Kaw, Robin 2 cy)

$4.99

$

Usually ships in 2-12 days

0

5B

Snapper 7090324

SCREW, 3/8-18 x 1" Self-Tap (Engine Mount)
(Superseded to 704000)

Note: (Robin 4 cy)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, Grade 5
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

8

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

9

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Hd. Cap, Grade 5
(Superseded to 703866)

Note: (Robin 2 & 4 cy)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Gr. 5
(Superseded to 7090167SM)

Note: (Kawasaki)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

14

Snapper 7019795

BLADE, Cutter (20.75")
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

14A

Snapper 7026407

BLADE, Cutter (20.75") (Quad Edge)
(Superseded to 7026407AYP)

$

$

Not available

15

Snapper 7015626

HUB, Blade Drive 25mm
(Superseded to 7015626YP)

Note: (Robin)

$15.99

$

In Stock, only 1 left!

0

Snapper 7012927

HUB, Blade Drive 7/8"
(Superseded to 7012927YP)

Note: (Kawasaki)

$13.99

$

In Stock, only 2 left!

0

16

Snapper 7010783

KEY, #505 Hi Pro
(Superseded to 7010783YP)

Note: (Kawasaki)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7016755

KEY, 1/4 x 3/4" Square
(Superseded to 7016755YP)

Note: (Robin)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7022106

PULLEY, Engine
(Superseded to 7022106YP)

Note: (Robin)

$52.99

$

Usually ships in 2-12 days

0

Snapper 7021764

PULLEY, Engine
(Superseded to 7021764YP)

Note: (Kawasaki)

$54.99

$

In Stock, only 1 left!

0

19

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$

$

Not available

22

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7011762

COVER, Spark Plug
(Superseded to 7011762YP)

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0

60785

Snapper 7060785

KIT, Air Lift
(Superseded to 7060785YP)

Note: (Includes Items 10, 11, 19 & 20)

$

$

Not available

24

Snapper 7046446

BAFFLE, Belt
(Superseded to 7046446YP)

$36.99

$

Usually ships in 2-12 days

0

25

Snapper 7090731

BOLT, 5/16-18 x 1/2" Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7046471

PLUG, 5/16" Square Hole
(Superseded to 7046471YP)

Note: (Qty 3 on Push)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7045264

PLUG, 5/16" Hole
(Superseded to 7045264YP)

Note: (Qty 3 on Push; qty 2 on Self-propelled)

$3.99

$

Usually ships in 2-12 days

0
