CP 21509R (80304) - Snapper 21" Walk-Behind Mower, 5hp Cutting Deck, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 5hp

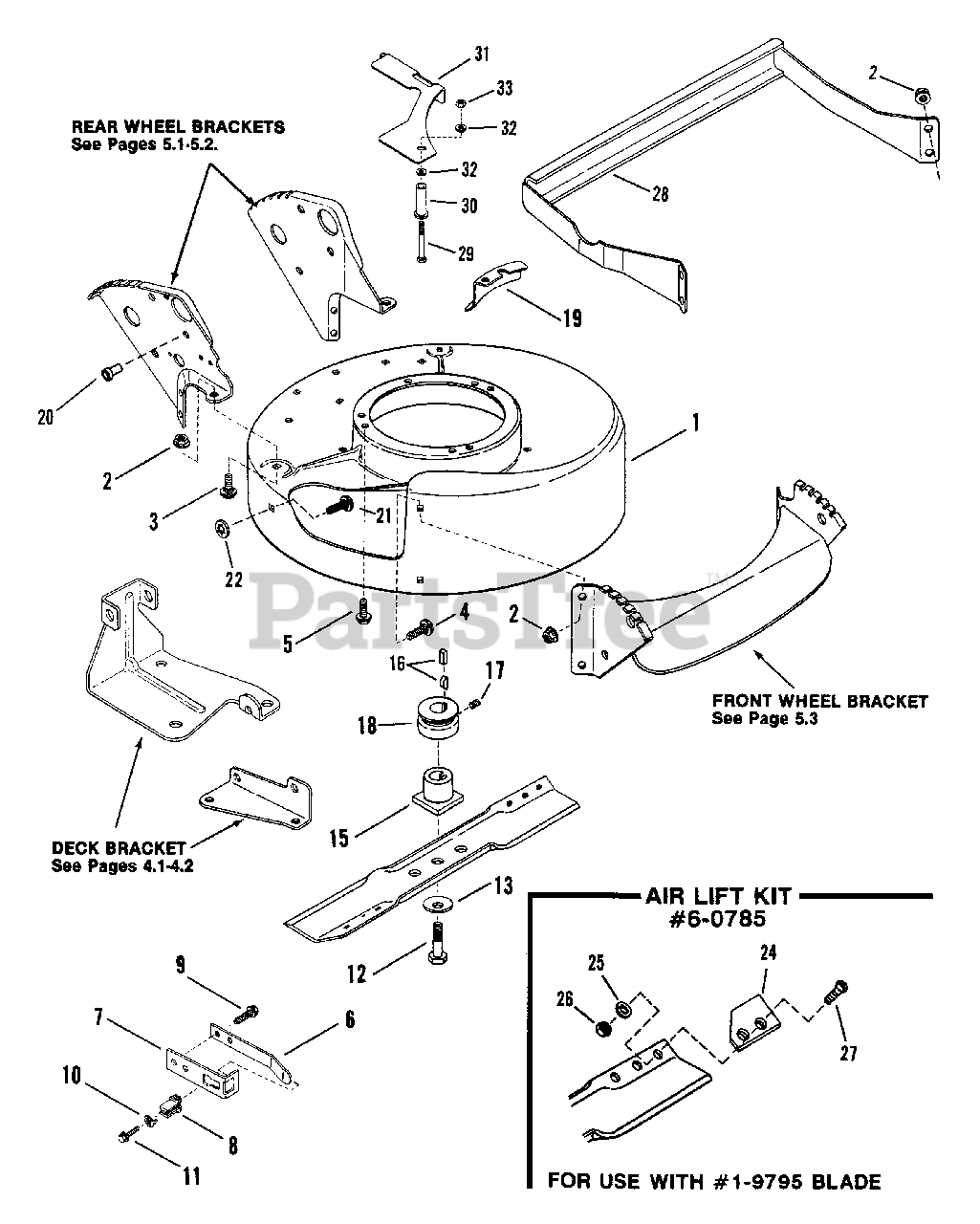

Cutting Deck, Blade, Interlock Parts Diagram

  • Title

1

Snapper 7057663

DECK, Mower
(Superseded to 7500549DYP)

Note: Was 57665 (Includes painted deck with decals)

$

$

Not available

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090324

SCREW, 3/8-18 x 1" Self-Tapping (Engine Mounting)
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7032417

SPRING, Wheel Bracket Type Interlock
(Superseded to 7032417YP)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 7032416

BRACKET, Wheel Bracket Type Interlock
(Superseded to 7032416YP)

$21.99

$

Usually ships in 2-12 days

0

8

Snapper 7012048

INSULATOR, Interlock
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 5

0

10

Snapper 7090385

WASHER, #8 Tab Internal Tooth Lock

$

$

Not available

11

Snapper 7090379

SCREW, #8-18 x 3/4" Hex Machine
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

?14

Snapper 7019795

BLADE, Cutter (20.75")
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

15

Snapper 7015626

HUB, Blade Drive
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

16

Snapper 7015894

KEY, 3/16 x 5/8" Woodruff (Briggs)
(Superseded to 7015894SM)

$3.49

$

In Stock, Qty 7

0

Snapper 7016755

KEY, 1/4 x 3/4" Square (Robin)
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7015780

PULLEY, Engine (Briggs)
(Superseded to 7015780YP)

$30.99

$

In Stock, only 1 left!

0

Snapper 7022106

PULLEY, Engine (Robin)
(Superseded to 7022106YP)

$52.99

$

Usually ships in 2-12 days

0

19

Snapper 7031968

SHIELD, Belt Opening Cover (Push Models Only)

$

$

Not available

20

Snapper 7012135

BUSHING, Interlock Wire

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

22

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7011762

COVER, Spark Plug
(Superseded to 7011762YP)

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7060785

KIT, Air Lift
(Superseded to 7060785YP)

Note: (Includes Items 24 Thru 27)

$

$

Not available

24

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$

$

Not available

25

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7049755

STRUCTURE, Fender (European Models Only)

$

$

Currently unavailable

29

Snapper 7090702

BOLT, 5/16-18 x 2-1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7013320

BUSHING
(Superseded to 7013320YP)

$13.99

$

Usually ships in 2-12 days

0

31

Snapper 36241

COVER, Belt (European Models Only)

$

$

Currently unavailable

32

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0
