CP 215013KWV (84667) - Snapper 21" Walk-Behind Mower, 5hp Grass Bag (Accessory) Parts Diagram

21" Walk-Behind Mower, 5hp

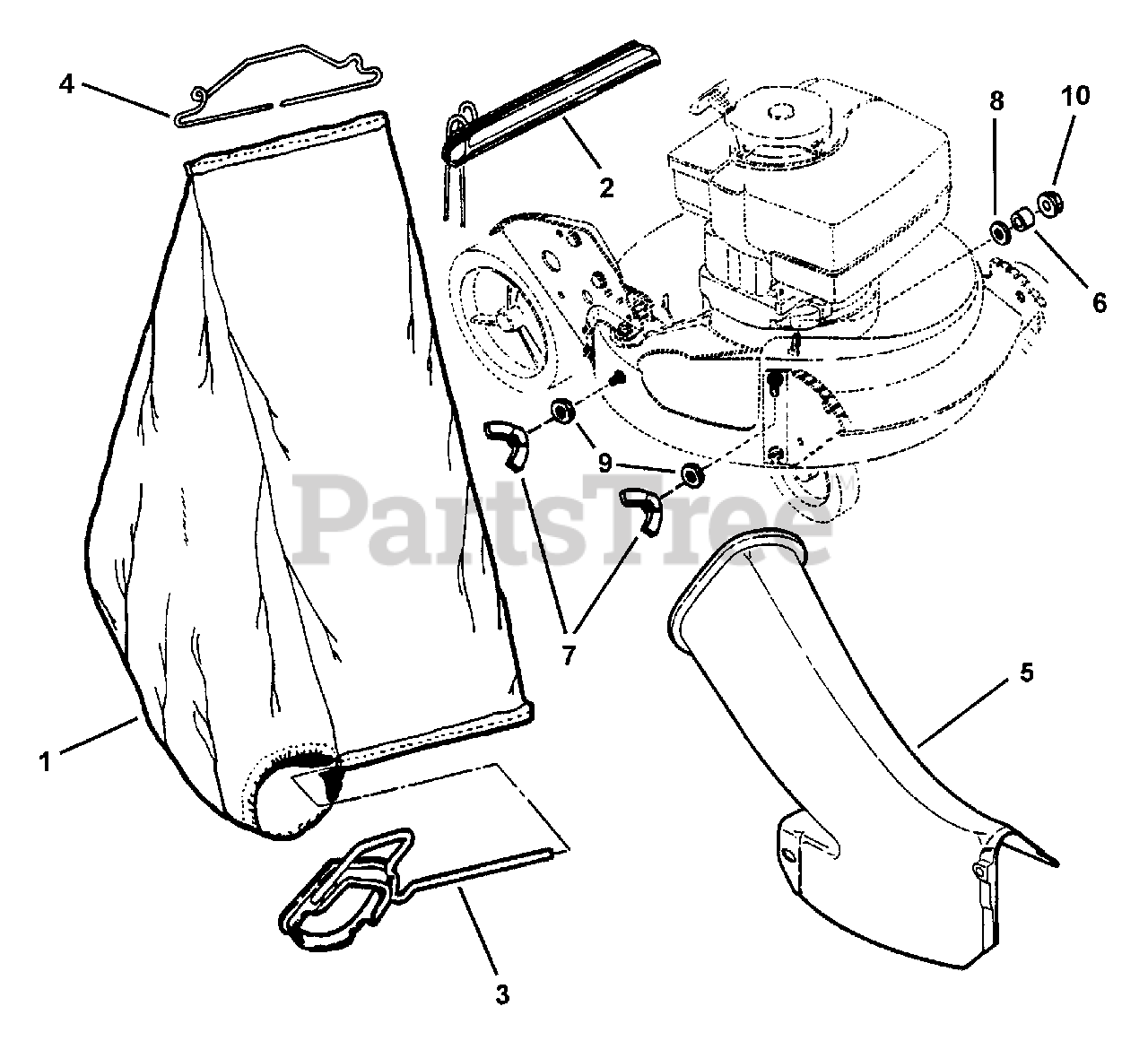

Grass Bag (Accessory) Parts Diagram

  • Title

Snapper 7060936

KIT, Grass Catcher
(Superseded to 7060936YP)

Note: (Includes Items 1, 2, 3, 4) (Series 13 Models)

$

$

Not available

Snapper 7061239

KIT, Grass Catcher
(Superseded to 7060936YP)

Note: (Includes Items 1A, 2, 3, 4A) (Series 12 Models)

$

$

Not available

1

Snapper 7074426

BAG, Grass Slider (Black/Gold) (10.75" Wide)
(Superseded to 7074426YP)

Note: Was 23774 (Series 13 Models)

$134.99

$

In Stock, only 2 left!

0

1

Snapper 7074426

BAG, Grass Slider (Black/Gold) (11.25" Wide)
(Superseded to 7074426YP)

Note: Was 72104 (Series 12 Models)

$134.99

$

In Stock, only 2 left!

0

2

Snapper 7050711

ASSEMBLY, Slider
(Superseded to 7050711YP)

$16.99

$

In Stock, Qty 8

0

3

Snapper 7042489

CONNECTOR, Grass Bag
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

4

Snapper 7019247

WIRE, Bag Connector (12" Wide)
(Superseded to 7019247YP)

Note: (Series 13 Models)

$22.99

$

In Stock, only 2 left!

0

4

Snapper 7026313

WIRE, Bag Connector (14" Wide)
(Superseded to 7026313YP)

Note: (Series 12 Models)

$24.99

$

Usually ships in 2-12 days

0

5

Snapper 7058037

ADAPTER, Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

6

Snapper 7024340

SPACER
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

7

Snapper 7024085

NUT, 5/16-18 Wing (Nylon Patch)
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

8

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7090951

NUT, 5/16-18 Hex Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0
