Compact Outlaw - Bad Boy Zero-Turn Mower (2021) TANKS & REAR COVER Parts Diagram

Zero-Turn Mower

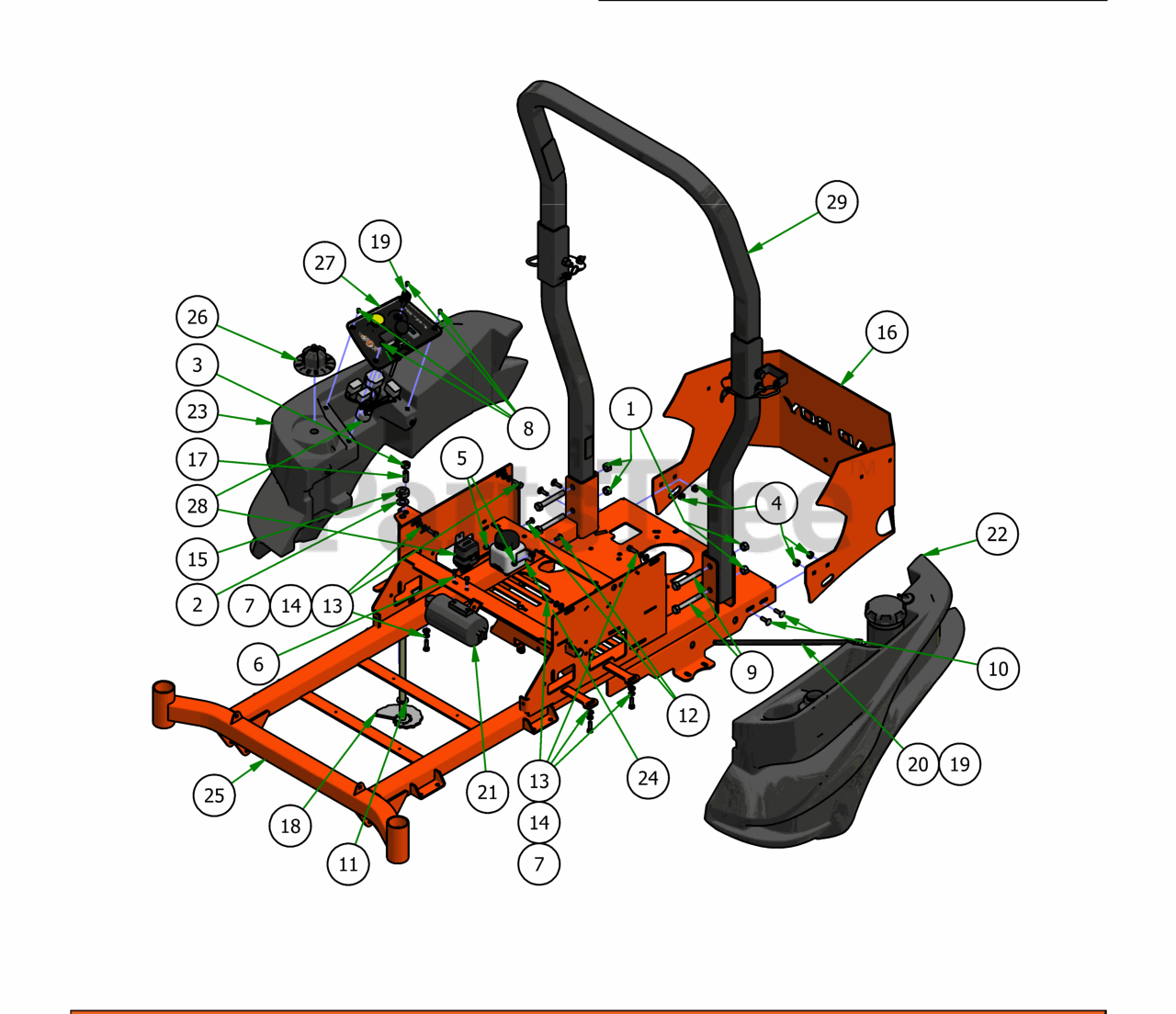

TANKS & REAR COVER Parts Diagram

  • Title

1

Bad Boy 013-0005-00

1/2" Center Lock Nut

$3.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

5

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

7

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 1 left!

0

8

Bad Boy 018-2010-00

10-32 x 3/8" Button Socket Head Bolt

$0.99

$

In Stock, Qty 9

0

9

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 3 left!

0

10

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

11

Bad Boy 019-6017-00

.630 ID x 1.122 OD x .142 THK Plastic Washer

$0.99

$

In Stock, Qty 20+

0

12

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 3 left!

0

13

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

16

Bad Boy 026-0090-00

2017 ZT Rear Plate

$216.99

$

Usually ships in 4-7 days

0

17

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

18

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

19

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

19

Bad Boy 051-2014-00

Vanguard Fuel Line Assy-37"

$43.99

$

Usually ships in 4-7 days

0

20

Bad Boy 051-2015-00

2015 ZT KawaFuel Line Assy-22"

$32.99

$

Usually ships in 4-7 days

0

21

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

22

Bad Boy 067-2060-50

Left Fuel Tank

$387.99

$

In Stock, only 2 left!

0

23

Bad Boy 067-2070-50

Right Side Console

$249.99

$

Usually ships in 4-7 days

0

24

Bad Boy 067-8090-03

Hydro Tank Assembly

$45.99

$

Usually ships in 4-7 days

0

25

Bad Boy 070-5500-18

2018 Compact Outlaw Frame

$

$

Currently unavailable

26

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

27

Bad Boy 079-3460-19

2019 ZT/Maverick Control Panel Assembly

$164.99

$

Usually ships in 4-7 days

0

28

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

29

Bad Boy 089-0005-00

2016 2x2 ROPS

$452.99

$

Usually ships in 4-7 days

0
