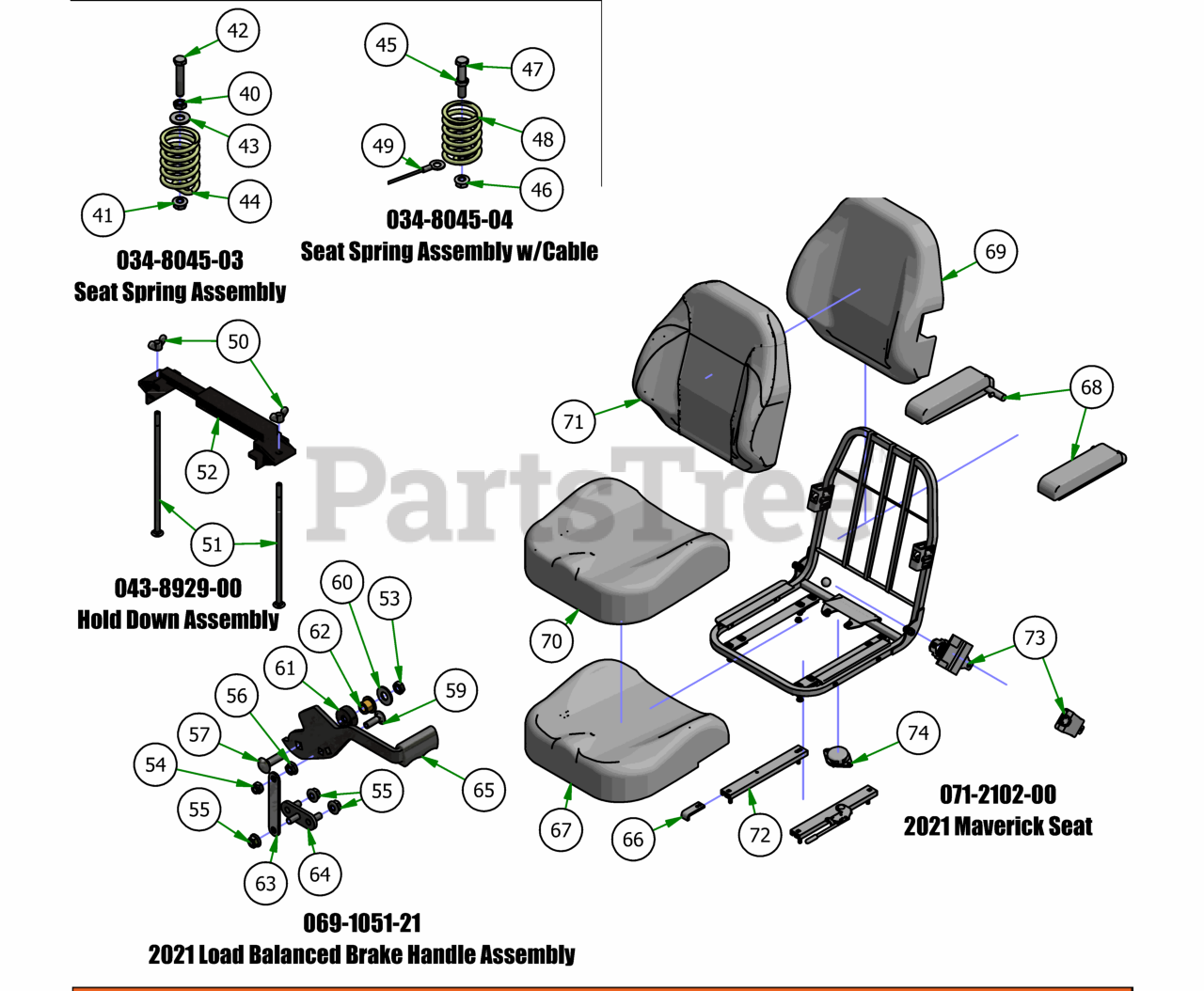

Compact Outlaw - Bad Boy Zero-Turn Mower (2021) COVERS, SEAT, & BATTERY (CONT.) Parts Diagram

Zero-Turn Mower

COVERS, SEAT, & BATTERY (CONT.) Parts Diagram

  • Title

40

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

41

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

42

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 6

0

43

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

44

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

45

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

46

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

47

Bad Boy 018-3000-00

3/8"-16 x 2" Gr 5 Hex Bolt

$1.49

$

In Stock, Qty 6

0

48

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

49

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 2 left!

0

50

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

In Stock, Qty 5

0

51

Bad Boy 018-8050-00

1/4-20 X 8 Carriage Bolt

$1.99

$

In Stock, Qty 12

0

52

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, Qty 9

0

53

Bad Boy 013-0012-00

3/8-16 HEX JAM 2-WAY REVERSIBLE CENTER LOCKNUT

$3.49

$

In Stock, Qty 5

0

54

Bad Boy 013-8042-00

5/16-18 NYLON INSERT CAP LOCKNUT ZINC (BLK CAP)

$1.49

$

Usually ships in 4-7 days

0

55

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

56

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

57

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

59

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

60

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

61

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

62

Bad Boy 032-5053-00

.377 ID X .625 OD X .500 HGT X .880 FLNG DIA X .060 FLNG

$3.49

$

In Stock, only 2 left!

0

63

Bad Boy 039-0170-00

Brake Cable Extension Plate

$11.99

$

Usually ships in 4-7 days

0

64

Bad Boy 039-0171-00

Brake Load Balancer Lower Weldment

$11.99

$

Usually ships in 4-7 days

0

65

Bad Boy 069-1051-00

Load Balanced Brake Handle with Grip

$68.99

$

Usually ships in 4-7 days

0

66

Bad Boy 039-2157-00

Black Seat stop from Seat King

$15.99

$

Usually ships in 4-7 days

0

67

Bad Boy 071-2042-01

Seat Cover Molded Foam for 071-2040-18/071-5080-18

$105.99

$

Usually ships in 4-7 days

0

68

Bad Boy 071-2054-00

2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit

$159.99

$

Usually ships in 0 days

0

69

Bad Boy 071-2102-01

Foam Molded Back for 071-2102-00

$74.99

$

Usually ships in 4-7 days

0

70

Bad Boy 071-2102-02

Seat Cover for 071-2101-00/071-2102-00

$149.99

$

Usually ships in 4-7 days

0

71

Bad Boy 071-2102-03

Back Cover for 071-2102-00

$166.99

$

Usually ships in 4-7 days

0

72

Bad Boy 071-5015-00

Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger

$99.99

$

In Stock, only 3 left!

0

73

Bad Boy 071-5083-00

Seat Belt for 071-5080-17

$121.99

$

Usually ships in 4-7 days

0

74

Bad Boy 071-8061-00

13/14 MZ/Outlaw Seat Switch

$20.99

$

In Stock, only 3 left!

0
