Compact Outlaw - Bad Boy Zero-Turn Mower (2020) DRIVE ARM ASSEMBLY (CONT.) Parts Diagram

Zero-Turn Mower

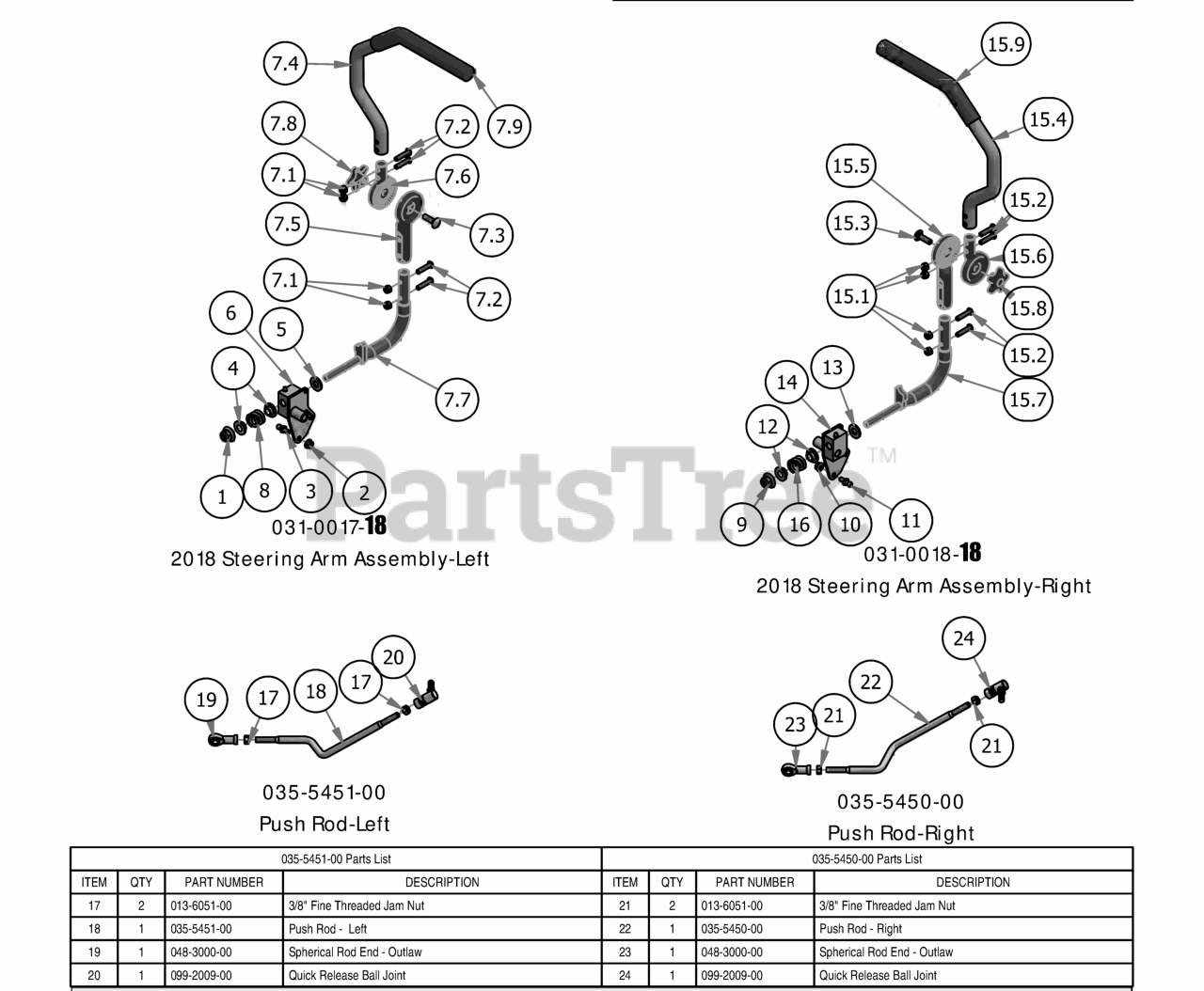

DRIVE ARM ASSEMBLY (CONT.) Parts Diagram

  • Title

1

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

3

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

4

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

6

Bad Boy 031-0017-98

2017 Drive Lever Housing - Left

$33.99

$

Usually ships in 4-7 days

0

7

Bad Boy 031-9000-18

2018 Adjustable Steering Arm - Left

$164.99

$

Usually ships in 4-7 days

0

8

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

9

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

11

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

12

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

14

Bad Boy 031-0018-98

2017 Drive Lever Housing - Right

$24.99

$

Usually ships in 4-7 days

0

15

Bad Boy 031-9050-18

2018 Adjustable Steering Arm - Right

$164.99

$

Usually ships in 4-7 days

0

16

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

7.1

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

7.2

Bad Boy 018-2020-18

5/16-18 BHCS, TORX DRIVE

$1.99

$

In Stock, Qty 5

0

7.3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

7.4

Bad Boy 031-9010-18

Upper Tube-Adjustable Steering

$30.99

$

In Stock, only 2 left!

0

7.5

Bad Boy 031-9014-18

2018 Lower Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

7.6

Bad Boy 031-9017-18

2018 Upper Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

7.7

Bad Boy 031-9020-18

Steering Arm Elbow (Left)

$90.99

$

Usually ships in 4-7 days

0

7.8

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

7.9

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

15.1

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

15.2

Bad Boy 018-2020-18

5/16-18 BHCS, TORX DRIVE

$1.99

$

In Stock, Qty 5

0

15.3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

15.4

Bad Boy 031-9010-18

Upper Tube-Adjustable Steering

$30.99

$

In Stock, only 2 left!

0

15.5

Bad Boy 031-9015-18

2018 Lower Adjuster - Steering Arm- Right

$56.99

$

Usually ships in 4-7 days

0

15.6

Bad Boy 031-9016-18

2018 Upper Adjuster - Steering Arm- Right

$56.99

$

Usually ships in 4-7 days

0

15.7

Bad Boy 031-9025-18

Steering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

15.8

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

15.9

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

17

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

18

Bad Boy 035-5451-00

Push Rod - Left

$45.99

$

Usually ships in 4-7 days

0

19

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

20

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

21

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 035-5450-00

Push Rod - Right

$36.99

$

Usually ships in 4-7 days

0

23

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

24

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0
