Compact Outlaw - Bad Boy Zero-Turn Mower (2020) COVERS, SEAT, & BATTERY (CONT.) Parts Diagram

Zero-Turn Mower

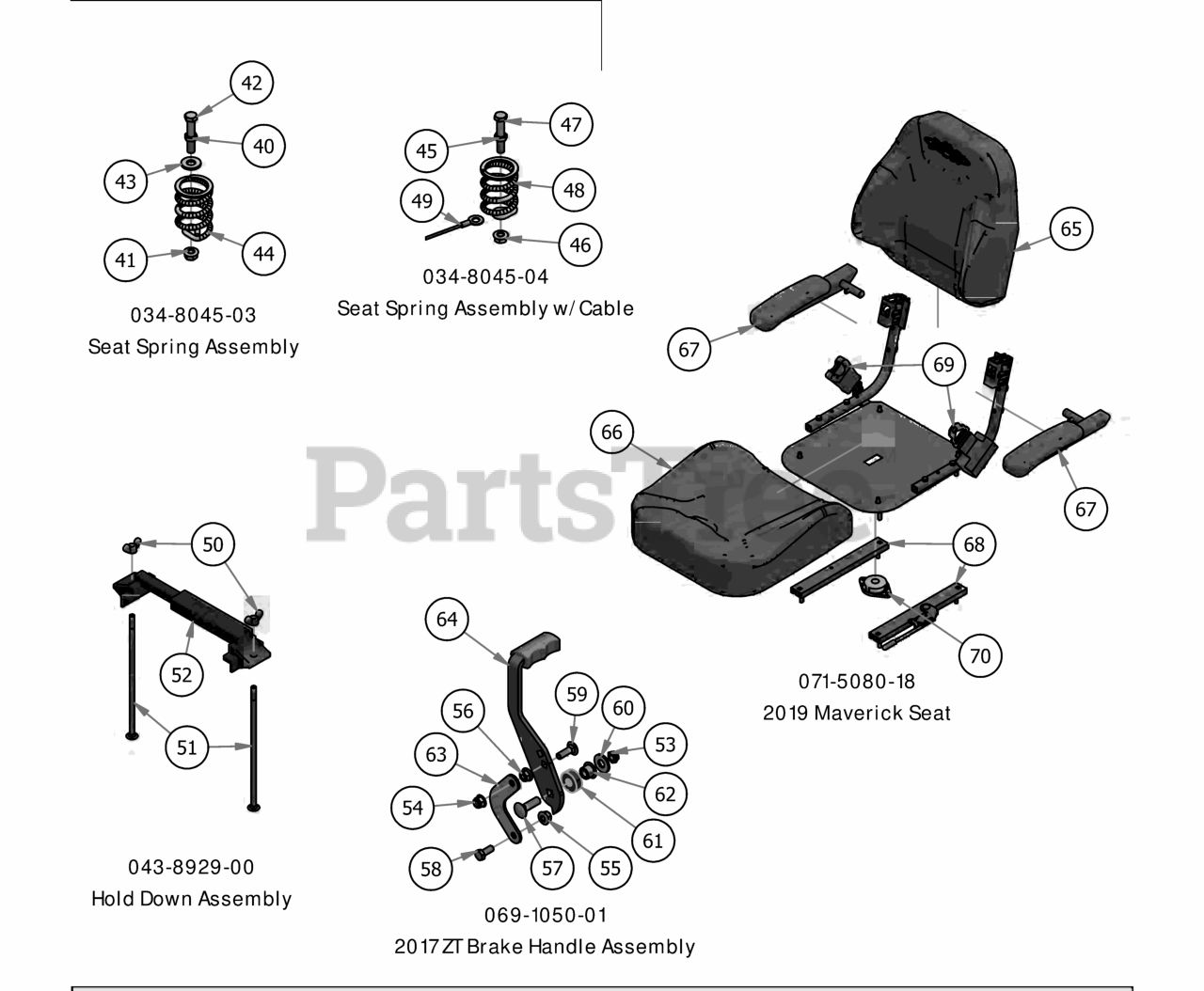

COVERS, SEAT, & BATTERY (CONT.) Parts Diagram

  • Title

40

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

41

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

42

Bad Boy 018-3000-00

3/8"-16 x 2" Gr 5 Hex Bolt

$1.49

$

In Stock, Qty 8

0

43

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

44

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

45

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

46

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

47

Bad Boy 018-3000-00

3/8"-16 x 2" Gr 5 Hex Bolt

$1.49

$

In Stock, Qty 8

0

48

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

49

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 1 left!

0

50

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

In Stock, Qty 5

0

51

Bad Boy 018-8050-00

1/4-20 X 8 Carriage Bolt

$1.99

$

In Stock, Qty 12

0

52

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, Qty 11

0

53

Bad Boy 013-0012-00

3/8-16 Centerlock Half Nut

$3.49

$

In Stock, Qty 5

0

54

Bad Boy 013-8042-00

5/16-18 Nylon Insert Flange Nut (Black Cap)

$1.49

$

Usually ships in 4-7 days

0

55

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

56

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

57

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

58

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

59

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

60

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

61

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

62

Bad Boy 032-5053-00

Bronze Bushing SF-1220-8

$3.49

$

In Stock, only 2 left!

0

63

Bad Boy 039-0150-00

Brake Cable Adapter Bracket

$19.99

$

Usually ships in 4-7 days

0

64

Bad Boy 069-1050-00

Brake Handle

$19.99

$

Usually ships in 4-7 days

0

65

Bad Boy 071-2052-00

Seat Back Cushion

$151.99

$

Usually ships in 4-7 days

0

66

Bad Boy 071-2053-00

Seat Cushion

$170.99

$

Usually ships in 4-7 days

0

67

Bad Boy 071-2054-00

Seat Arm Pair

$159.99

$

Usually ships in 0 days

0

68

Bad Boy 071-5015-00

Seat Rails

$99.99

$

In Stock, only 3 left!

0

69

Bad Boy 071-5083-00

Seat Belt

$121.99

$

Usually ships in 4-7 days

0

70

Bad Boy 071-2045-00

Seat Safety Switch

$

$

Not available
