Compact Outlaw - Bad Boy Zero-Turn Mower (2019) 42" DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

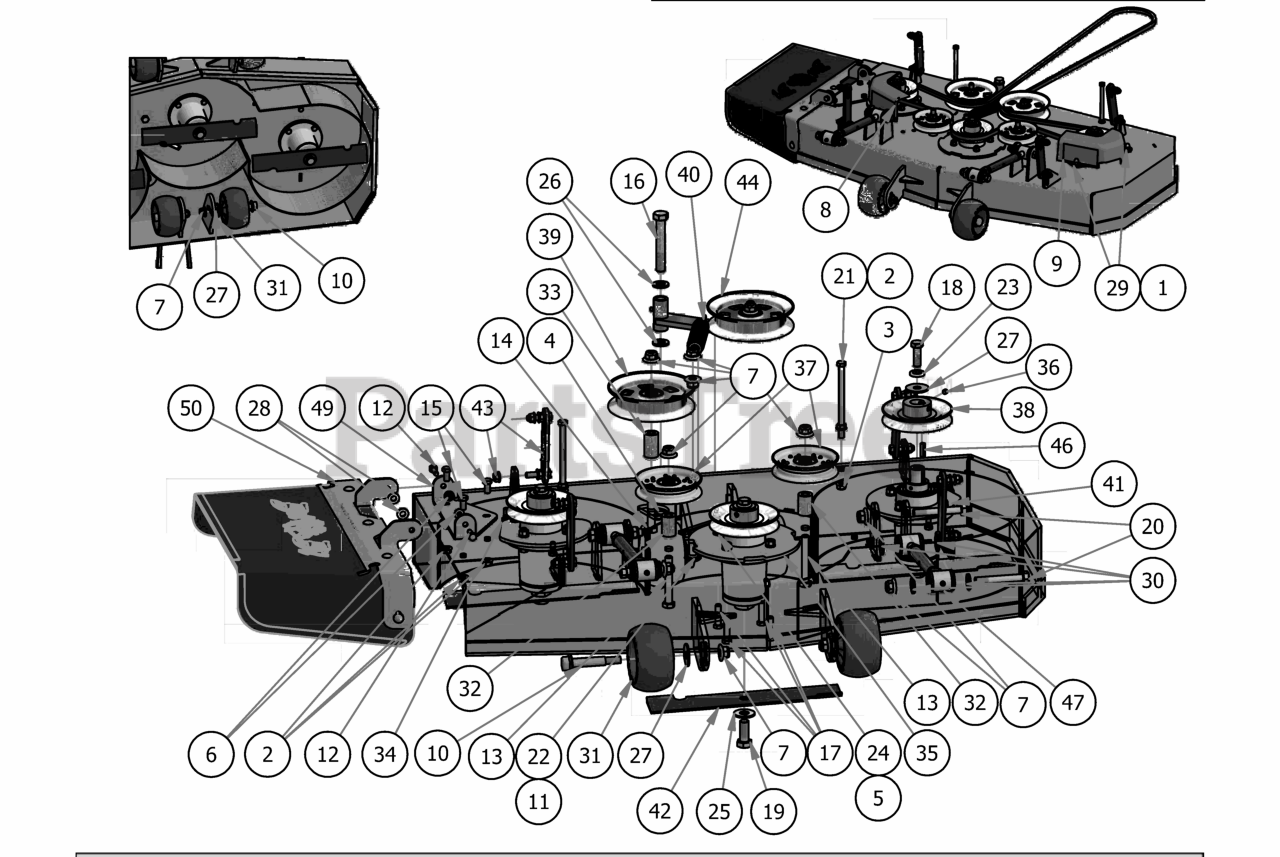

42" DECK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-0004-00

Acorn nut-pulley Cover

$3.49

$

In Stock, Qty 8

0

2

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

7

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 014-4025-00

pulley cover chute side

$19.99

$

Usually ships in 4-7 days

0

9

Bad Boy 014-4026-00

pulley cover non-chute side

$19.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

11

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-2007-00

5/16-18 x 1 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, only 1 left!

0

13

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, Qty 6

0

14

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, Qty 6

0

15

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, Qty 8

0

17

Bad Boy 018-6012-00

3/8 x 1.5" Bolt

$0.99

$

In Stock, Qty 20+

0

18

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 20+

0

19

Bad Boy 018-6020-00

5/8 x 1 1/2 Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

20

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 3 left!

0

21

Bad Boy 018-7060-00

3/8-16 x 5 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

22

Bad Boy 019-0007-00

.517 Square Hole Round Washer

$1.49

$

In Stock, only 2 left!

0

23

Bad Boy 019-5007-00

1/2" Lock Washer Zinc

$0.99

$

In Stock, Qty 20+

0

24

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

25

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

26

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

27

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

28

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

29

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, Qty 6

0

30

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

31

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

32

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

33

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, Qty 5

0

34

Bad Boy 026-0024-00

42&48 Deck Spindle Support Plate

$15.99

$

Usually ships in 4-7 days

0

35

Bad Boy 026-0025-00

Deck Spindle Support Plate

$15.99

$

In Stock, only 2 left!

0

36

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

37

Bad Boy 033-6001-00

4 3/4 Idler Pulley - ABFI-76

$33.99

$

In Stock, Qty 20+

0

38

Bad Boy 033-6003-00

5" Spindle Deck Pulley

$45.99

$

In Stock, Qty 9

0

39

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

40

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

41

Bad Boy 037-6015-50

Spindle Assembly

$227.99

$

In Stock, Qty 20+

0

42

Bad Boy 038-4226-00

42'' High lift Blade

$22.99

$

In Stock, Qty 6

0

43

Bad Boy 039-2127-17

Deck Hanger Assembly

$16.99

$

In Stock, only 3 left!

0

44

Bad Boy 039-6945-18

2017 54"/48" Deck Idler Assembly

$75.99

$

In Stock, only 2 left!

0

45

Bad Boy 041-4022-00

B138 Belt

$83.99

$

In Stock, Qty 20+

0

46

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 20+

0

47

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

48

Bad Boy 060-5444-00

42" Deck Shell

$

$

Not available

49

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

50

Bad Boy 210-6005-48

ZT Chute Assembly

$193.99

$

Usually ships in 4-7 days

0
