Comfort Control DD (5900992) - Ferris Comfort Control DD 52" Walk-Behind Mower, 26hp Kawasaki, Rear-Discharge Fuel Tank & Mount Group Parts Diagram

Comfort Control DD 52" Walk-Behind Mower, 26hp Kawasaki, Rear-Discharge

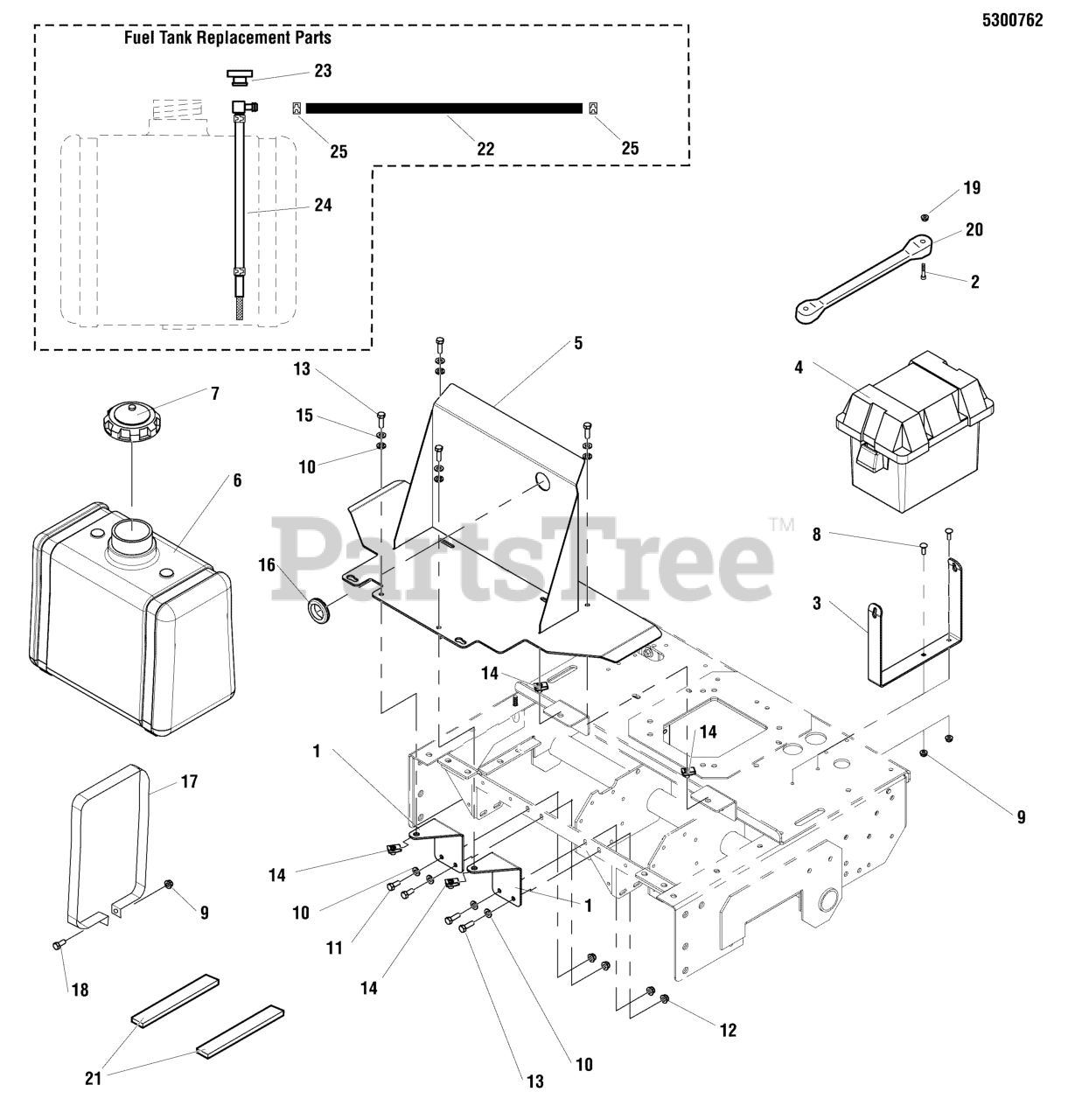

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5402139B

MOUNT, GAS TANK, FRONT

$12.99

$

Usually ships in 2-12 days

0

2

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5402345B

BRACKET, BATTERY BOX

$25.99

$

Usually ships in 2-12 days

0

4

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

5

Ferris 5407262B

WELD, TANK MOUNT

Note: (S/N: 2014601076 & ABOVE)

$216.99

$

Usually ships in 2-12 days

0

5

Ferris 5402142B

WELD, TANK MOUNT

Note: (S/N: 2014601075 & BELOW)

$208.99

$

Usually ships in 2-12 days

0

6

Ferris 5102833

TANK, 5 GAL, W DROP TUBE/VENT
(Superseded to 5102833YP)

Note: (INCLUDES REF. NOS. 23 & 24)

$397.99

$

Usually ships in 2-12 days

0

7

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

8

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

15

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5044694B

STRAP, FUEL TANK

$31.99

$

Usually ships in 2-12 days

0

18

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2"
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5025271

NUT, #10-24, HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

21

Ferris 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

$8.99

$

Usually ships in 2-12 days

0

22

Ferris 5050831X25

HOSE, 1/4 FUEL, 25" LONG
(Superseded to 5050831X25SM)

$19.99

$

Usually ships in 2-12 days

0

23

Ferris 5102833X1

GROMMET

Note: (Grommet for fuel tank 5102833)

$10.99

$

Usually ships in 2-12 days

0

24

Ferris 5101018

FUEL LINE, TOP DRAW W/ SCREEN (SV)

$94.99

$

Usually ships in 2-12 days

0

25

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2" RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0
