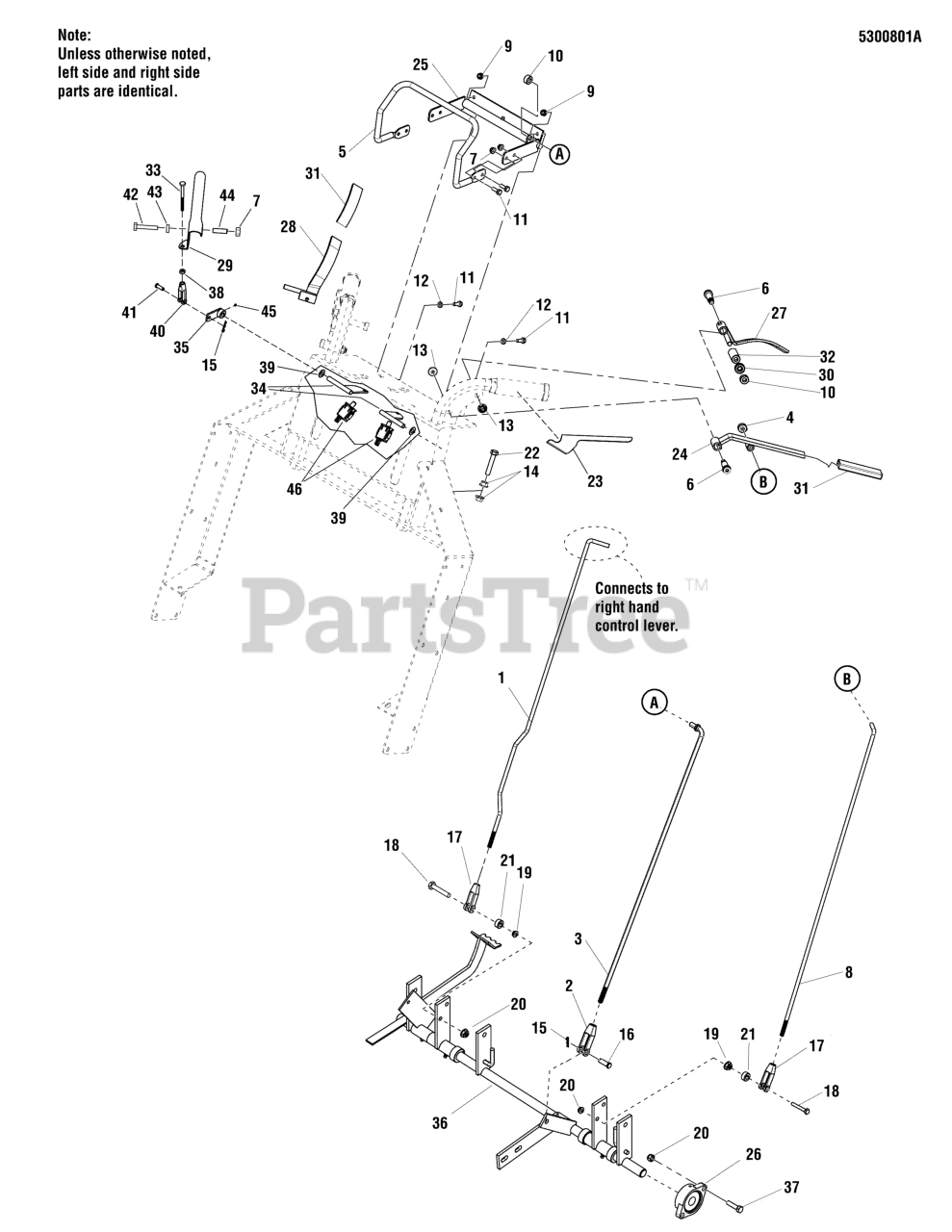

Comfort Control DD (5900678) - Ferris Comfort Control DD 52" Walk-Behind Mower, 19hp Kawasaki Motion Control Group - Upper - S/N: 2013964105 & Above Parts Diagram

Comfort Control DD 52" Walk-Behind Mower, 19hp Kawasaki

Motion Control Group - Upper - S/N: 2013964105 & Above Parts Diagram

  • Title

1a

Ferris 5100763

ROD, CCWKAV25 REVERSE, RH

Note: (S/N: 2014601076 & ABOVE)

$18.99

$

Usually ships in 2-12 days

0

1b

Ferris 5043461

ROD, DDS REVERSE CTRL - RH
(Superseded to 5043461FS)

Note: (S/N: 2014601075 & BELOW)

$29.99

$

Usually ships in 2-12 days

0

2

Ferris 5021171

CLEVIS, 3/8-24, PLASTIC
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

3

Ferris 5100757

ROD, CRUISE CONTROL W/WASHER

$23.99

$

Usually ships in 2-12 days

0

4

Ferris 5020047

SET COLLAR, 5/16"
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

5

Ferris 5100744

BAR, SPEED CONTROL - DUAL DRIVE

$59.99

$

Usually ships in 2-12 days

0

6

Ferris 5025220

SHOULDER BOLT, 1/2" X 1-1/2"
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5043461

ROD, DDS REVERSE CONTROL - LH
(Superseded to 5043461FS)

$29.99

$

Usually ships in 2-12 days

0

9

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

15

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025214X9

PIN, CLEVIS, 3/8" X 1-1/8"
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

18

Ferris 5025011X16

BOLT, 5/16-18 X 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5102463

SPACER, .33 X .50 X .25, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

22

Ferris 5025058X14

BOLT, 3/8-16 X 1-3/4" TFL

$

$

Currently unavailable

23

Ferris 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

$32.99

$

Usually ships in 2-12 days

0

24

Ferris 5443184B

WELD, HAND CONTROLS, DDS
(Superseded to 5043184B)

Note: (INCLUDES REF. NO. 31)

$56.99

$

Usually ships in 2-12 days

0

25

Ferris 5402156B

WELD, SPEED CONTROL, DDS

$202.99

$

Usually ships in 2-12 days

0

26

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

27

Ferris 5402293B

WELD, THUMB CONTROLS, DDS - LH

$64.99

$

Usually ships in 2-12 days

0

28

Ferris 5402292B

WELD, THUMB CONTROLS, DDS - RH

$64.99

$

In Stock, only 2 left!

0

29

Ferris 5104202A

NLA - FLAP, OPS - BLK

$28.99

$

Usually ships in 2-12 days

0

30

Ferris 5021807

BEARING, R6-2RS

$15.99

$

In Stock, only 1 left!

0

31

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

32

Ferris 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

33

Ferris 5102292

ROD, OPC, LINK

$69.99

$

Usually ships in 2-12 days

0

34

Ferris 5406114B

ROD, OPC, FLAP

$26.99

$

Usually ships in 2-12 days

0

35

Ferris 5102300

LINK, OPC, CCW

$30.99

$

Usually ships in 2-12 days

0

36

Ferris 5402184B

WELD, DDS CONTROL SHAFT

$421.99

$

Usually ships in 2-12 days

0

37

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

38

Ferris 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

39

Ferris 5025293

WASHER, 3/8 GR9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

40

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

41

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

42

Ferris 5101215

SPACER, .26 X .38 X 1.250 YZ
(Superseded to 5101215YP)

$8.49

$

Usually ships in 2-12 days

0

43

Ferris 5025010X14

BOLT, 1/4 X 20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

44

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

45

Ferris 5025060X2

SET SCREW, 1/4-20 X 1/4"

$2.49

$

Usually ships in 2-12 days

0

46

Ferris 5101216

SWITCH, PLUNGER, NC, SINGLE POLE, SNAP IN

$15.99

$

Usually ships in 2-12 days

0
