Comfort Control DD (5900553) - Ferris Comfort Control DD 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge Hydraulic Group Parts Diagram

Comfort Control DD 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge

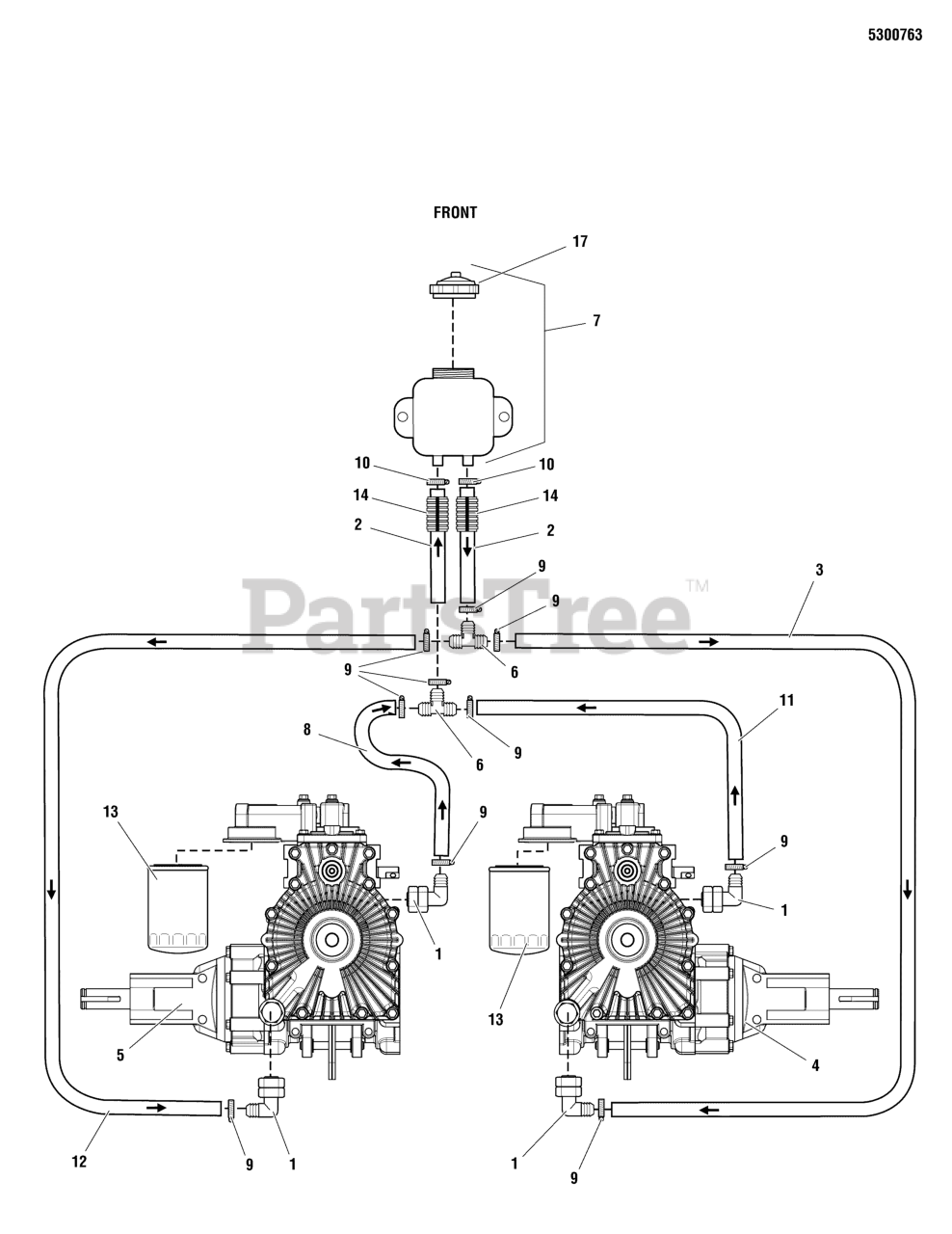

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5021423X1

FITTING, 90 DEG.

$

$

Currently unavailable

2

Ferris 5050857X29

HOSE, 1/2" X 29 PUSH-ON
(Superseded to 5050857X29FS)

$15.99

$

Usually ships in 2-12 days

0

3

Ferris 5050860X30P5

HOSE, 3/8" X 30.5 PUSH-LOCK

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 5022162

TRANSAXLE, 771-101, RIGHT SIDE

Note: (Includes Ref. Nos 1 and 13)

$

$

Currently unavailable

5

Ferris 5022163

TRANSAXLE, 771-102, LEFT SIDE

Note: (Includes Ref. Nos 1 and 13)

$1985.99

$

Usually ships in 2-12 days

0

6

Ferris 5100779

FITTING, HYD, HOSE BARB TEE

$10.99

$

Usually ships in 2-12 days

0

7

Ferris 5100778

RESERVOIR, TANK W/ CAP

$42.99

$

Usually ships in 2-12 days

0

8

Ferris 5050860X10P5

HOSE, 3/8" X 10.5 PUSH-LOCK

$12.99

$

Usually ships in 2-12 days

0

9

Ferris 5021392

CLAMP, HOSE
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

10

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5050860X16P5

HOSE, 3/8" X 16.5 PUSH-LOCK
(Superseded to 5050860X16P5FS)

$16.99

$

Usually ships in 2-12 days

0

12

Ferris 5050860X19P5

HOSE, 3/8" X 19.5 PUSH-LOCK
(Superseded to 5050860X19P5FS)

$22.99

$

Usually ships in 2-12 days

0

13

Ferris 5021068X1

FILTER, TRANSMISSION OIL

$47.99

$

Usually ships in 2-12 days

0

14

Ferris 5050861X18

WIRE LOOM, 5/8 ID

$

$

Currently unavailable

15

Ferris 5022183

HEX SLOTTED NUT

Note: (Not Shown)

$21.99

$

Usually ships in 2-12 days

0

16

Ferris 5022184

KEY, WOODRUFF

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5100778X1

RESERVIOR CAP

Note: (SV)

$20.99

$

Usually ships in 2-12 days

0
