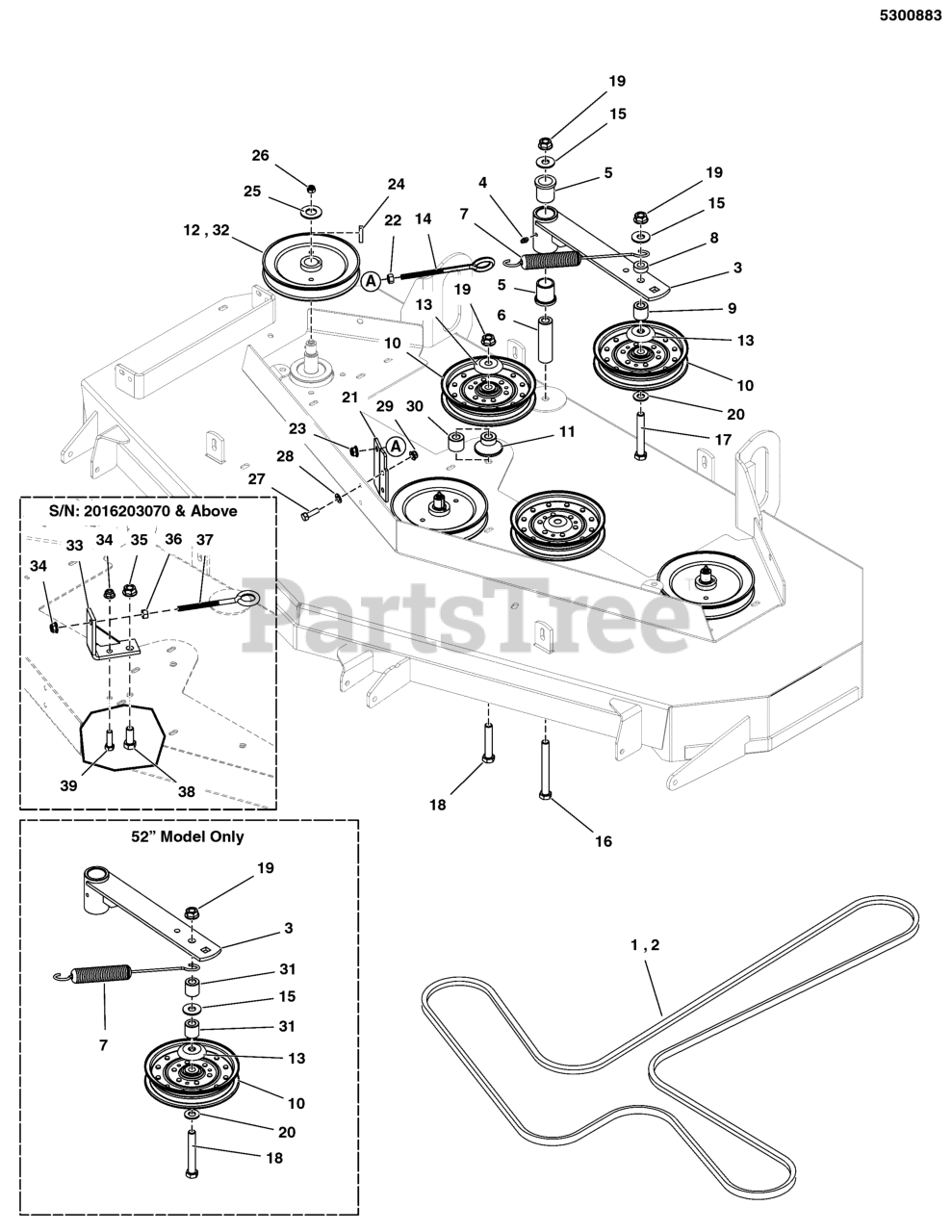

Comfort Control DD (5900553) - Ferris Comfort Control DD 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge 52" & 61" Mower Deck - Belts, Pulleys & Idler Arm (S/N: 2015782585 & Above) Parts Diagram

Comfort Control DD 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge

52" & 61" Mower Deck - Belts, Pulleys & Idler Arm (S/N: 2015782585 & Above) Parts Diagram

  • Title

1

Ferris 5100014

BELT, BP-SEC, 173.90EL, ARAMID, WRPD

Note: (61" Mower Deck)

$160.99

$

In Stock, only 2 left!

0

2

Ferris 5022435

BELT, BP-SEC, 156.906EL, LRG ARAMID, WRPD

Note: (52" Mower Deck)

$154.99

$

Usually ships in 2-12 days

0

3

Ferris 5061305B

WELD, IDLER ARM

$80.99

$

Usually ships in 2-12 days

0

4

Ferris 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

6

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

7

Ferris 5023340

SPRING-EXT, 1.04ODX10.54LGX.148WR , BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

8

Ferris 5044609

SPACER, .52 X 1.00 X .38, CZ
(Superseded to 5044609SM)

Note: (61" Mower Deck)

$6.49

$

Usually ships in 2-12 days

0

9

Ferris 5049777

SPACER, .52 X 1.00 X 1.00
(Superseded to 5049777YP)

Note: (61" Mower Deck)

$11.99

$

Usually ships in 2-12 days

0

10

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

11

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

Note: (61" Mower Deck)

$10.99

$

In Stock, Qty 17

0

12

Ferris 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

Note: (61" Mower Deck)

$74.99

$

Usually ships in 2-12 days

0

13

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

14

Ferris 5102118

EYE BOLT, 3/8-16 X 6.88, 3THRD, 1EYE
(Superseded to 5102118FS)

Note: (Refer to Note: *)

$15.99

$

Usually ships in 2-12 days

0

15

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

17

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

Note: (61" Mower Deck)

$5.99

$

In Stock, only 3 left!

0

18

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

Note: (52" Mower Deck - QTY: 3)

$5.99

$

In Stock, Qty 11

0

19

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

21

Ferris 5409592B

BRACKET, ANCHOR, BELT TENSION, 52/61-RED

Note: (Refer to Note: *)

$

$

Currently unavailable

22

Ferris 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

Note: (Refer to Note: *)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Refer to Note: *)

$4.49

$

In Stock, Qty 20+

0

24

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

25

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

27

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

Note: (Refer to Note: *)

$3.49

$

In Stock, Qty 17

0

28

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

29

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5047142

SPACER, .52 X 1.25 X .70, CZ
(Superseded to 5047142SM)

Note: (52" Mower Deck)

$8.99

$

In Stock, Qty 11

0

31

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

Note: (52" Mower Deck)

$6.49

$

In Stock, only 1 left!

0

32

Ferris 5023178

PULLEY-6.122 OD. X .98 BORE
(Superseded to 5023178SM)

Note: (52" Mower Deck)

$71.99

$

In Stock, only 1 left!

0

33

Ferris 5410580B

WELD, SPRING ANCHOR, CCW-61 - RED

Note: (Refer to Note: **)

$

$

Currently unavailable

34

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Refer to Note: **)

$4.49

$

In Stock, Qty 20+

0

35

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (Refer to Note: **)

$3.49

$

In Stock, Qty 20+

0

36

Ferris 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

Note: (Refer to Note: **)

$2.99

$

Usually ships in 2-12 days

0

37

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

Note: (Refer to Note: **)

$5.99

$

In Stock, Qty 18

0

38

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

Note: (Refer to Note: **)

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: (Refer to Note: **)

$3.99

$

In Stock, Qty 12

0
