Comfort Control DD (5900552) - Ferris Comfort Control DD 48" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge 48" Mower Deck - Pulleys, Belt, & Idler Arm - S/N: 2014115328 & Below Parts Diagram

Comfort Control DD 48" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge

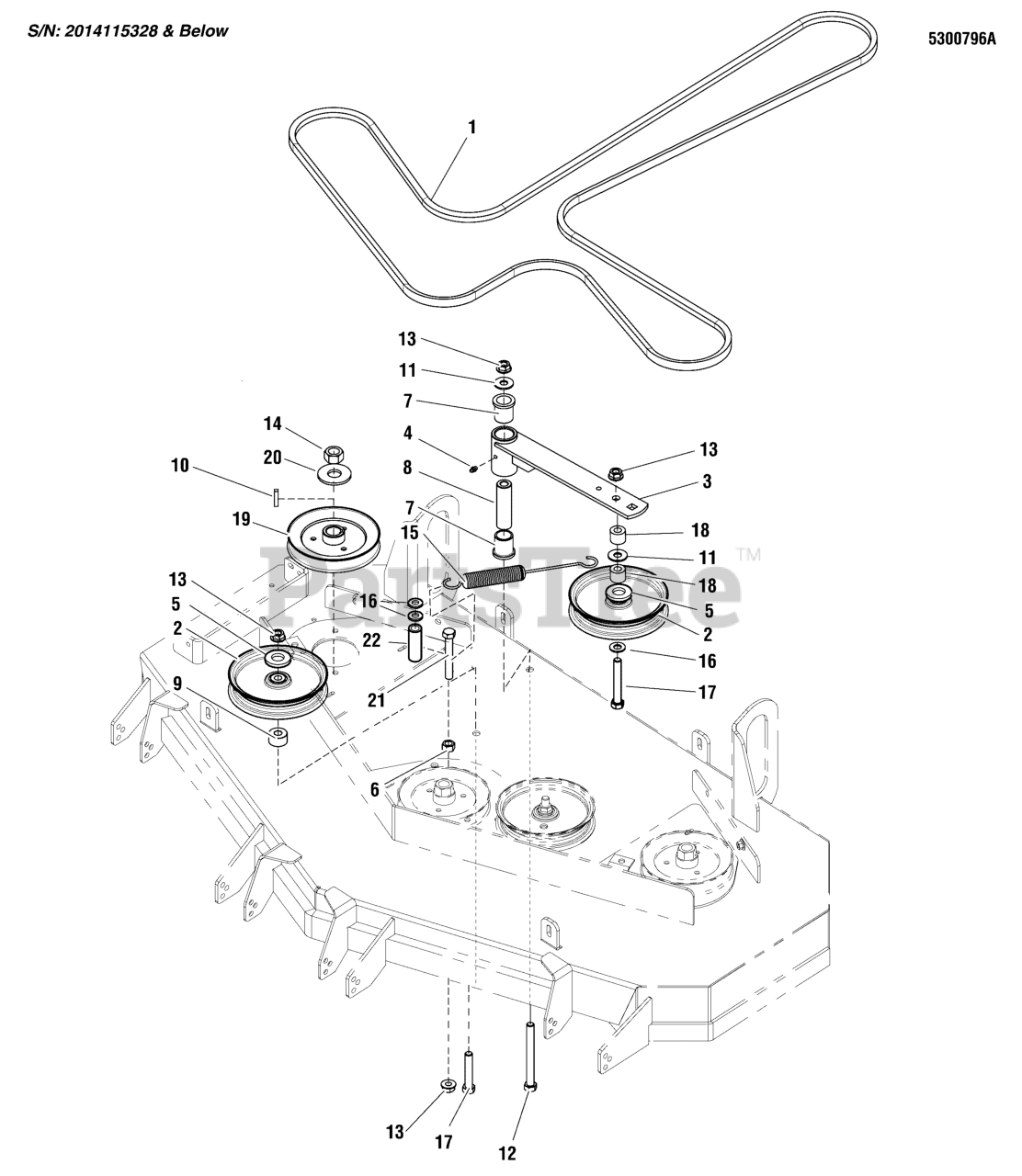

48" Mower Deck - Pulleys, Belt, & Idler Arm - S/N: 2014115328 & Below Parts Diagram

  • Title

1

Ferris 5100814

BELT, BP-SEC, 145.4EL, ARAMID, WRPD

$165.99

$

Usually ships in 2-12 days

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

3

Ferris 5061305B

WELD, IDLER ARM (10.50)

$80.99

$

Usually ships in 2-12 days

0

4

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

5

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

6

Ferris 5025038

NUT, 1/2-13 HEX, YZ
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

7

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

8

Ferris 5061339

SPACER, .52 X .998 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

9

Ferris 5047142

SPACER, .52 X 1.25 X .70, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 8

0

10

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

11

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

13

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

14

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

16

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

17

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

18

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

19

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

In Stock, Qty 17

0

20

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

22

Ferris 5050857X2P25

HOSE, 1/2" PUSH-ON 2.25"
(Superseded to 5050857X2P25FS)

$5.49

$

Usually ships in 2-12 days

0
