CO GT 22H48 A - Poulan Pro Lawn Tractor (2004) Chassis And Enclosures Parts Diagram

Lawn Tractor

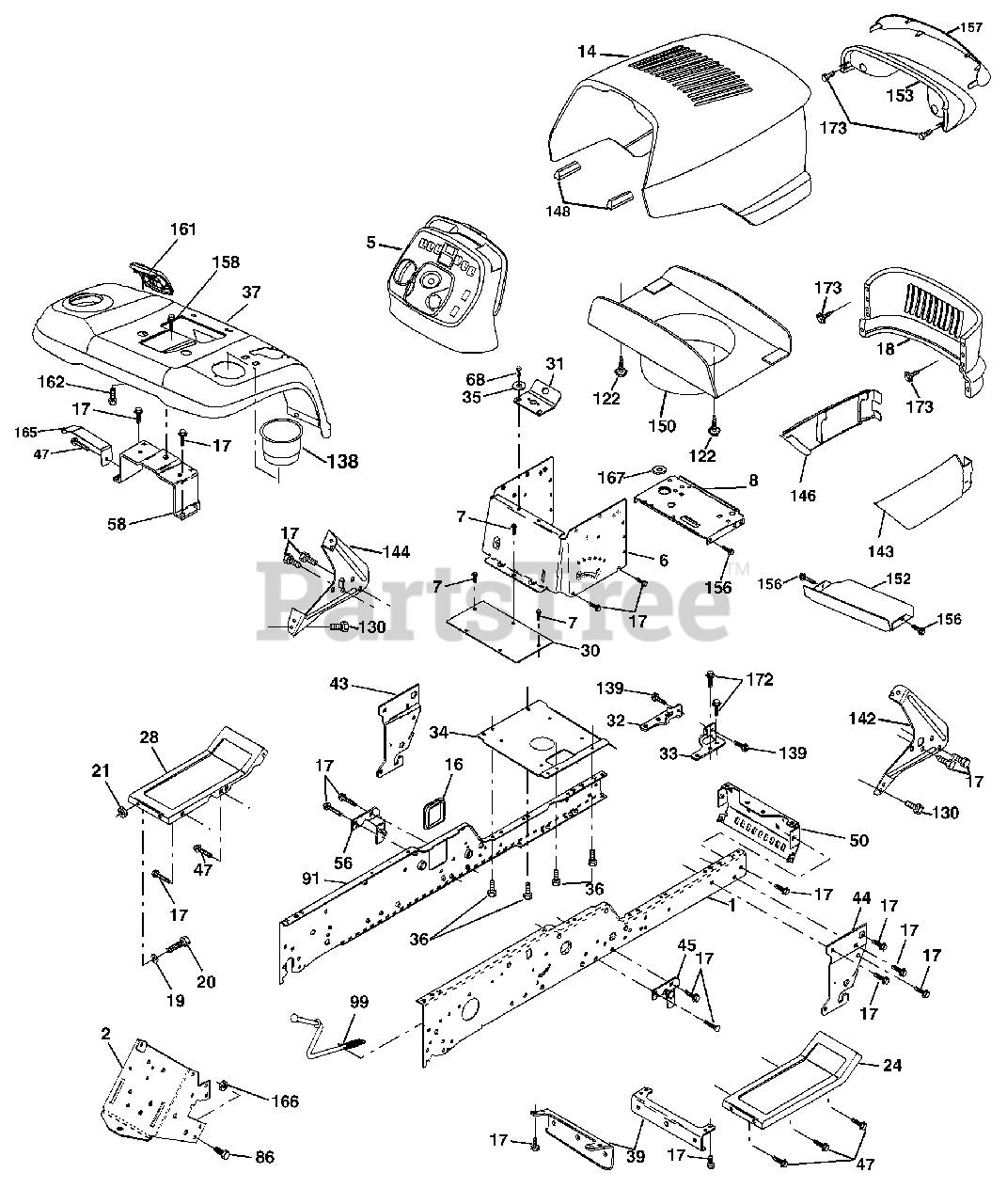

Chassis And Enclosures Parts Diagram

  • Title
1

Electrolux/AYP 180375

Rail, Frame RH
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 175282

Drawbar, Gt
(Superseded to 532175282)

$

$

Not available

5

Electrolux/AYP 187934X428

Dash
(Superseded to 583707701)

$42.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 157882

Dash, Lower Vgt One Piece
(Superseded to 532157882)

$

$

Not available

7

Electrolux/AYP 17720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 184668

Support, Battery

$

$

Not available

14

Electrolux/AYP 175260X428

Hood Asm
(Superseded to 584463701)

$

$

Not available

16

Electrolux/AYP 121794X

Cover, Access
(Superseded to 532121794)

$

$

Not available

17

Electrolux/AYP 17000612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

19

Electrolux/AYP 19131312

Washer 13/32x13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 74780616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 73800600

Nut Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 179717X428

Footrest, RH
(Superseded to 532182508)

$

$

Not available

28

Electrolux/AYP 179716X428

Footrest, LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 145052

Saddle, Hydro
(Superseded to 532145052)

$

$

Not available

31

Electrolux/AYP 161419

Brace, Supt 1-pc VGT
(Superseded to 532161419)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 161327

Bracket, Pivot Chassis Lh
(Superseded to 532161327)

$7.49

$

In Stock, only 4 left!

0

33

Electrolux/AYP 161326

Bracket, Pivot Chassis Rh
(Superseded to 532161326)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 177018

Plate Asm Engine
(Superseded to 532177018)

$37.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

36

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

37

Electrolux/AYP 178510X428

Fender Pnt
(Superseded to 532437111)

$182.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 175278

Bracket, Axle Front
(Superseded to 532175278)

$

$

Not available

43

Electrolux/AYP 136939

Bracket, Spnsn Front Lh
(Superseded to 532136939)

$

$

Not available

44

Electrolux/AYP 136940

Bracket, Spnsn Front Rh
(Superseded to 532136940)

$

$

Not available

45

Electrolux/AYP 176018

Bracket Asm., Susp Chas.Rh
(Superseded to 532176018)

$

$

Not available

47

Electrolux/AYP 17490608

Screw Thdrol. 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 175476

Bracket, Chassis Front
(Superseded to 532175476)

$

$

Not available

56

Electrolux/AYP 176016

Bracket Asm., Susp Chas. Lh
(Superseded to 532176016)

$

$

Not available

58

Electrolux/AYP 183569

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw Thdrol. 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 74780716

Bolt Fin Hex 7/16-14 unc x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 180374

Rail, Frame Lh
(Superseded to 532180374)

$56.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 177143

Rod By Pass
(Superseded to 532177143)

$24.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

130

Electrolux/AYP 171875

Screw Hwhd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 179125X428

Cup Holder
(Superseded to 583710501)

$

$

Not available

139

Electrolux/AYP 171873

Bolt Shoulder 5/16-18 TT
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 161897

Bracket Dash Rh
(Superseded to 532161897)

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 169847X428

Skirt Grille Rh
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 161900

Bracket Dash Lh
(Superseded to 532161900)

$7.49

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 169848X428

Skirt Grille Lh
(Superseded to 532187112)

$

$

Not available

148

Electrolux/AYP 164655

Extrusion Bumpers
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 175352

Duct Heat Hood
(Superseded to 583068401)

$36.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 177956

Shield Browning
(Superseded to 532177956)

$

$

Not available

153

Electrolux/AYP 179761

Lens Asm.
(Superseded to 583125001)

Note: (Includes Key Nos. 153 and 157)

$

$

Not available

156

Electrolux/AYP 17000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

157

Electrolux/AYP 161840

Lens Bar
(Superseded to 583125001)

$

$

Not available

158

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 179612X428

Console Fuel Window
(Superseded to 532181787)

$

$

Not available

162

Electrolux/AYP 142432

Screw Hex 1/4-1/2 unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 183554

Bracket Support Tank
(Superseded to 532183554)

$85.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 73680700

Nut 7/16-14
(Superseded to 873680700)

$2.99

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 184672

Bushing-Snap Nylon
(Superseded to 532184672)

$2.99

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

173

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0
