CO 24H48ST A - Poulan Pro Lawn Tractor (2004) Chassis And Enclosures Parts Diagram

Lawn Tractor

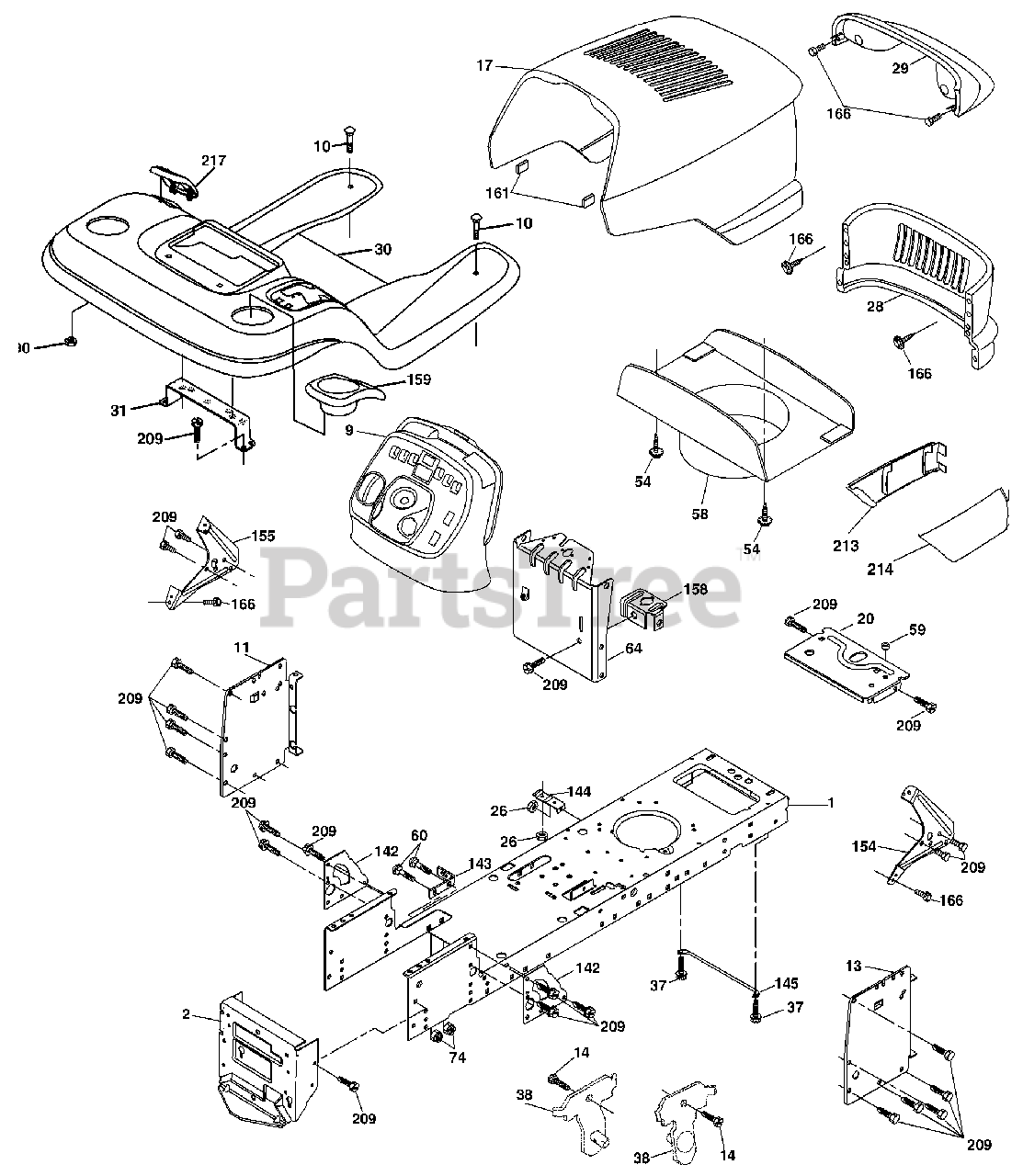

Chassis And Enclosures Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 187934X428

Dash
(Superseded to 583707701)

$42.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt RDHD SQNK 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 167203

Panel, Dash, LH
(Superseded to 532167203)

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 188702X010

Panel, Dash, RH
(Superseded to 532194975)

$27.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 175260X428

Hood Assembly
(Superseded to 584463701)

$

$

Not available

20

Electrolux/AYP 162026

Plate Battery
(Superseded to 532162026)

$

$

Not available

26

Electrolux/AYP 73800600

Locknut, Hex, with Insert 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

29

Electrolux/AYP 161840

Lens, Bar
(Superseded to 583125001)

$

$

Not available

30

Electrolux/AYP 188572X428

Fender/Footrest
(Superseded to 583714001)

$267.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

Bracket, Fender/Support
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw, Thdrol. 5/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

58

Electrolux/AYP 175351

Duct Hood
(Superseded to 532175351)

$40.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 187495

Bushing 1.375 OD
(Superseded to 532187495)

$6.49

$

In Stock, only 1 left!

0

60

Electrolux/AYP 72140606

Bolt Rdhd Sqnk 3/8-16 unc x 3/4
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 174997

Dash Lower
(Superseded to 532174997)

$30.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 124346X

Nut Self Thrd Wshd 1/4 Zinc
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

142

Electrolux/AYP 175702

Plate Reinforcement
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 186689

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Electrolux/AYP 175582

Bracket Footrest
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

154

Electrolux/AYP 161897

Bracket Dash Rh
(Superseded to 532161897)

$7.49

$

Usually ships in 3-10 days

0

155

Electrolux/AYP 161900

Bracket Dash Lh
(Superseded to 532161900)

$7.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 162037

Parking Brake Bkrt
(Superseded to 532162037)

$

$

Not available

159

Electrolux/AYP 179950X428

Cupholder
(Superseded to 583701001)

$9.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 164655

Bumper Extrusion .600 x 3.50
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

213

Electrolux/AYP 169847X428

Skirt Grille RH
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0

214

Electrolux/AYP 169848X428

Skirt Grille LH
(Superseded to 532187112)

$

$

Not available

217

Electrolux/AYP 179132X418

Console Fuel Window
(Superseded to 532179132)

$9.49

$

Usually ships in 3-10 days

0
