CO 18H42ST A - Poulan Pro Lawn Tractor (2004) Lift Assembly Parts Diagram

Lawn Tractor

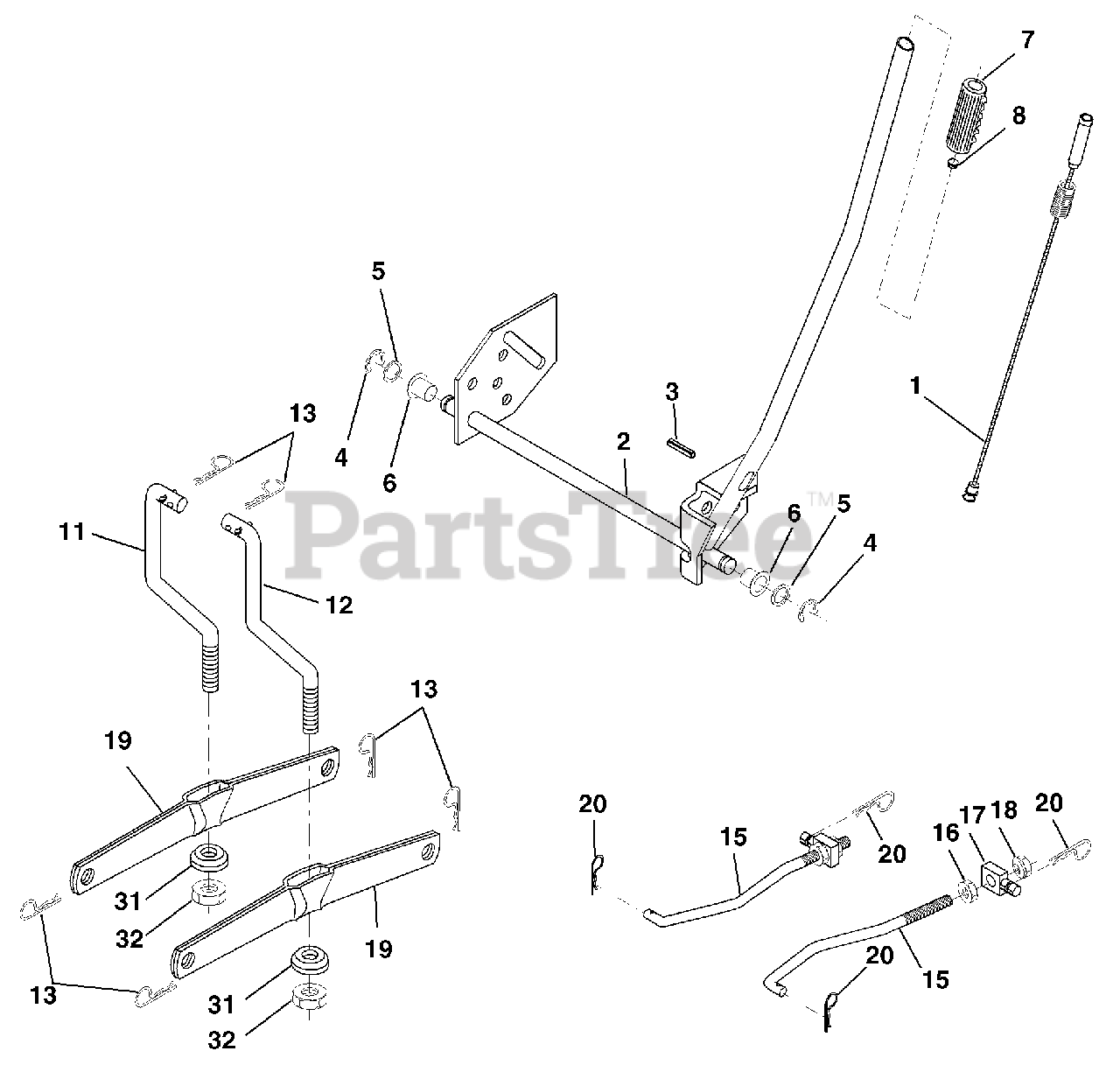

Lift Assembly Parts Diagram

  • Title

1

Electrolux/AYP 159461

Washer Asm Inner Spring W/Plunger
(Superseded to 532159461)

$15.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 159476

Shaft Asm. Lift
(Superseded to 532159476)

$

$

Not available

3

Electrolux/AYP 188822

Pin Groove
(Superseded to 583172901)

$7.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000002

E Ring #5133-62

$

$

Not available

5

Electrolux/AYP 19211621

Washer 21/32 x 1 x 21 Ga.
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

Bearing Nylong
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 125631X

Grip Handle Fluted
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124526X

Button Plunger

$

$

Not available

11

Electrolux/AYP 139865

Link Asm Lift L.H.
(Superseded to 532151141)

$26.99

$

Usually ships in 3-10 days

0

12

Murray 139866

Link Asm Lift R.H.
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

Retainer Spring

$

$

Not available

15

Electrolux/AYP 173288

Link Front
(Superseded to 532173288)

$13.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73350800

Nut Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 175689

Trunnion Blk Zinc
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Nut Lock w/Wsh 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 139868

Arm Suspension Mower
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 169865

Bearing, Pvt. Lift
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

Nut Crownlock 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
