CO 185H42ST A - Poulan Pro Lawn Tractor (2004) Lift Assembly Parts Diagram

Lawn Tractor

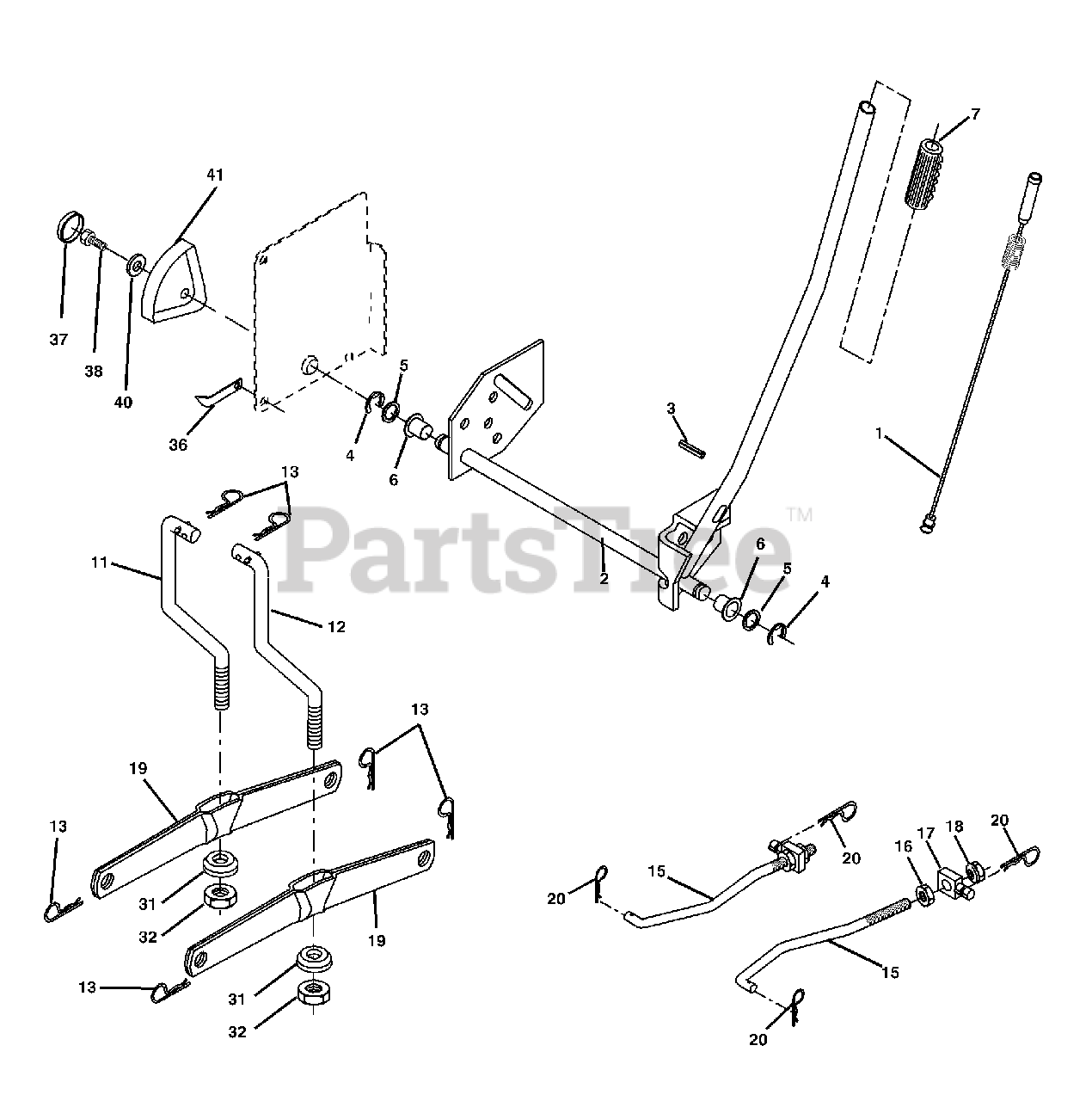

Lift Assembly Parts Diagram

  • Title
1

Electrolux/AYP 179504

Plunger Assembly
(Superseded to 583092601)

$

$

Not available

2

Electrolux/AYP 159476

Shaft Assembly, Lift
(Superseded to 532159476)

$

$

Not available

3

Electrolux/AYP 188822

Pin, Groove
(Superseded to 583172901)

$7.49

$

In Stock, only 1 left!

0

$

$

Not available

5

Electrolux/AYP 19211621

Washer 21/32 x 1 x 21 Ga.
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 175830

Grip, Handle, Fluted
(Superseded to 532175830)

$10.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 139865

Link, Lift, L.H.
(Superseded to 532151141)

$26.99

$

Usually ships in 3-10 days

0

12

Murray 139866

Link, Lift, R.H.
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

Retainer Spring

$

$

Not available

15

Electrolux/AYP 173288

Link Front Sus.
(Superseded to 532173288)

$13.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 73350800

Nut Hex Jam 1/2-13 unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 175689

Trunnion Front Susp.
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Nut Lock w/Wsh 1/2-13 unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 139868

Arm Asm. Suspension Mower
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 169865

Bearing Pivot Lift
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

Nut Crownlock 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 155097

Pointer Height Indicator
(Superseded to 532155097)

$

$

Not available

37

Electrolux/AYP 123935X

Plug Hole
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 17060516

Screw 5/16-18 x 1
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19112410

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 155098

Indicator Height Stlt
(Superseded to 532155098)

$6.49

$

Usually ships in 3-10 days

0
