CO 18542ST C - Poulan Pro Lawn Tractor (2004) Engine Parts Diagram

Lawn Tractor

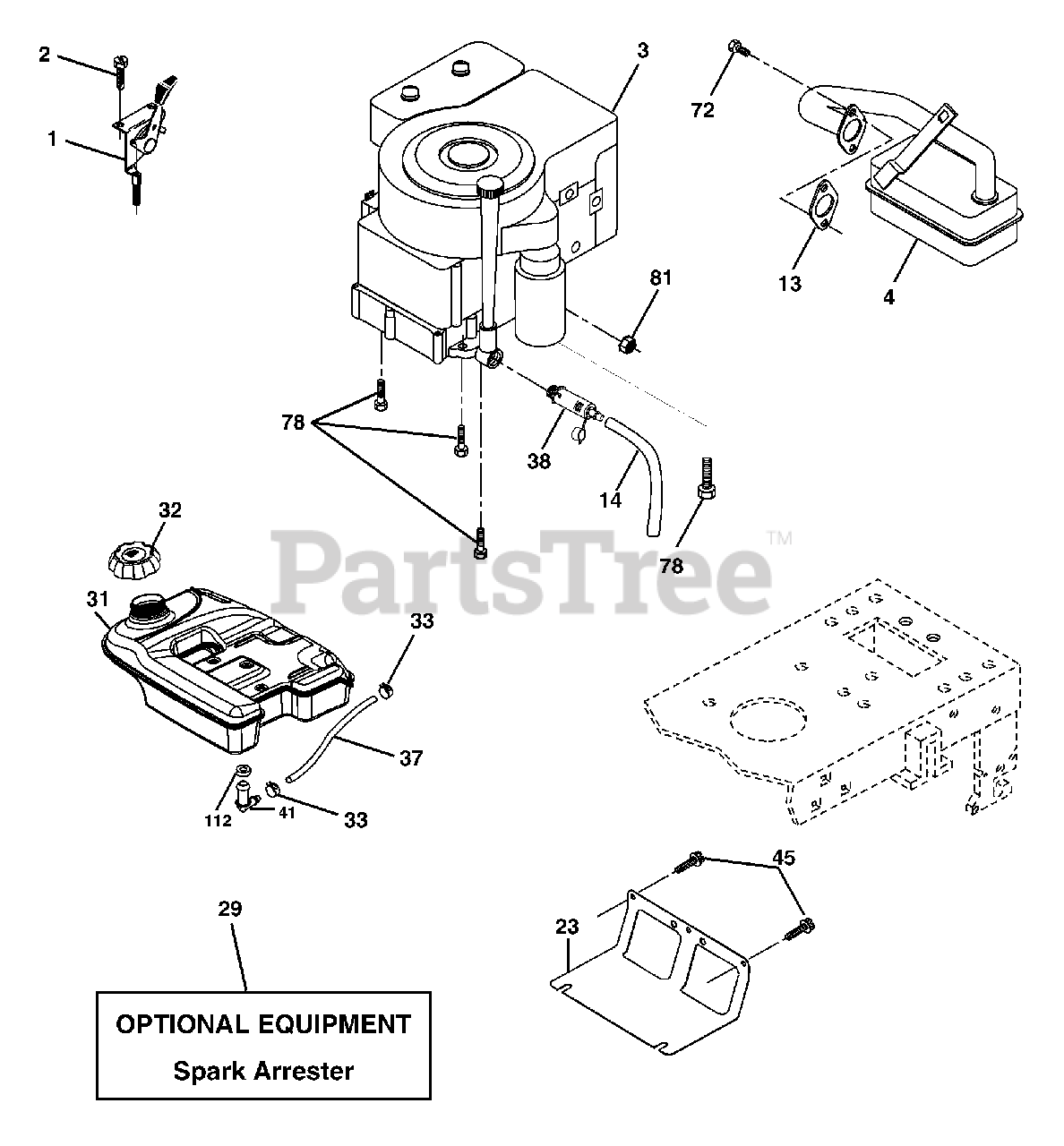

Engine Parts Diagram

  • Title

1

Electrolux/AYP 176636X505

Control Throttle/Choke
(Superseded to 583696601)

$27.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 171875

Screw Hwhd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

3

Engine, Briggs Model 31P777

Note: (Order parts from engine Manufacturer)

$

$

Not available

4

Electrolux/AYP 137352

Muffler
(Superseded to 532137352)

$45.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 165291

Muffler Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 148456

Tube Drain oil
(Superseded to 532148456)

$6.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 169837

Shield Heat
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 179022

Tank Fuel 4.0 Rear
(Superseded to 532179022)

$

$

Not available

32

Electrolux/AYP 179124X428

Cap Asm Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp Hose Black
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 8543R

Line Fuel
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

41

Electrolux/AYP 139277

Stem Tank Fuel
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

45

Electrolux/AYP 17000612

Screw Hexwsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

72

Electrolux/AYP 183906

Screw 5/16-18 x 1
(Superseded to 532183906)

$6.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

112

Electrolux/AYP 3645J

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0
