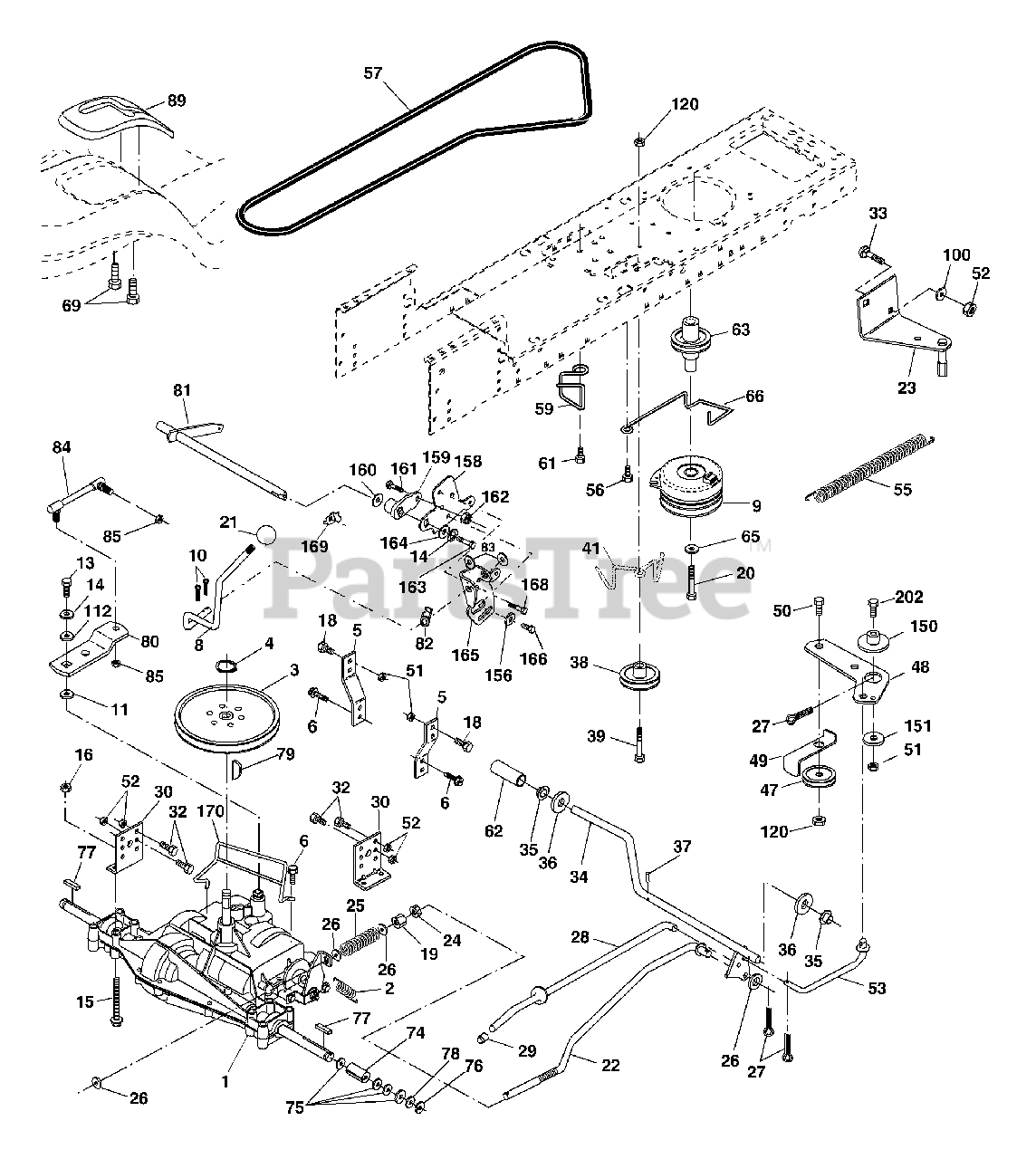

CO 18542ST A - Poulan Pro Lawn Tractor (2004) Ground Drive Parts Diagram

Lawn Tractor

Ground Drive Parts Diagram

  • Title

1

Transaxle Peerless 206-545C

Note: (See Breakdown)

$

$

Not available

2

Electrolux/AYP 146682

Spring, Return, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 123666X

Pulley, Transaxle
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000028

Ring, Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

5

Electrolux/AYP 121520X

Strap, Torque
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 165866

Rod Shifter Fender STLT
(Superseded to 532165866)

$

$

Not available

9

Electrolux/AYP 160889

Clutch
(Superseded to 532160889)

$284.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

Pin, Cotter
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105701X

Washer, Shift Plate
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74550412

Bolt 1/4-28 UNF W/Patch Gr. 8
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 74490544

Bolt Hex FLGHD 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

Nut Lock Hx W/Ins 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 7478616

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5

$

$

Not available

19

Electrolux/AYP 73350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 150280

Bolt 7/16-20 x 4-1/4 Gr. 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 106933X

Knob
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 130804

Rod, Brake
(Superseded to 532130804)

$31.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 171258

Bracket Anti-Rotation
(Superseded to 532171258)

$12.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 73800600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 106888X

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 175765

Rod, Parking Brake
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 71673

Cap, Parking Brake
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 169592

Bracket, Transaxle
(Superseded to 532169592)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74760512

Bolt
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 72140506

Bolt Rdhd Sqnk 5/16-18 unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 175578

Shaft Assembly, Foot Pedal
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

Washer
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Roll Pin

$

$

Not available

38

Electrolux/AYP 179114

Pulley, Composite, Flat
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 72110622

Bolt Rdhd 3/8-16 unc x 2-3/4
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

41

Electrolux/AYP 175556

Keeper, Belt, Idler
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

47

Murray 127783

Pulley, Idler, V-Groove, Plastic

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drv Stl
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut Crown Lock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

Nut Crown Lock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring, Clutch Return
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

56

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 130801

V-Belt, Ground Drive
(Superseded to 532138255)

$39.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 169691

Keeper, Belt, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 123533X

Cover, Pedal
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 175414

Pulley, Engine
(Superseded to 532175414)

$80.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 10040700

Washer
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper, Belt, Engine, Fool Proof
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4-1/2 unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 137057

Spacer, Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

Key, Square 2.0 x .1845/1865
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

78

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

79

Murray 2228M

Key Woodruff

$

$

Not available

80

Electrolux/AYP 145090

Arm, Shift
(Superseded to 532145090)

$7.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 165593

Shaft Asm Cross Tapered 20
(Superseded to 583016401)

$30.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 165711

Spring, Torsion
(Superseded to 532165711)

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 166231

Link Transaxle
(Superseded to 597068804)

$

$

Not available

85

Electrolux/AYP 150360

Nut, Nylock
(Superseded to 532150360)

$

$

Not available

89

Electrolux/AYP 188310X428

Console, Shift, STLT
(Superseded to 532188310)

$

$

Not available

96

Electrolux/AYP 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

100

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

112

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 127285X

Strap Torque 90 Degrees
(Superseded to 532127285)

$

$

Not available

120

Murray 73900600

Nut Lock Flg. 3/8-16 unc

$

$

Not available

150

Electrolux/AYP 175456

Spacer Retainer
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer Srrted 5/16 ID x 1.125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 183900

Hub Shift
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20Unc x 1 Gr. 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 17490510

Screw 5/16-18 x 5/8 TT Yellow
(Superseded to 817490510)

$4.99

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening Lt
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 187414

Keeper Belt Transaxle Gear
(Superseded to 532187414)

$14.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 169613

Nyliner Snap-In 5/8 ID
(Superseded to 532169613)

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 169593

Washer Nyliner 7/8 ID x .105 Hd
(Superseded to 532169593)

$11.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 72110614

Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0
