CMZAS9JBC (41AJBC-C949) - Craftsman Brush Cutter Attachment General Assembly Parts Diagram

Brush Cutter Attachment

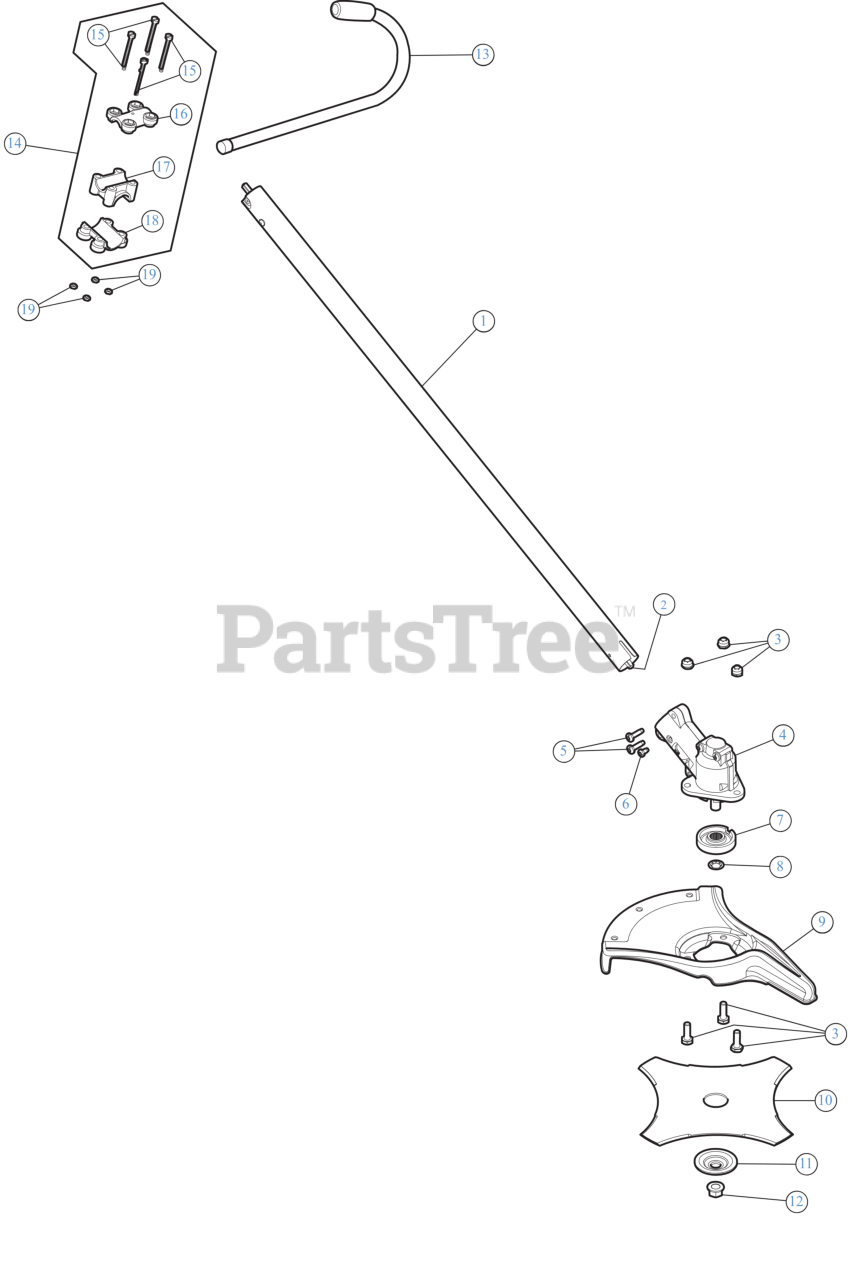

General Assembly Parts Diagram

  • Title

1

MTD 841-036085S

LOWER SHAFT

$44.99

$

In Stock, only 2 left!

0

2

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

3

MTD 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

4

MTD 753-11244

GEARBOX

Note: (Incl. 5-6)

$22.99

$

Usually ships in 3-6 days

0

5

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

6

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

7

MTD 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 2 left!

0

8

MTD 753-04348

PALNUT:3/8" DIAM

$6.99

$

In Stock, only 3 left!

0

9

MTD 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

10

MTD 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, only 4 left!

0

11

MTD 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 2 left!

0

12

MTD 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

13

MTD 791-181099

HANDLE ASSEMBLY-JAY

$

$

Not available

14

MTD 791-683295

HANDLE BRACKET ASSEMBLY

Note: (Incl. 15-18)

$45.99

$

Usually ships in 3-6 days

0

15

MTD 791-181811

CLAMP SCREW

$4.99

$

Usually ships in 3-6 days

0

16

MTD 791-181812

HANDLE UPPER CLAMP

$8.99

$

Usually ships in 3-6 days

0

17

MTD 791-181813

HANDLE MIDDLE CLAMP

$12.99

$

Usually ships in 3-6 days

0

18

MTD 791-181814

HANDLE LOWER CLAMP

$8.99

$

Usually ships in 3-6 days

0

19

MTD 791-181815

NUT-CLAMP

$4.49

$

Usually ships in 3-6 days

0

MTD 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (Incl. 11 & 12)

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

TOOL-LOCKING ROD

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0

MTD 791-180194

CLAMP, SHOULDER ST

$

$

Not available

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0
