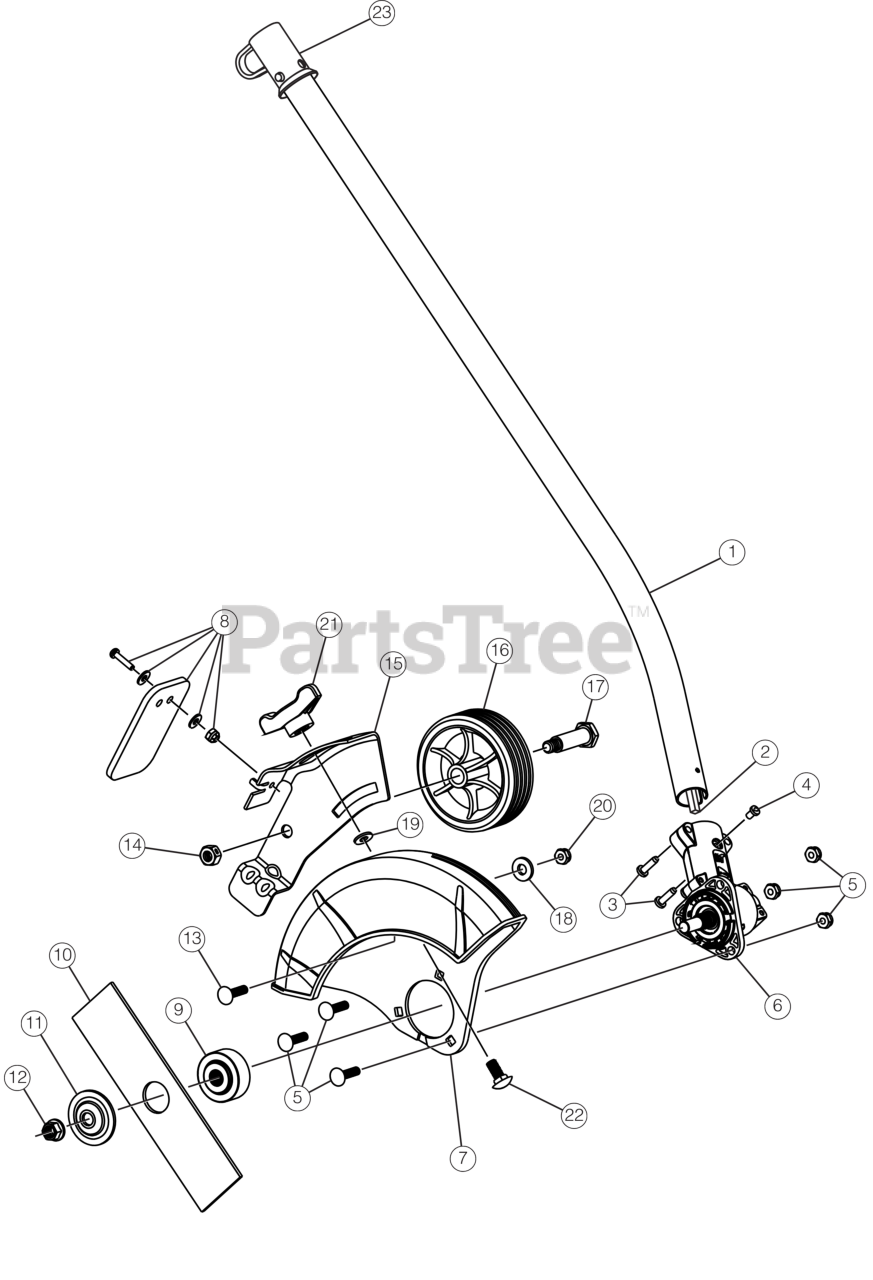

CMZAS4JED (41AJED-C949) - Craftsman Edger Attachment General Assembly Parts Diagram

Edger Attachment

General Assembly Parts Diagram

  • Title

1

MTD 753-11152

BOOM ASSEMBLY

$8.99

$

Usually ships in 3-6 days

0

2

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

3

MTD 791-182195

SCREW #10-24X11/16 T-25

$7.49

$

In Stock, only 1 left!

0

4

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

Usually ships in 3-6 days

0

5

MTD 753-1217

HDWR ASM:GUARD MT

$3.49

$

Usually ships in 3-6 days

0

6

MTD 753-04258

GRBX ASSEMBLY

$108.99

$

In Stock, only 1 left!

0

7

MTD 753-08019

GUARD

$7.99

$

In Stock, only 3 left!

0

8

MTD 753-08020

DEFLECTOR W/HDW

$3.99

$

In Stock, Qty 11

0

9

MTD 792-10785

SPACER

$2.99

$

In Stock, only 2 left!

0

10

MTD 791-613223B

EDGER BLADE
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

11

MTD 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 4 left!

0

12

MTD 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

13

MTD 753-04270

BOLT:WHEEL MT BRACKET

$4.99

$

Usually ships in 3-6 days

0

14

MTD 712-3000

LOCK NUT 3/8-16

$4.49

$

In Stock, Qty 9

0

15

MTD 753-08021

BRACKET GUARD

$10.99

$

In Stock, only 2 left!

0

16

MTD 6356

WHEEL 3.75" (WHITE)

$5.49

$

Usually ships in 3-6 days

0

17

MTD 5556

SHOULDER SCREW 0.498x1.494 3/8-16

$1.99

$

In Stock, only 1 left!

0

18

MTD 3010

FLAT WASHER

$2.49

$

Usually ships in 3-6 days

0

19

MTD 736-04107

WASHER .406X1.0X.095

$4.49

$

In Stock, only 1 left!

0

20

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

21

MTD 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, only 2 left!

0

22

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

23

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

MTD 791-613226

TOOL-LOCKING ROD

$14.99

$

In Stock, only 1 left!

0
