CMXGZAMA40024 (19A40024791) - Craftsman 42" 3x Snow Thrower Attachment (2021) Frame Assembly Parts Diagram

42" 3x Snow Thrower Attachment

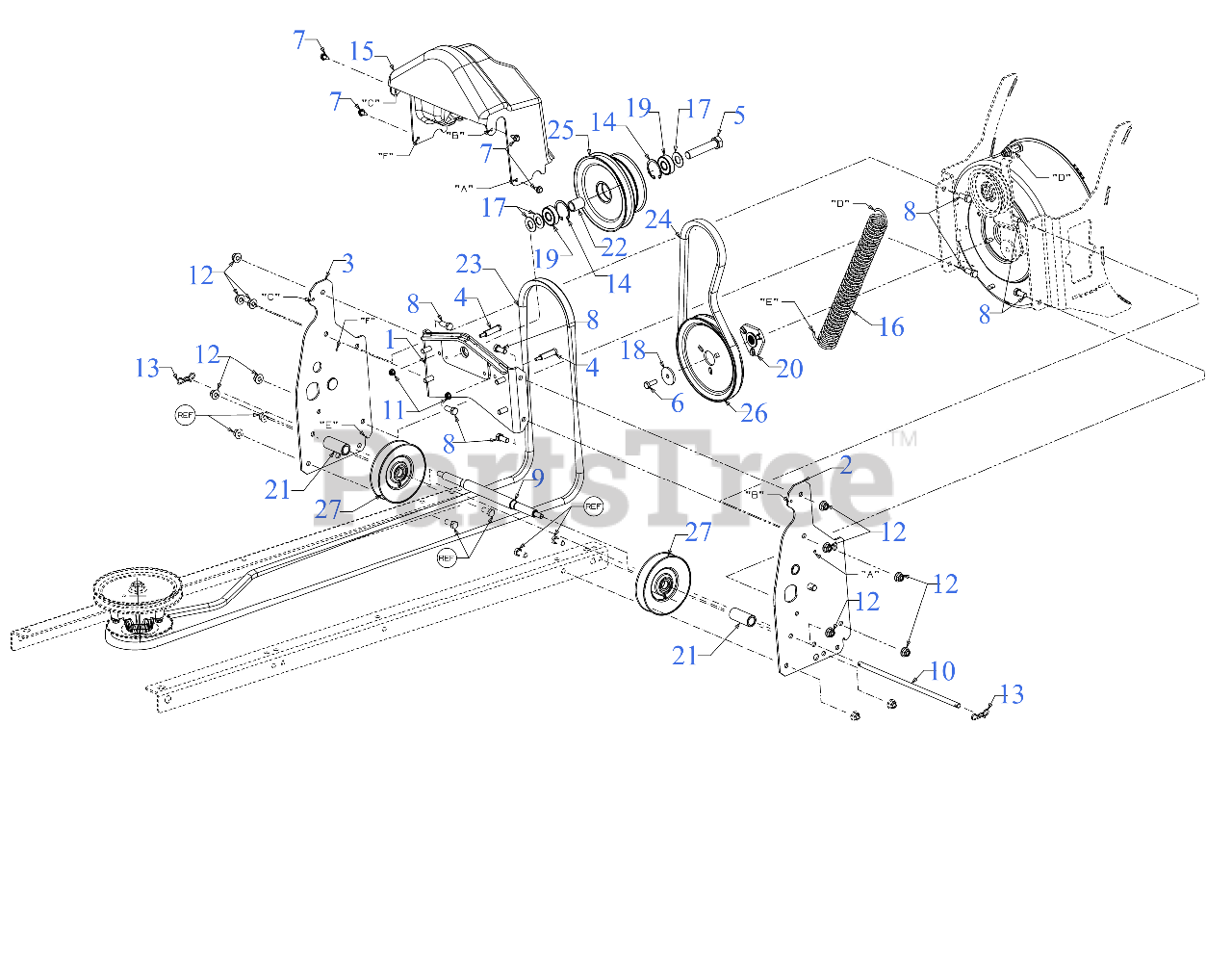

Frame Assembly Parts Diagram

  • Title
1

MTD 603-05172-0637

DOUBLE PULLEY BRACKET (POWDER BLACK)

$188.99

$

Usually ships in 3-6 days

0

2

MTD 684-05080-0637

FRAME BRACKET (RH) (POWDER BLACK)

$144.99

$

Usually ships in 3-6 days

0

3

MTD 684-05081-0637

FRAME BRACKET (LH) (POWDER BLACK)

$129.99

$

Usually ships in 3-6 days

0

4

MTD 710-05023

SHOULDER BOLT

$2.99

$

In Stock, only 2 left!

0

5

MTD 710-0923

SCREW 5/8-18X3.0 GR5

$9.99

$

In Stock, only 1 left!

0

6

MTD 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 1 left!

0

7

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3001

SCREW 3/8-16 x .880 GR5

$7.49

$

In Stock, Qty 9

0

9

MTD 711-06298

MULE DRIVE SHAFT

$45.99

$

Usually ships in 3-6 days

0

10

MTD 711-06303

BELT KEEPER ROD

$24.99

$

Usually ships in 3-6 days

0

11

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

$3.99

$

In Stock, Qty 20+

0

13

MTD 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

14

MTD 916-3020

INTERNAL SNAP RING

$4.99

$

In Stock, Qty 20+

0

15

MTD 931-10414

BELT COVER

$203.99

$

Usually ships in 3-6 days

0

16

MTD 732-05205

EXTENSION SPRING 1.6 OD x 7.584

$31.99

$

Usually ships in 3-6 days

0

17

MTD 736-0237

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 11

0

19

MTD 941-0524A

BALL BEARING

$23.99

$

In Stock, Qty 20+

0

20

MTD 748-04067A

ADAPTER PULLEY .75 DIA W/PINS

$26.99

$

Usually ships in 3-6 days

0

21

MTD 750-06246

IDLER PULLEY SPACER

$10.99

$

Usually ships in 3-6 days

0

22

MTD 750-06251

DOUBLE PULLEY SPACER

$9.99

$

Usually ships in 3-6 days

0

23

MTD 954-05062

V-BELT B SEC x 138.4

$135.99

$

In Stock, only 4 left!

0

24

MTD 954-05063

V-BELT B SEC x 39.98

$52.99

$

In Stock, only 4 left!

0

25

MTD 756-05079

DOUBLE V-PULLEY

$117.99

$

Usually ships in 3-6 days

0

26

MTD 756-05082

V-PULLEY

$63.99

$

Usually ships in 3-6 days

0

27

MTD 756-05084

V-IDLER PULLEY

$54.99

$

Usually ships in 3-6 days

0
