CMXGZAMA30049 (19A30049791) - Craftsman 54" Xtreme S Mulch Kit (2021) General Assembly Parts Diagram

54" Xtreme S Mulch Kit

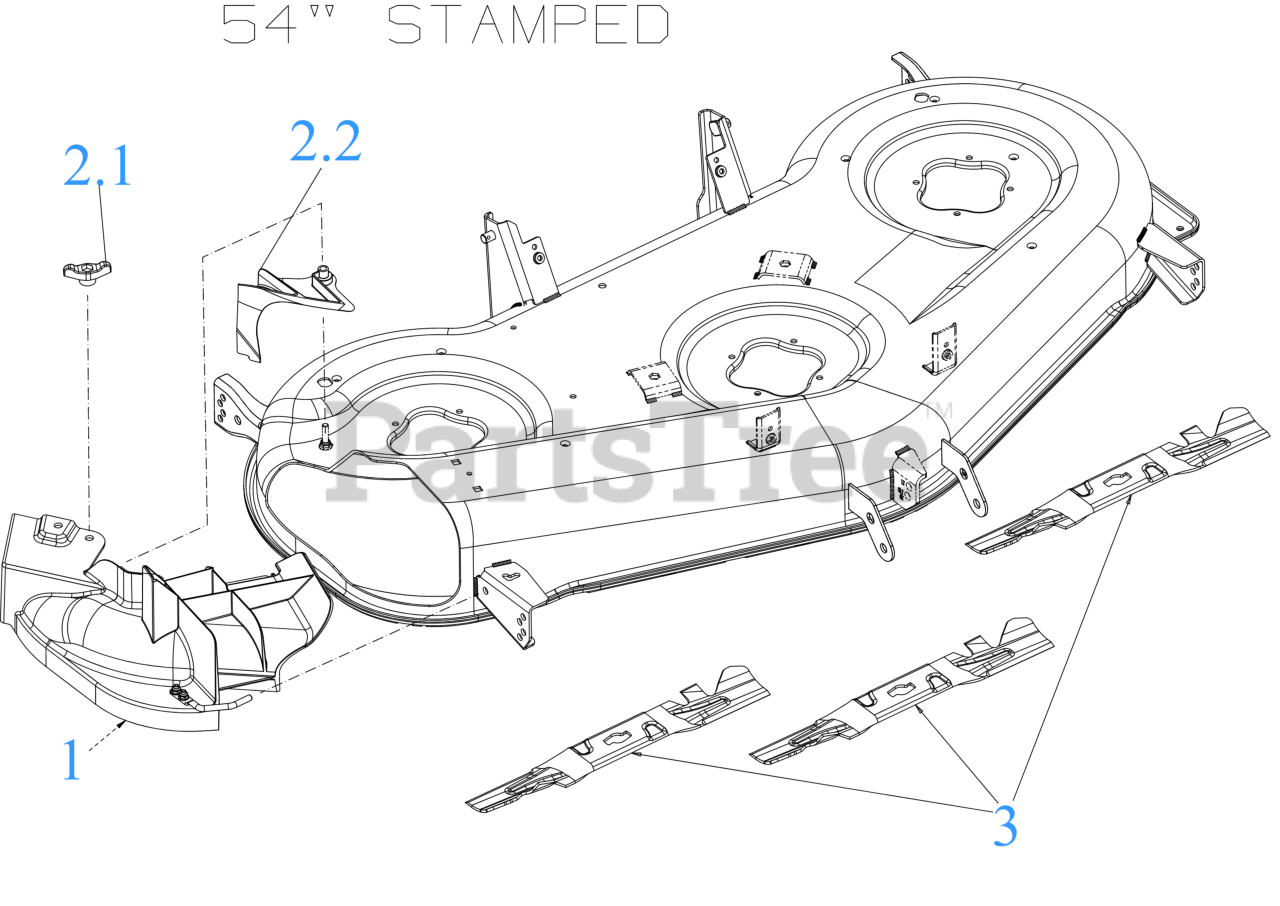

General Assembly Parts Diagram

  • Title
1

MTD 631-05178

MULCH PLUG ASSEMBLY

$50.99

$

In Stock, only 2 left!

0

1

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

1

MTD 747-06348

MULCH PLUG MOUTING ROD

$13.99

$

In Stock, only 2 left!

0

1

MTD 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

1

MTD 736-0463

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

2.1

MTD 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

2.2

MTD 731-10133

CHUTE ADAPTER

$18.99

$

In Stock, only 3 left!

0

3

MTD 742P05086-X

18.611" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$35.99

$

In Stock, only 3 left!

0
