CMXGWAS021028 - Craftsman 3,100 PSI Pressure Washer Main Unit Parts Diagram

3,100 PSI Pressure Washer

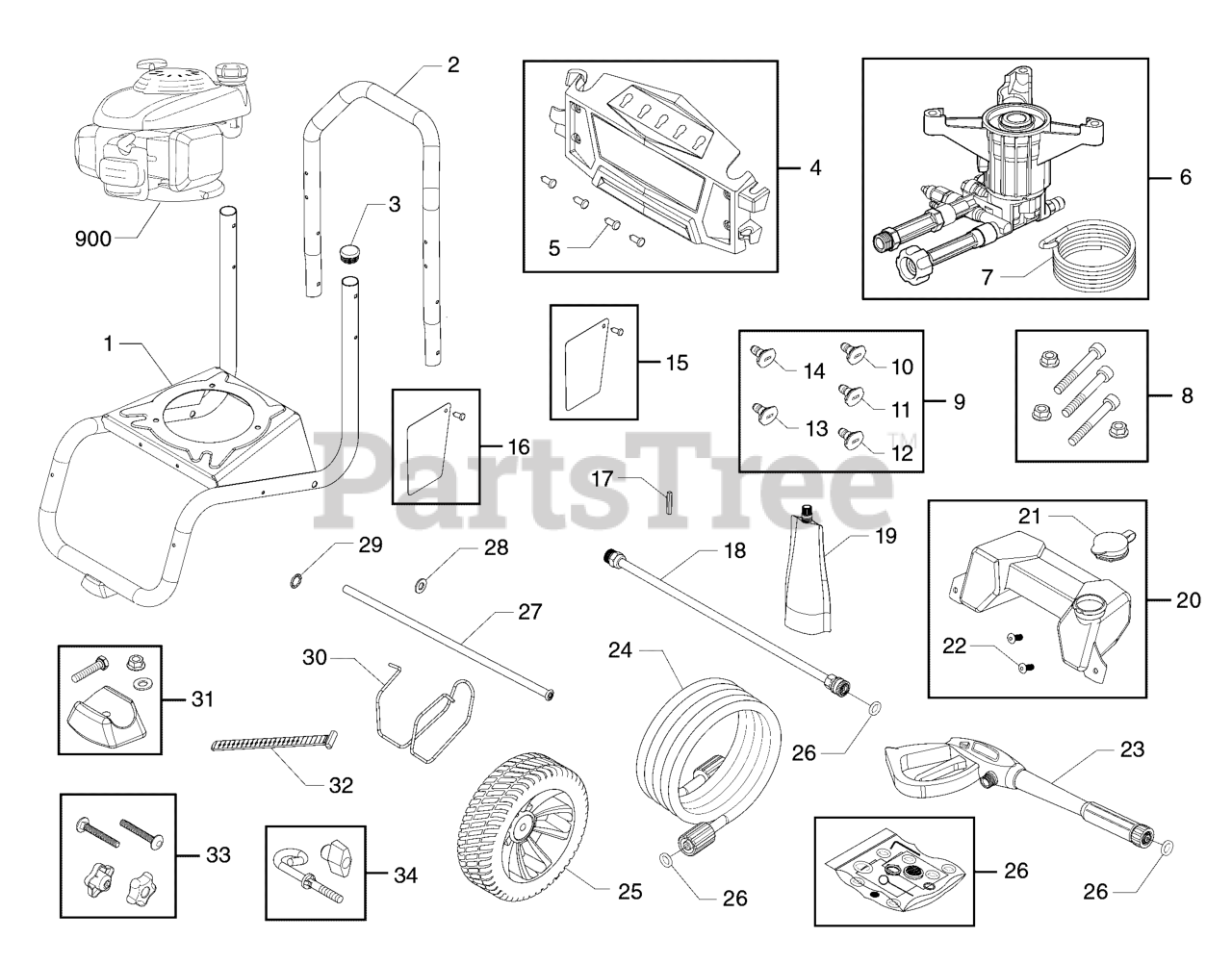

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84001724

BASE

Note: (Includes Item 3)

$245.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84001718

HANDLE

$83.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 84002540

KIT-BILLBOARD

$76.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 706607

PUMP

$345.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 315033GS

KIT, Hardware, Pump Mounting

$7.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 708724

KIT-QC NOZZLE

$27.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983AAGS

NOZZLE, QC, Red

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 195983UGS

Nozzle, QC, Green

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 707480

NOZZLE, QC, WHITE

$8.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 706518

NOZZLE, QC Cyan

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706517

NOZZLE, QC Magenta
(Superseded to 706155)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84002531

KIT-TAG, WARNING

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84002541

KIT-TAG, WARNING, FRNCH

$25.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 11

0

19

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 84002543

KIT-CHEMICAL TANK

$44.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84001722

CAP

$5.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 708807

GUN
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84002542

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 84001727

WHEEL

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 314957GS

AXLE

$15.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 20+

0

29

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

30

Briggs & Stratton 84001723

WIREFORM

$15.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 707979

MOUNT-VIBRATION

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84001717

STRAP

$6.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, Qty 6

0

34

Briggs & Stratton 84001719

KIT-GUIDE ROPE

$12.99

$

Usually ships in 2-12 days

0

900

ENGINE, Honda, GCV190, VS, Red, 50

Note: (Refer to Note:*)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
